SG Armaturen

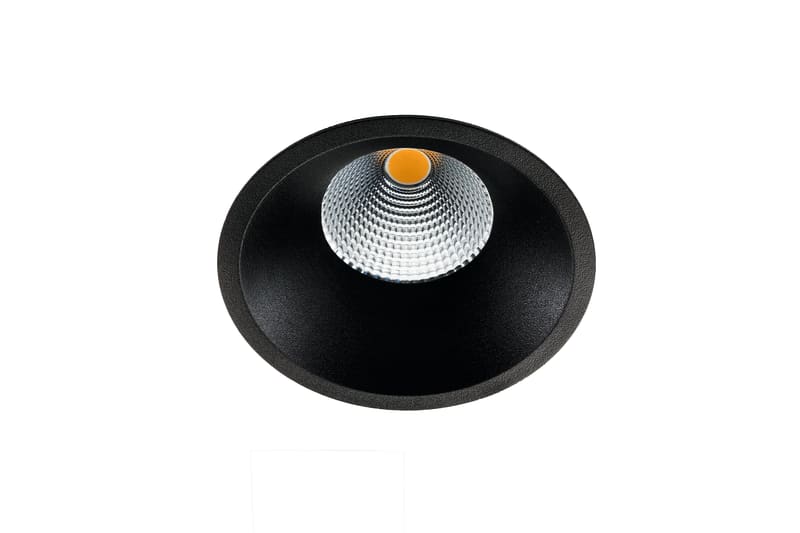

SOFT SLIM Black 9W/927 DALI
Part number903225EAN / GTIN7021989032250HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 903225 SOFT SLIM BLACK 2700K DALI L90/B10 50.000.
Technical Specifications
- Manufacturer part number (MPN)
- 903225
- EAN / GTIN
- 7021989032250
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 9 W
- Efficacy
- 67 lm/W
- Lumen
- 740lm
- Wattage
- 9W
- IP Class
- IP54/IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 11W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 740lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<19
- Photobiological safety
- RG 1
- Type
- DALI-2
- Luminaire class
- Class II SELV
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
- Connection
- 5 pol Linect / screwless terminal block
- Height (mm) H
- 52
- Diameter (mm) D
- 90
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 51
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.515 / 0.38
- Packaging dimensions (mm)
- 130 x 115 x 85
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989032250
- SAP 1200585151
- Code 82956557
Product Documentation
Document preview: SOFT SLIM Black 9W/927 DALI (903225) — Specification sheet
More from SG Armaturen
SG Armaturen
Circulus MAXI White 30W/830 Emergency Lighting
214017
SG Armaturen
Lineal Front Opal prismatic 2800mm
8249044968
SG Armaturen

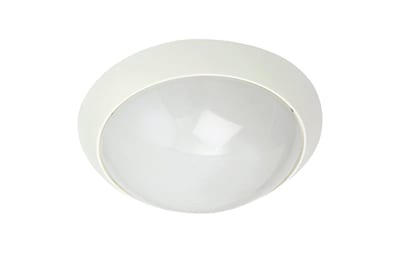

Energy-saving MAXI Dome
1591
SG Armaturen

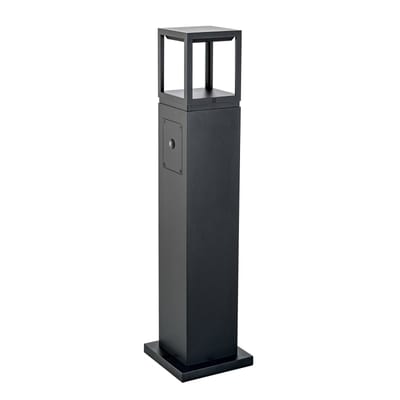

Fagernes Bollard Black 8W/827 PIR Sensor
630067
SG Armaturen

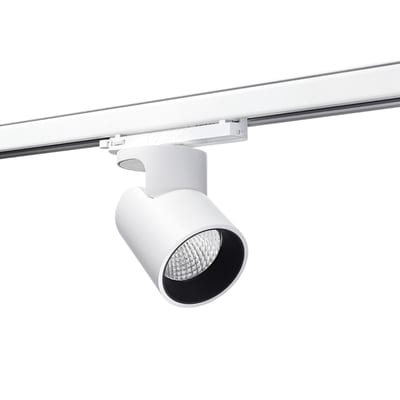

Aneto 3T White 30W/940 DALI
320718
SG Armaturen

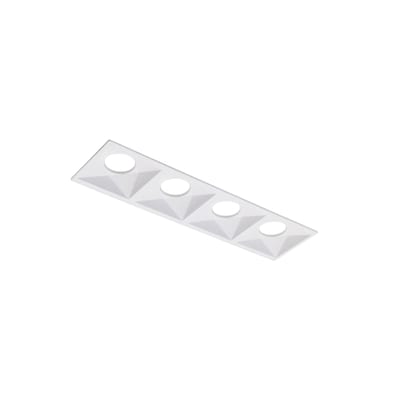

Inspire 150 Reflector White
212480
SG Armaturen

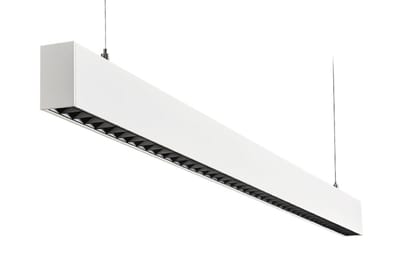

Inspire 1200 White 34W/840
212082
SG Armaturen

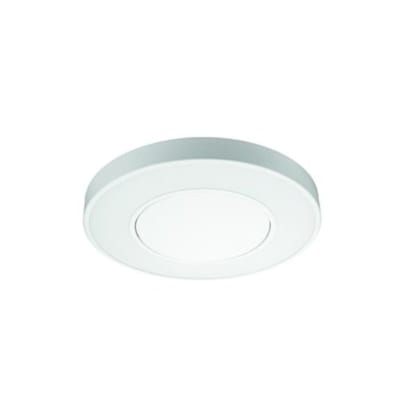

Circulus MAXI White 30W/840 DALI
