SG Armaturen

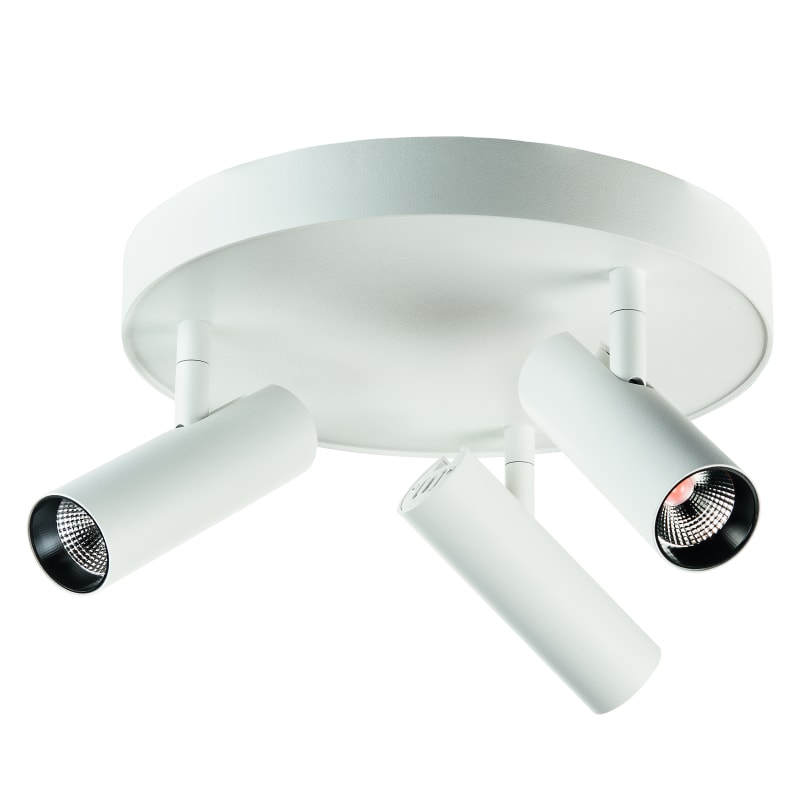

TUBE Micro TRIO White 18W DTW 36°
Part number320694EAN / GTIN7021983206947HS code9405.11
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320694 TUBE MICRO Trio white DTW 960lm 18W, SDCM 2, RA95, L80/B20, Class II, IP21, A.
Technical Specifications
- Manufacturer part number (MPN)
- 320694
- EAN / GTIN
- 7021983206947
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 18 W
- Replaces
- 912834, 912805
- Efficacy
- 53 lm/W
- Lumen
- 960lm
- IP Class
- IP21
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 50,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 18W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 960lm
- MacAdams factor
- SDCM: 2
- Optic
- Reflector medium
- Beam angle
- 40°
- UGR
- UGR<19
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Height (mm) H
- 29
- Diameter (mm) D
- 250
- Distance to flammable materials
- 5mm
- Weight (kg) gross/net
- 1.793 / 1.504
- Packaging dimensions (mm)
- 255 x 260 x 110
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983206947
- SAP 1200457297
- Code 82528457
Product Documentation
Document preview: TUBE Micro TRIO White 18W DTW 36° (320694) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense PRO X 600X600 White 3000K DALI
212660
SG Armaturen
DUO White 10W/827 (212251)
SG Armaturen
SG Armaturen ZIP 230V Central Connector, In-Line Power Feed, White
320738
SG Armaturen
Sense Basic 600X600 33W/840 DALI Linect
212216
SG Armaturen
Artes MINI White 8W/827
641740
SG Armaturen
ZIP TUBE MINI Baffel GOLD Ø59
320685
SG Armaturen

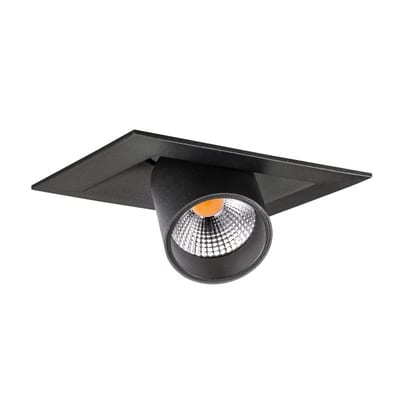

Junistar TUBE Square Black 2700K
902727
SG Armaturen

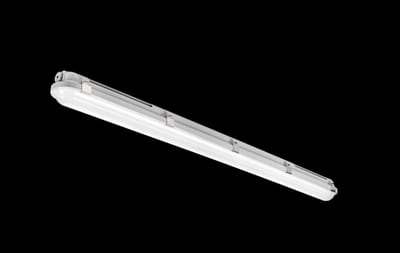

TYSNES66 1200 34W/840 Emergency Lighting
