SG Armaturen

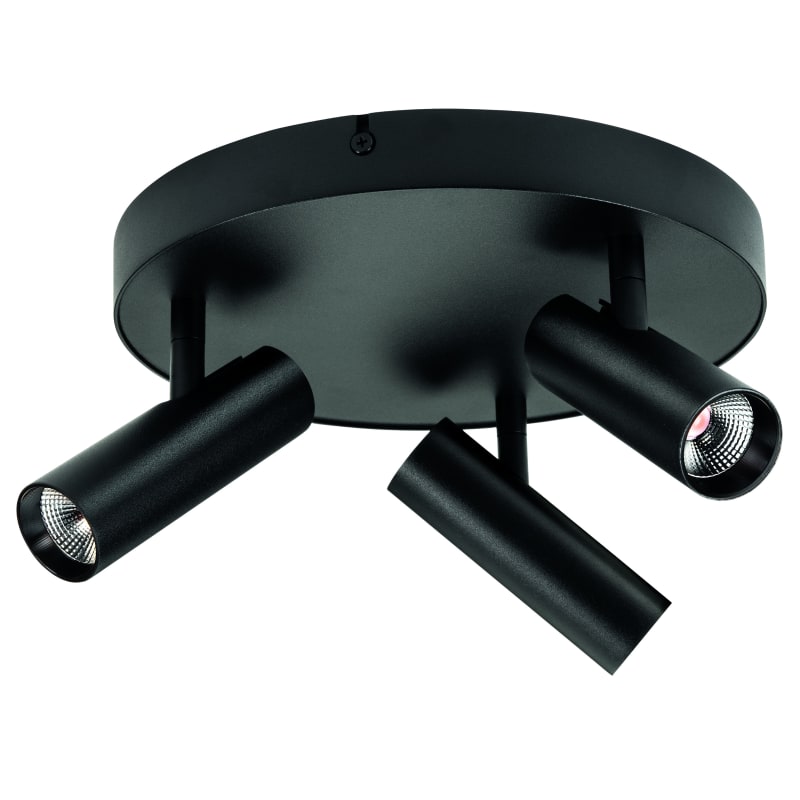

TUBE Micro TRIO Black 18W/927 36°
Part number320688EAN / GTIN7021983206886HS code9405.11
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320688 TUBE MICRO Trio black 2700K 1020lm 18W, SDCM 2, RA98, L90/B10, Class II, IP21, A.
Technical Specifications
- Manufacturer part number (MPN)
- 320688
- EAN / GTIN
- 7021983206886
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 18 W
- Efficacy
- 57 lm/W
- Lumen
- 1020lm
- IP Class
- IP21
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 18W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 1020lm
- MacAdams factor
- SDCM: 2
- Optic
- Reflector medium
- Beam angle
- 40°
- UGR
- UGR<19
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Height (mm) H
- 29
- Diameter (mm) D
- 250
- Distance to flammable materials
- 5mm
- Weight (kg) gross/net
- 1.793 / 1.504
- Packaging dimensions (mm)
- 255 x 260 x 110
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983206886
- SAP 1200457291
- Code 82528467
Product Documentation
Document preview: TUBE Micro TRIO Black 18W/927 36° (320688) — Specification sheet
More from SG Armaturen
SG Armaturen
Arena 1200 79W/840 WIDE
8246094539
SG Armaturen
Ecoline Office Wire Hanger
212049
SG Armaturen
SG Armaturen 6600293 IF Single Socket with Earth + USB-A Charger 2.4A Black
SG Armaturen

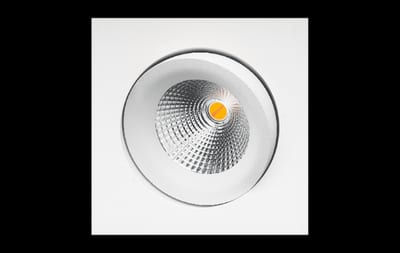

Junistar SQ Isosafe White 6W/D2W
901251
SG Armaturen

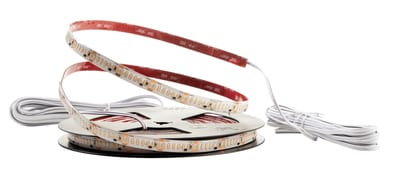

Stripline 10M 15W/827 2X5M Cable
391417
SG Armaturen

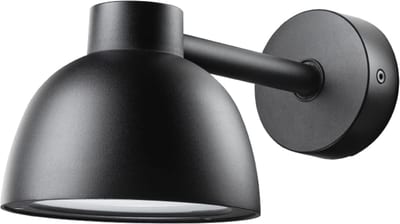

Herning WALL MINI Black 3000/4000K
623960
SG Armaturen

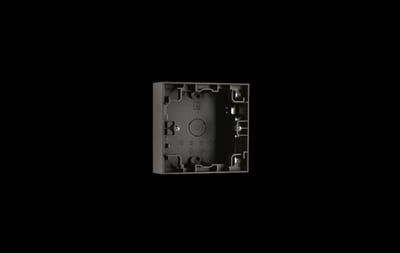

WALL-Mounted Cover 1X 23mm Black
78531
SG Armaturen

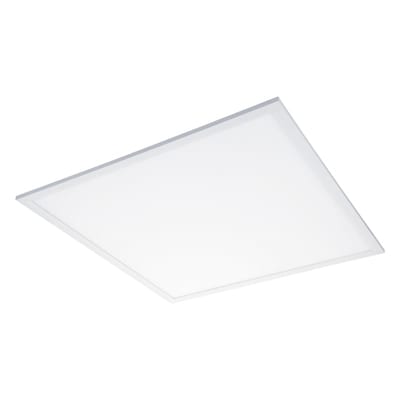

Sense PRO 600X600 3000K Ra>90
