SG Armaturen

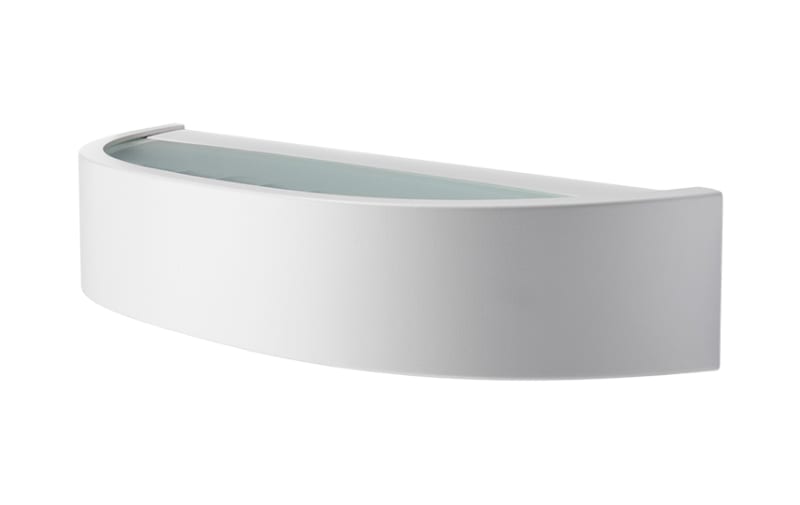

Curve White 7W/830 (611341)
Part number611341EAN / GTIN7021986113419HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 611341 Curve matte-white 10W LED 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 611341
- EAN / GTIN
- 7021986113419
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 7 W
- Efficacy
- 86 lm/W
- Lumen
- 600lm
- IP Class
- IP65
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 600lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect
- Optic
- Glass Clear
- Beam angle
- 110°/110°
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK06
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Width (mm) W
- 320
- Height (mm) H
- 60
- Depth (D)
- 103
- Weight (kg) gross/net
- 1.68 / 1.4
- Packaging dimensions (mm)
- 330 x 120 x 70
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986113419
- SAP 1200000934
- Code 8423505
Product Documentation
Document preview: Curve White 7W/830 (611341) — Specification sheet
More from SG Armaturen
SG Armaturen

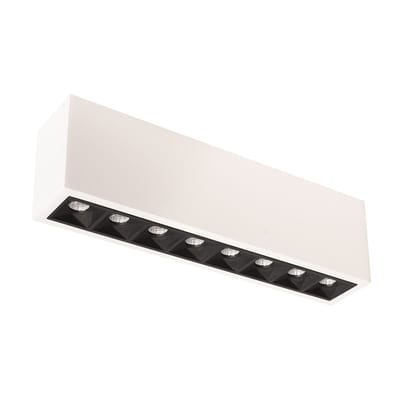

Inspire S 300 White 15W/930
320827
SG Armaturen

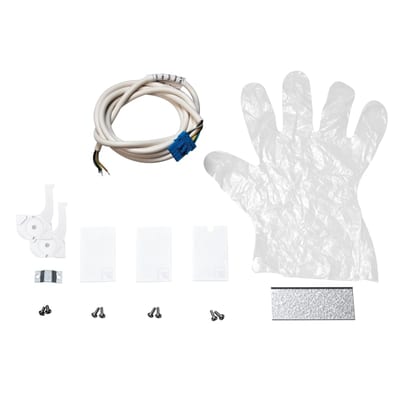

Lineal T-Ceiling Start KIT White
8241000353
SG Armaturen

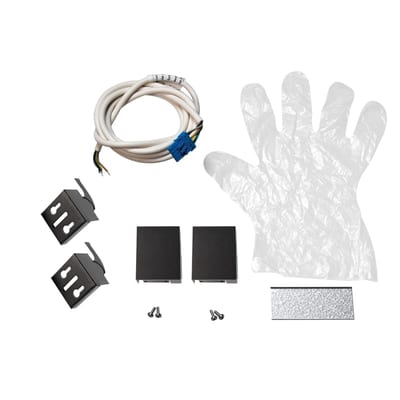

Lineal WALL Start KIT Black
8241000346
SG Armaturen

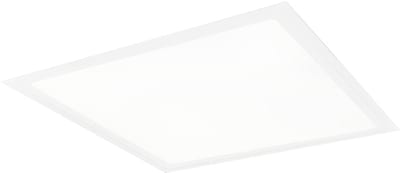

Multi Concept Diled Prism Front
8249044353
SG Armaturen

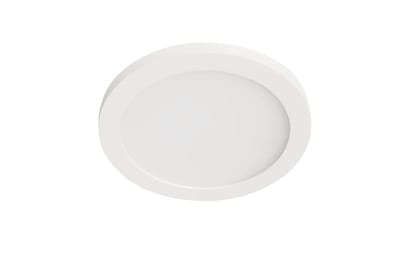

RAX 150 Glass IP44 MATT White
212622
SG Armaturen

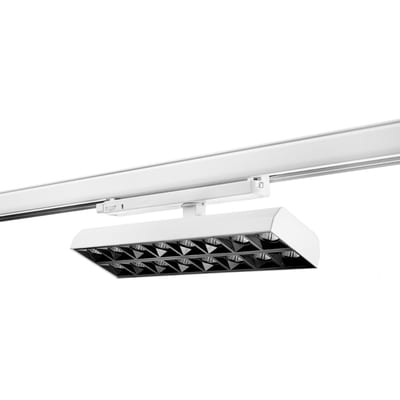

Inspire 300 3T White 34W/940
212462
SG Armaturen

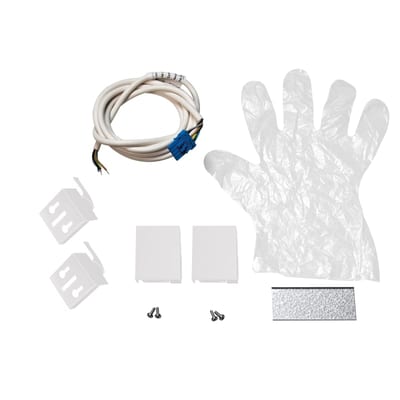

Lineal WALL Start KIT White
