SG Armaturen

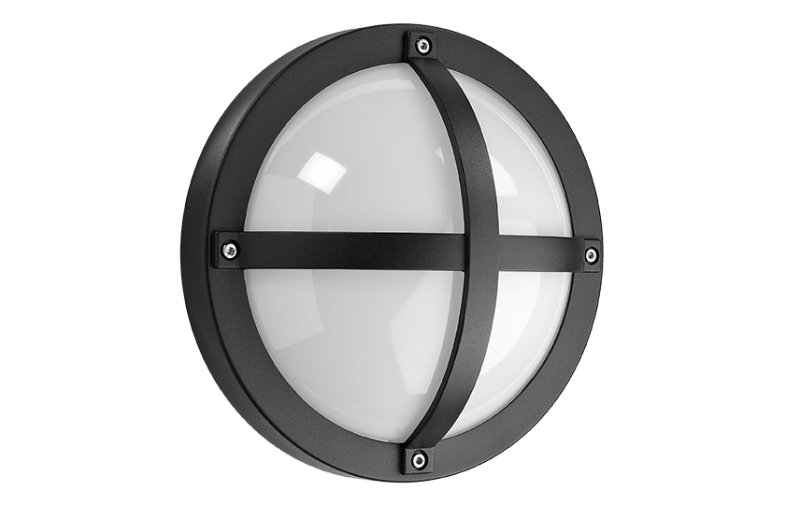

SOLO Black 11,5W/830 IP65
Part number644550EAN / GTIN7021986445503HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 644550 Solo black 1100 LED 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 644550
- EAN / GTIN
- 7021986445503
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP65
- Power
- 11.5 W
- Efficacy
- 74 lm/W
- Lumen
- 590lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 590lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 120°
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Module
- 1100
- Connection
- Screwless terminal block
- Height (mm) H
- 130
- Diameter (mm) D
- 270
- Depth (D)
- 130
- Weight (kg) gross/net
- 2 / 1.687
- Packaging dimensions (mm)
- 270 x 270 x 130
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986445503
- SAP 1000492216
- Code 8282465
Product Documentation
Document preview: SOLO Black 11,5W/830 IP65 (644550) — Specification sheet
More from SG Armaturen
SG Armaturen
WALL-Mounted Cover 3X White
78520
SG Armaturen
VIEW 460 White 16W/927 IP44
111420
SG Armaturen
Blank Cover WITH Screw 1X Black
76926
SG Armaturen

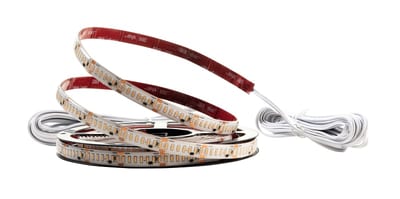

Stripline 5M 9W/827 2X5M Cable
391405
SG Armaturen

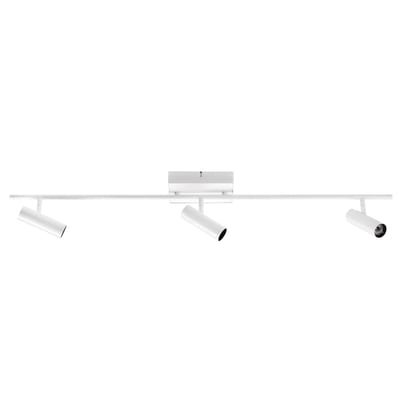

TUBE Micro Track White 18W/927 40°
320701
SG Armaturen

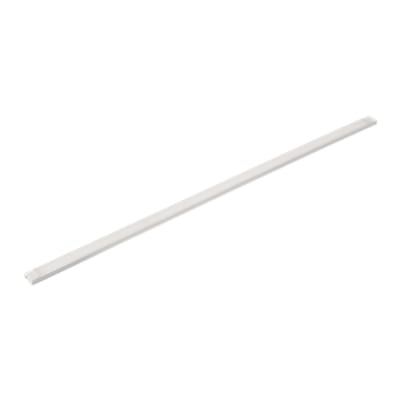

Slimline PRO 570mm 6,5W/927
391235
SG Armaturen

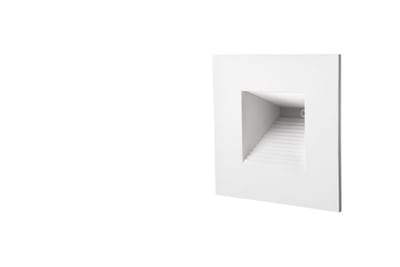

Capella Isosafe White 2W/827
912030
SG Armaturen

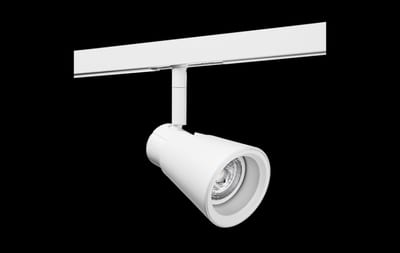

ZIP 1T ZOOM White 6W/927
