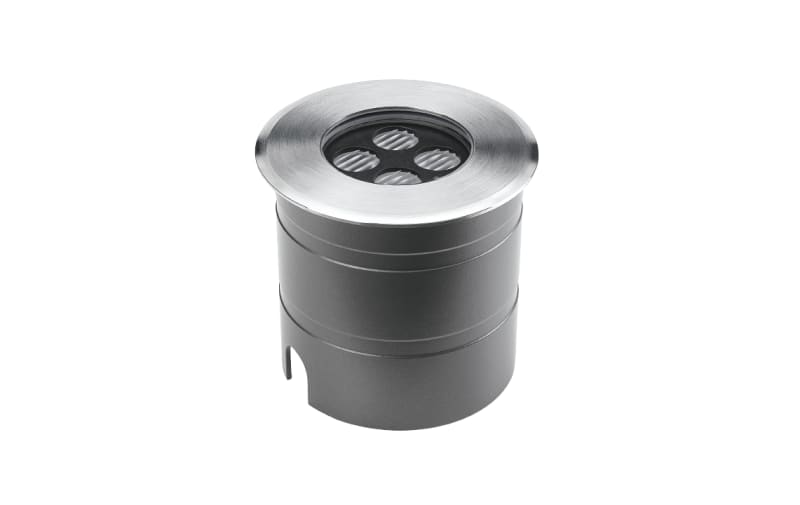

NEMO II MINI Asymmetric 4W/830 32°

SG Armaturen 630071 NEMO II MINI ASY 3000K, 4W, 160lm, 40lm/W, Ra>80, SDCM3, L80/B20 50000, KL 1.

Manufacturer part number (MPN)

630071

EAN / GTIN

7021986300710

Sales unit

pcs

Package quantity

12 pcs

Power

4 W

Efficacy

40 lm/W

Lumen

160lm

IP Class

IP67

Colour temperature

3000K

Colour rendering (Ra)

Ra>80

Lifetime

50,000 L80/B20>

Mounting

Recessed, Indoor / Outdoor

System wattage

4W

Voltage

220-240V

Frequency (Hz)

50/60Hz

Max. luminaires per circuit breaker

B10: 115, B16: 184, C10: 115, C16: 184

Type of light source

LED

Luminous flux

160lm

MacAdams factor

SDCM: 3

Light distribution

Asymmetric

Optic

Lens

Visible flicker (PstLM)

0

Stroboscopic flicker (SVM)

0.01

Type

Trailing edge

Luminaire class

Class I

IK Class

IK10

Max load

750 kg

Contains light source of energy class

E

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Aluminium and stainless steel

Optics

Glass

Cable

Cable 1m

Height (mm) H

100

Diameter (mm) D

110

Cut-out (mm)

98

Weight (kg) gross/net

1.107 / 1.007

Packaging dimensions (mm)

120 x 120 x 120

Protection class according to IEC 61140

I

Outer diameter

110 mm

Lamp holder

None

Conductor cross section

1 mm²

Housing colour

Anthracite

Dimmable

Yes

Voltage type

AC

Suitable for lamp power

4 W

Type of control gear

LED operating device voltage-controlled

Adjustable

No

Colour rendering index CRI

80-89

Built-in diameter

98 mm

Number of poles

3

Height/depth

100 mm

Lamp type

LED not exchangeable

Electrical connection with connector system

No

Impact strength

IK10

Over rollable

Yes

Nominal voltage

220–240 V

Degree of protection (IP)

IP67

With light source

Yes

Suitable for number of light sources

1

With control gear

Yes

Max. system power

4 W

Rated luminous flux according to IEC 62722-2-1

160 lm

Colour of light

White

IFTTT support available

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DMX

No

Dimming potentiometer (integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

Yes

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming RF

No

Dimming Its Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Luminaire efficacy

40 lm/W

Dimming DSI

No

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

A+

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Dimming DALI-2

No

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Exchangeable control gear

No

Compatible with Casambi

No

Built-in height/depth

100 mm

Country of origin

China

HS Code

9405.42

• EAN 7021986300710
• SAP 1200595504
• Code 82970587
