SG Armaturen

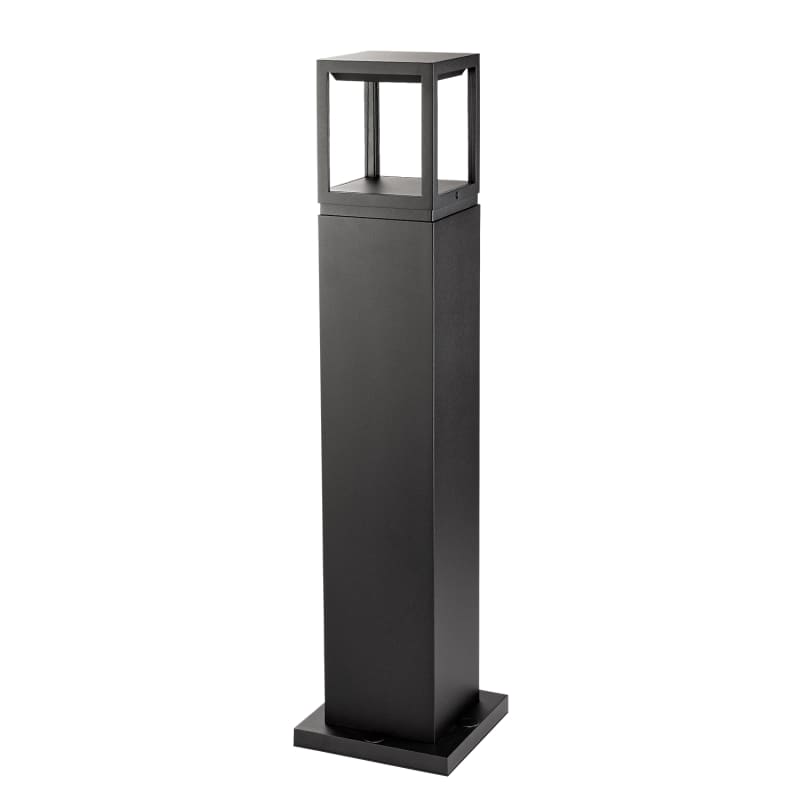

Fagernes Bollard Black 8W/827
Part number630064EAN / GTIN7021986300642HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 630064 FAGERNES BOLLARD BLACK 2700K, 8W, 270lm, Ra>80, SDCM:3, Class II, IP44, 100.000, L70/B50>.
Technical Specifications
- Manufacturer part number (MPN)
- 630064
- EAN / GTIN
- 7021986300642
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 8 W
- Efficacy
- 30 lm/W
- Lumen
- 270lm
- IP Class
- IP44
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B50>
- Mounting
- Onto surfaces or ground anchor, Outdoor
- System wattage
- 9W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 120, B16: 200, C10: 120, C16: 200
- Type of light source
- LED
- Luminous flux
- 270lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Indirect
- Beam angle
- 94,2°
- UGR
- UGR>28
- Visible flicker (PstLM)
- 0.05
- Stroboscopic flicker (SVM)
- 0.14
- ULOR (<1%)
- Yes
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK08
- Contains light source of energy class
- G
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Connection
- Screwless terminal block
- Length (mm) L
- 200
- Width (mm) W
- 200
- Height (mm) H
- 800
- Weight (kg) gross/net
- 7.5 / 7.3
- Packaging dimensions (mm)
- 820 x 210 x 210
- Protection class according to IEC 61140
- II
- Width
- 200 mm
- Height
- 800 mm
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- RAL-number
- 9004
- Housing colour
- Black
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Number of poles
- 3
- Length
- 200 mm
- Height/depth
- 800 mm
- Housing material
- Aluminium
- Material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Indirect
- Impact strength
- IK08
- Degree of protection (IP)
- IP44
- Suitable for number of light sources
- 1
- Max. system power
- 9 W
- Rated luminous flux according to IEC 62722-2-1
- 270 lm
- Colour of light
- White
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Luminaire efficacy
- 30 lm/W
- Flickering value Pst LM
- 0.05
- Stroboscope effect value SVM
- 0.14
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Device emplacement
- Outdoor positioning
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986300642
- SAP 1200701089
- Code 83595519
Product Documentation
Document preview: Fagernes Bollard Black 8W/827 (630064) — Specification sheet
More from SG Armaturen
SG Armaturen
Ledstar SLIM 24V Black 4,5W/927
912142
SG Armaturen
Socket IF Single WITH Cover IP44 Black
77131
SG Armaturen
WALL BOX DBL 9/12mm 6-Run
1202590
SG Armaturen
Artes Round Black 8W/827
641730
SG Armaturen
VIEW 460 White 16W/930 IP44 with Socket
111434
SG Armaturen
WALL BOX Single 8-Run
1202566
SG Armaturen
Hovden Micro Graphite 4W/827 36°
630062
SG Armaturen

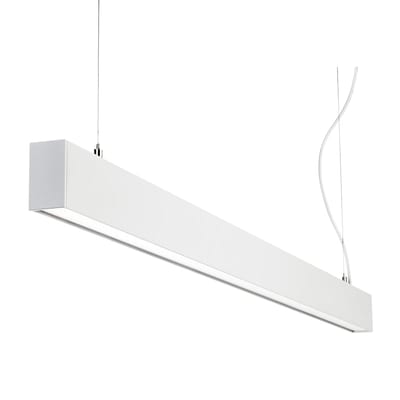

Inspire 1200 White Prism 29W/830
