SG Armaturen

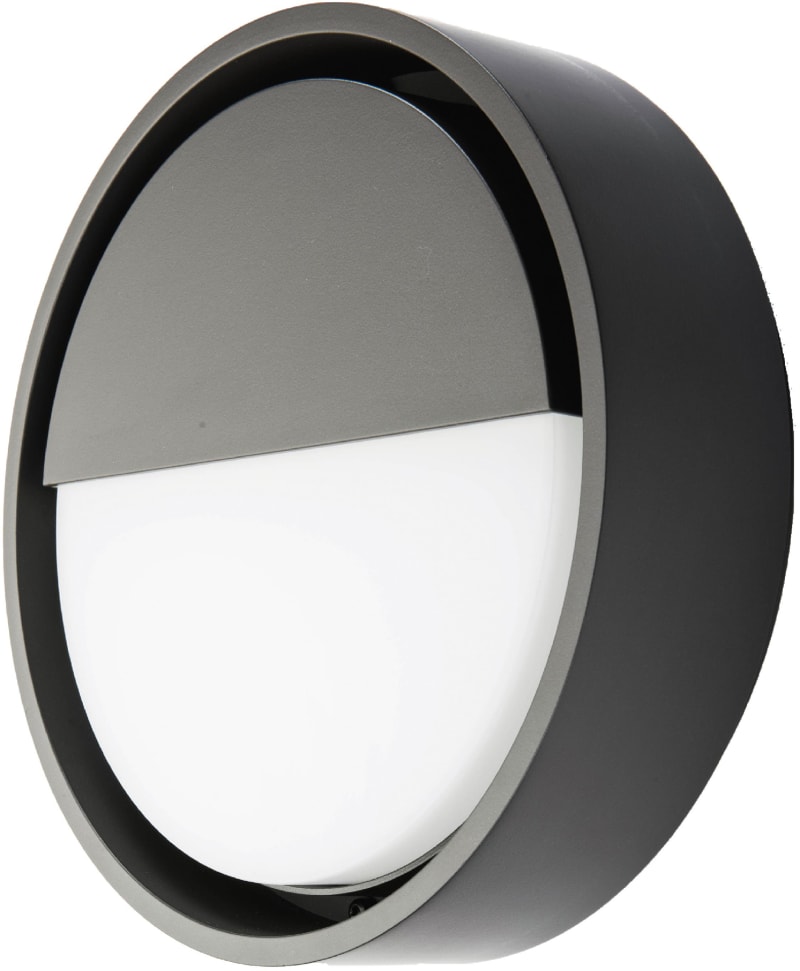

Frame Round WALL Graphite 7W/840
Part number605092EAN / GTIN7021986050929HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605092 Frame Round Wall graphite 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 605092
- EAN / GTIN
- 7021986050929
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 7 W
- Efficacy
- 56 lm/W
- Lumen
- 390lm
- IP Class
- IP66
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 77, B16: 123, C10: 77, C16: 123
- Type of light source
- LED
- Luminous flux
- 390lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 77
- Diameter (mm) D
- 270
- Weight (kg) gross/net
- 2.39 / 1.9
- Packaging dimensions (mm)
- 278 x 275 x 92
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986050929
- SAP 1200369606
- Code 82376269
Product Documentation
Document preview: Frame Round WALL Graphite 7W/840 (605092) — Specification sheet
More from SG Armaturen
SG Armaturen
Inspire R 150 Black 8W/940
212425
SG Armaturen
Facet II 1200 D/In White 29W/840 DALI
8246090410
SG Armaturen
Tanto Black 11,5W/830 IP65
644540
SG Armaturen

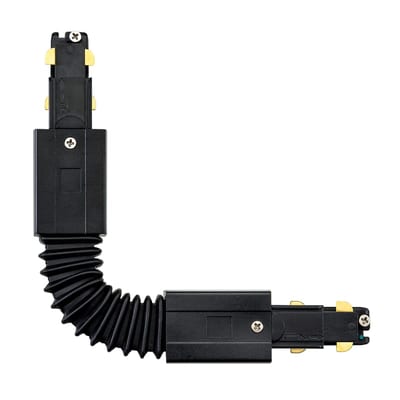

Shopline 3T DALI Flexible Joint Black
312515
SG Armaturen
Inspire R 150 White 8W/940 DALI
212420
SG Armaturen

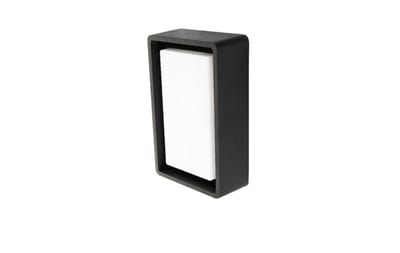

Frame MINI Graphite 6,5W/840
605491
SG Armaturen

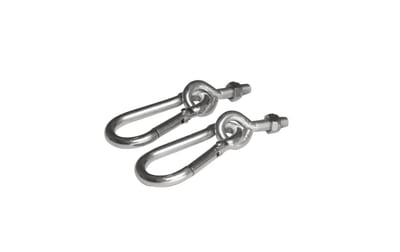

Arena Mountingskit (8249044890)
SG Armaturen

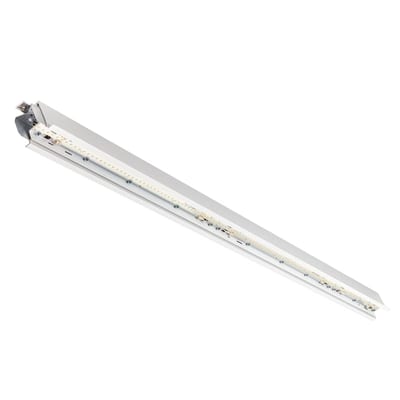

Lineal Recessed 1120 White 17W/830 DALI
