SG Armaturen
Frame SQ MAXI White 21W/830 Emergency Lighting
Part number605345EAN / GTIN7021986053456HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

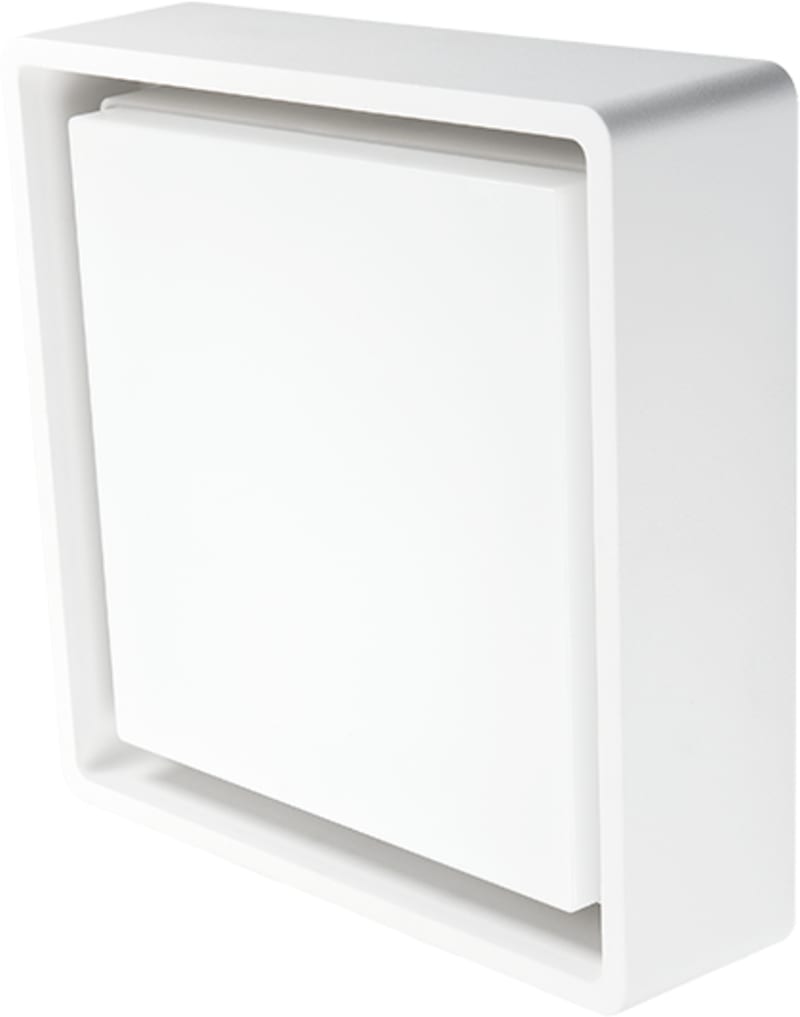

SG Armaturen 605345 FRAME SQUARE MAXI WHITE LED.
Technical Specifications
- Manufacturer part number (MPN)
- 605345 EAN / GTIN: 7021986053456 Sales unit: pcs Package quantity: 4 pcs Power: 21 W Efficacy: 94 lm/W Lumen: 1980lm IP Class: IP66 Colour temperature: 3000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L70/B20> Mounting: Surface, Indoor System wattage: 21W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85 Type of light source: LED Luminous flux: 1980lm Emergency lumen: 360 lm MacAdams factor: SDCM: 3 minimum ambient temperature: 0°C Light distribution: Direct Optic: Opal Beam angle: 110° UGR: UGR<25 Photobiological safety: RG 0 ULOR (<1%): Yes, when ceiling mounted Type: Emergency 3H/trailing edge Luminaire class: Class II IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Aluminium Colour: White (RAL 9003) Optics: UV-stabilized polycarbonate Connection: Screwless terminal block Length (mm) L: 310 Width (mm) W: 310 Height (mm) H: 77 Weight (kg) gross/net: 3.65 / 3.45 Packaging dimensions (mm): 318 x 318 x 92 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986053456
- SAP 1200117334
- Code 81972166
Product Documentation
Document preview: Frame SQ MAXI White 21W/830 Emergency Lighting (605345) — Specification sheet
