SG Armaturen

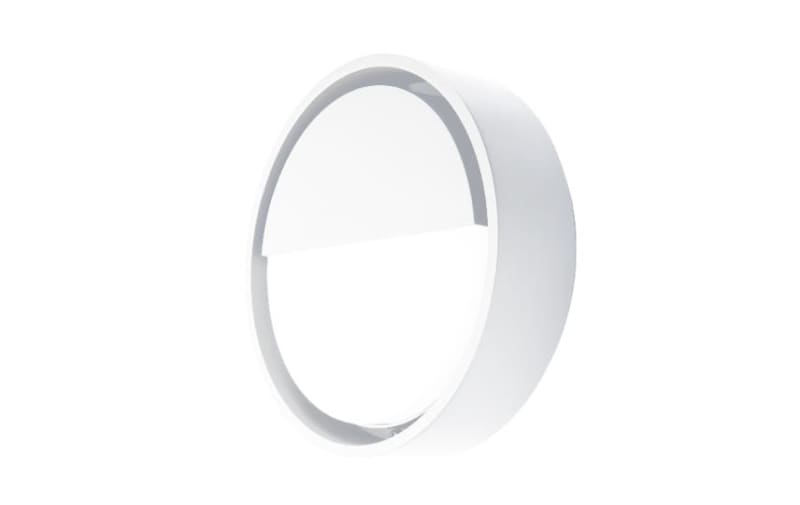

Frame Round WALL White 7W/830
Part number605046EAN / GTIN7021986050462HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605046 FRAME ROUND WALL WHITE 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 605046
- EAN / GTIN
- 7021986050462
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 7 W
- Efficacy
- 56 lm/W
- Lumen
- 390lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 390lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- White
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 77
- Diameter (mm) D
- 270
- Weight (kg) gross/net
- 2.39 / 1.9
- Packaging dimensions (mm)
- 278 x 275 x 92
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986050462
- SAP 1200117315
- Code 81971392
Product Documentation
Document preview: Frame Round WALL White 7W/830 (605046) — Specification sheet
More from SG Armaturen
SG Armaturen
WAX Visor Black (8249044311)
SG Armaturen
Arlon Round Black 10W/840
653623
SG Armaturen
Frame MINI White 6,5W/830
605441
SG Armaturen
Arlon White 3000K DALI
653615
SG Armaturen
Facet II 1200 D/A White 18W/840 DALI
8246090740
SG Armaturen
Inspire R 600 Black 23W/840
320902
SG Armaturen
EDGE Direct Graphite 7W/830 IP65
611358
SG Armaturen

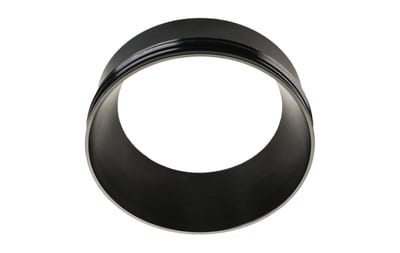

ZIP TUBE MINI Baffel Black Ø59
