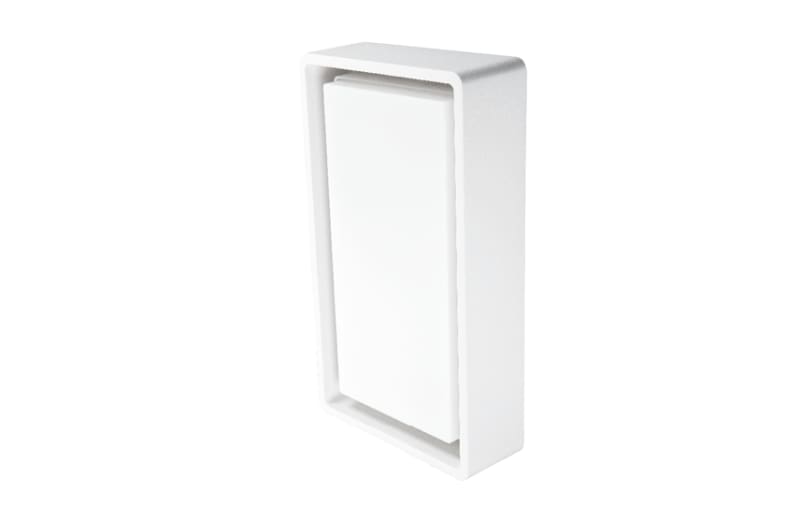

Frame White 8W/830 Sensor
Part number605543EAN / GTIN7021986055436HS code8543.70
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605543 Vandalsikker (IK10) wall luminaire in modern design. Complete with energieffektiv LED with long service life.
Technical Specifications
- Manufacturer part number (MPN)
- 605543
- EAN / GTIN
- 7021986055436
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 8 W
- Efficacy
- 119 lm/W
- Lumen
- 890lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7.5W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 77, B16: 123, C10: 77, C16: 123
- Type of light source
- LED
- Luminous flux
- 890lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Sensor
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 320
- Width (mm) W
- 180
- Height (mm) H
- 77
- Weight (kg) gross/net
- 2.47 / 1.9
- Packaging dimensions (mm)
- 328 x 188 x 92
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021986055436
- SAP 1200118746
- Code 81974562
Product Documentation
Document preview: Frame White 8W/830 Sensor (605543) — Specification sheet
