SG Armaturen

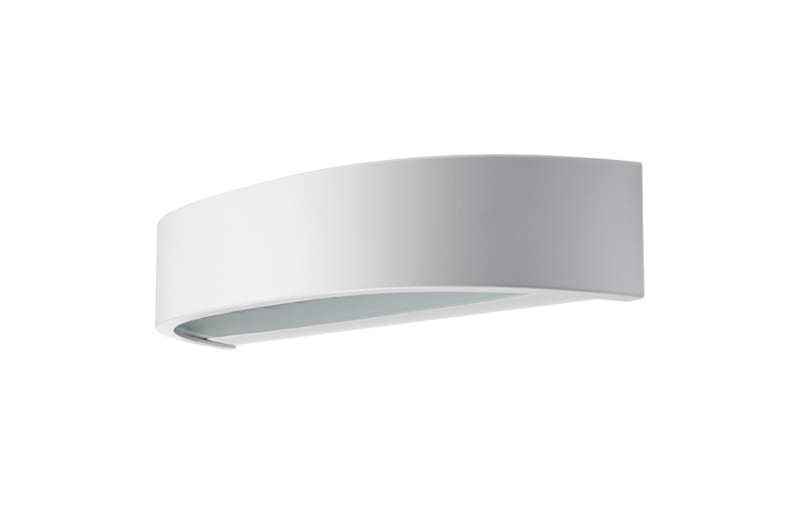

Curve Direct White 10W/827
Part number611365EAN / GTIN7021986113655HS code8543.70
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 611365 Slim wall luminaire with 10W LED (50Hz 230V).
Technical Specifications
- Manufacturer part number (MPN)
- 611365
- EAN / GTIN
- 7021986113655
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 10 W
- Efficacy
- 35 lm/W
- Lumen
- 345lm
- IP Class
- IP65
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 10W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 345lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Glass Clear
- Beam angle
- 110°
- ULOR (<1%)
- Yes
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK06
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Width (mm) W
- 320
- Height (mm) H
- 60
- Depth (D)
- 103
- Weight (kg) gross/net
- 1.68 / 1.4
- Packaging dimensions (mm)
- 330 x 120 x 70
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021986113655
- SAP 1200014969
- Code 81384704
Product Documentation
Document preview: Curve Direct White 10W/827 (611365) — Specification sheet
More from SG Armaturen
SG Armaturen
SG Armaturen 212698 Sense LINE Mounting Spring Kit, 4 Springs + 8 Screws
SG Armaturen
SG Armaturen 820090 Downlight Connection Kit for Emergency-Light Box
SG Armaturen

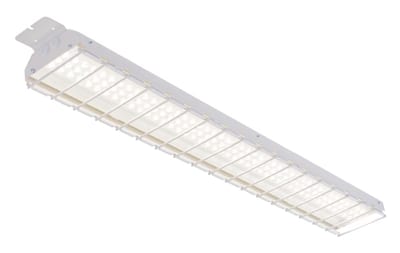

Arena 1200 Sport 77W/840 Medium DALI
8246094319
SG Armaturen

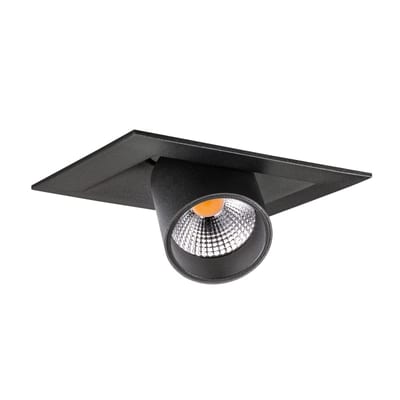

Junistar TUBE Square Black 4000K
902729
SG Armaturen
ZIP PRO 3T Black 40W/930 40°
320736
SG Armaturen

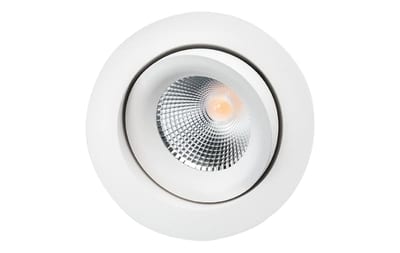

Junistar White 24-65K TW Jointim
912242
SG Armaturen

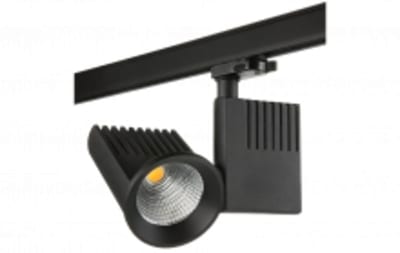

ZIP PRO 3T Black 40W/940 40°
320737
SG Armaturen

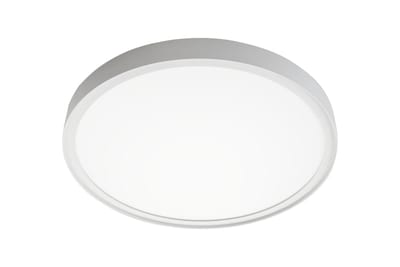

DISC 480 White 36W/830 Emergency Lighting
