SG Armaturen

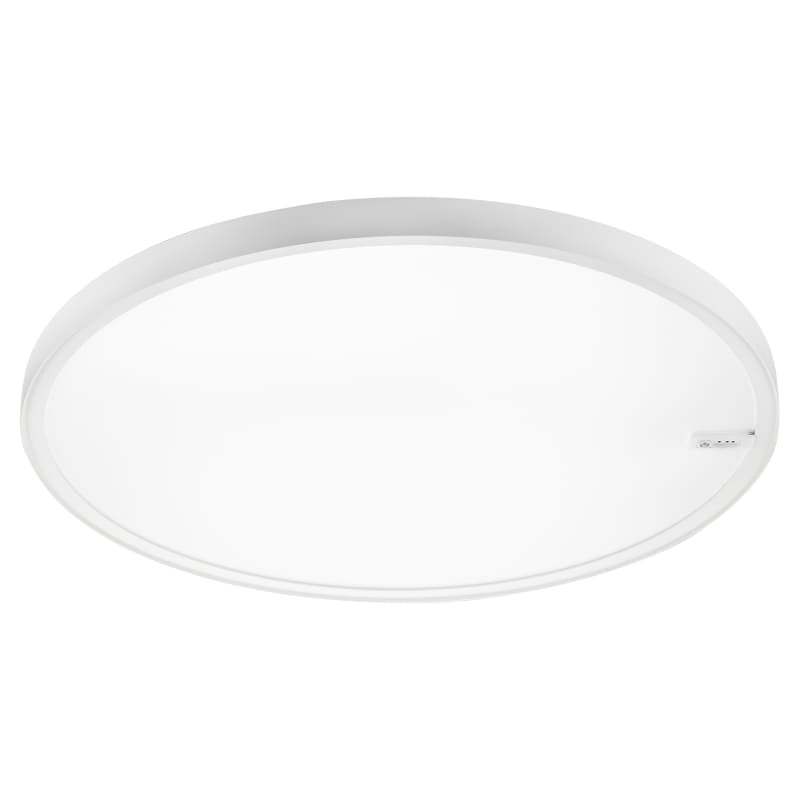

DISC 760 Connect White 3000/4000K Ra>90
Part number606241EAN / GTIN7021986062410HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606241 DISC 760 CONNECT WHITE 3000/4000K RA>90.
Technical Specifications
- Manufacturer part number (MPN)
- 606241
- EAN / GTIN
- 7021986062410
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Colour temperature
- 4000 K
- Colour rendering index
- Ra >90
- Efficacy
- 106/112lm/W
- Lumen
- 5100lm/5370lm
- Wattage
- 48W
- IP Class
- IP20
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B20>
- System wattage
- 48W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 17, B16: 37, C10: 28, C16: 45
- Type of light source
- LED
- Luminous flux
- 5100lm/5370lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<19
- Type
- Connect
- Luminaire class
- Class II
- Contains light source of energy class
- E/D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Steel
- Colour
- White
- Optics
- Acrylic (PMMA)
- Module
- 760
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 760
- Weight (kg) gross/net
- 11.1 / 10.7
- Packaging dimensions (mm)
- 775 x 775 x 63
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062410
- SAP 1200888905
- Code 84131629
Product Documentation
Document preview: DISC 760 Connect White 3000/4000K Ra>90 (606241) — Specification sheet
More from SG Armaturen
SG Armaturen

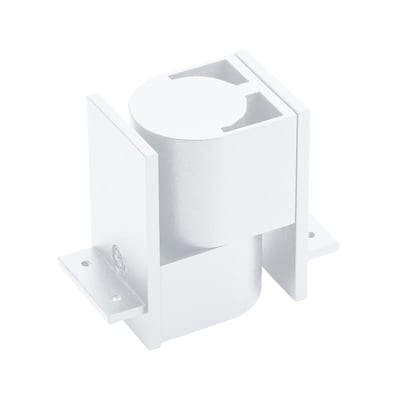

Inspire Corner Piece Flexi White
212471
SG Armaturen

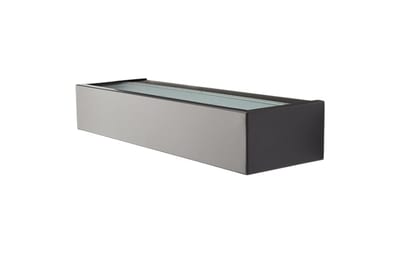

EDGE Graphite 10W/830 IP65
623351
SG Armaturen

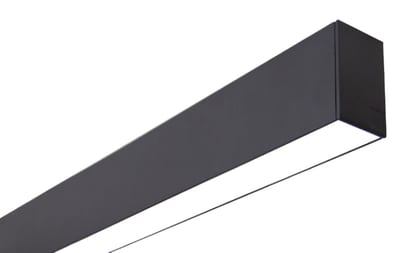

Lineal SURF 1120 18W/840 Black DALI
8246095062
SG Armaturen

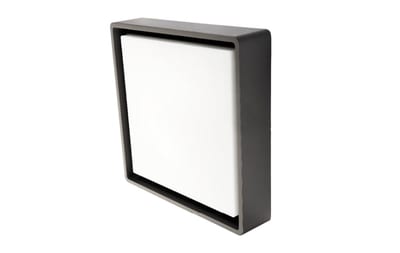

Frame SQ MAXI Graphite 21W/840
605391
SG Armaturen

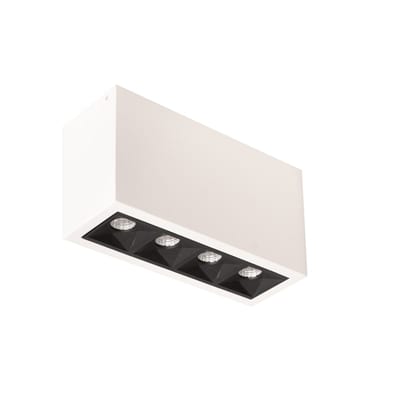

Inspire S 150 White 8W/930
320821
SG Armaturen

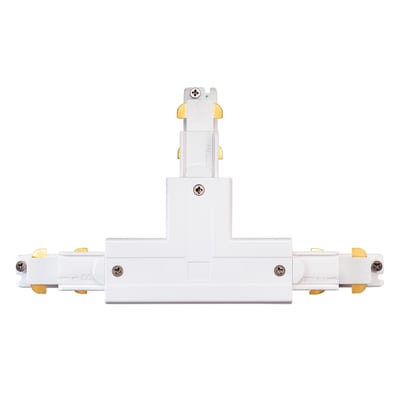

Shopline 3T DALI T-Joint H (R1) White
312520
SG Armaturen

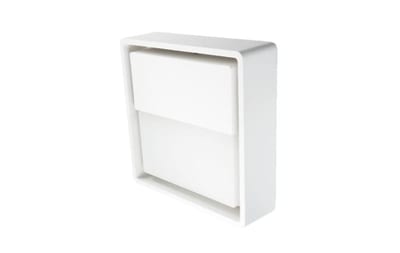

Frame SQ WALL White 7W/830
605246
SG Armaturen

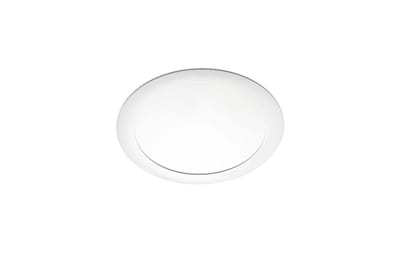

Sense 255 OPAL Prism 13W/840
