SG Armaturen

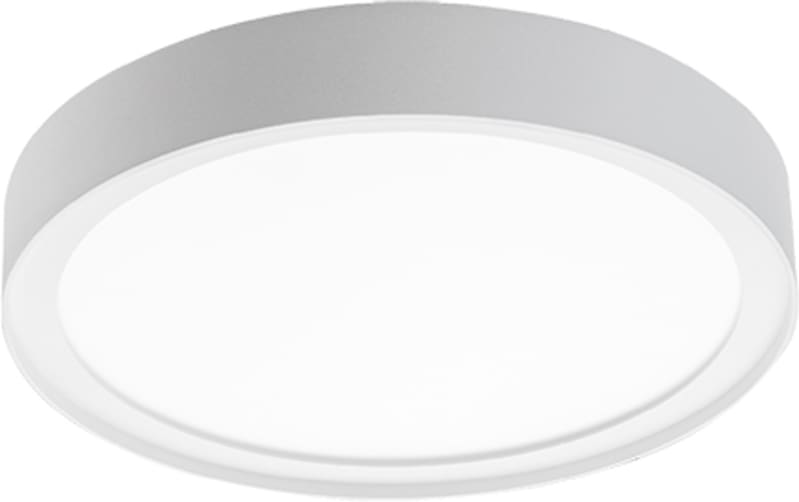

DISC 290 White 17W/827 IK10 DALI
Part number606040EAN / GTIN7021986060409HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606040 DISC 290 WHITE 2700K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 606040
- EAN / GTIN
- 7021986060409
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 17 W
- Efficacy
- 118 lm/W
- Lumen
- 2000lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 17W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 35, B16: 55, C10: 57, C16: 92
- Type of light source
- LED
- Luminous flux
- 2000lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 288
- Weight (kg) gross/net
- 2.005 / 1.846
- Packaging dimensions (mm)
- 308 x 303 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060409
- SAP 1200244011
- Code 82204921
Product Documentation
Document preview: DISC 290 White 17W/827 IK10 DALI (606040) — Specification sheet
