SG Armaturen

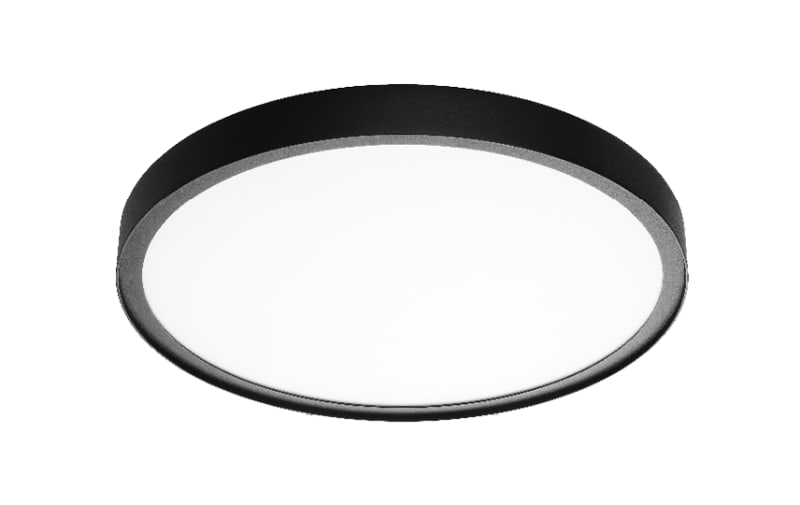

DISC 480 Black 36W/830 Sensor DIM
Part number606021EAN / GTIN7021986060218HS code8536.90
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606021 DISC 480 black 3000K Sensor DIM 36W, RA80, L80/B20, Class II, IP20, IK10, SDCM 3.
Technical Specifications
- Manufacturer part number (MPN)
- 606021
- EAN / GTIN
- 7021986060218
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 36 W
- Efficacy
- 109 lm/W
- Lumen
- 3390lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 31W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 3390lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Photobiological safety
- RG 0
- Type
- Sensor Dim
- Sensor type
- Pure motion sensor, independent of lux level
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Black
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 470
- Weight (kg) gross/net
- 4.845 / 4.433
- Packaging dimensions (mm)
- 490 x 485 x 60
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986060218
- SAP 1200520591
- Code 82665748
Product Documentation
Document preview: DISC 480 Black 36W/830 Sensor DIM (606021) — Specification sheet
More from SG Armaturen
SG Armaturen
Slimline 270mm 2,4W/930
391201
SG Armaturen
Fenes Lens 1 35W/730 3790LM DALI
212644
SG Armaturen
Hovden MIDI Corten 12W/830 36°
630080
SG Armaturen
Inspire 1500 White Prism 35W/840 DALI
212865
SG Armaturen
Hovden Micro Corten 4W/830 36°
630082
SG Armaturen

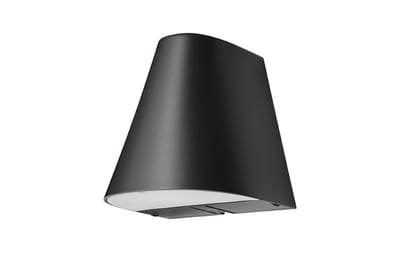

Spike Black 11W+6W/830 2XPLUG Twilight
614924
SG Armaturen

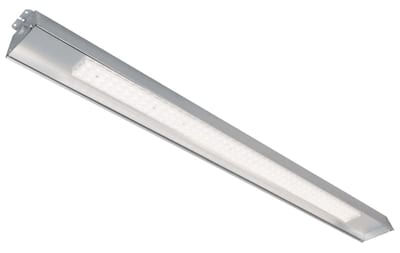

Arena ECO 1500 76W/840 Medium DALI
607019
SG Armaturen

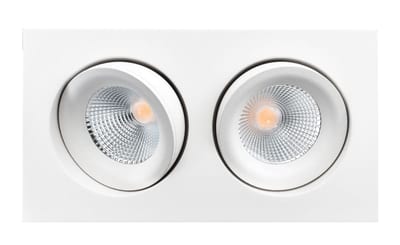

Junistar LUX SQ White 2X7W/930
