SG Armaturen

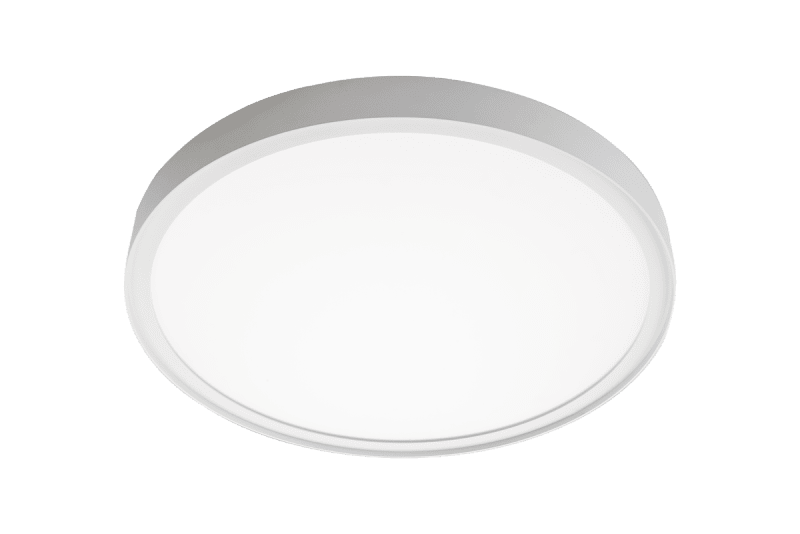

DISC 480 White 36W/830 DALI
Part number606007EAN / GTIN7021986060072HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606007 DISC 480 WHITE 3000K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 606007
- EAN / GTIN
- 7021986060072
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 36 W
- Efficacy
- 123 lm/W
- Lumen
- 3680lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 30W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 35, B16: 55, C10: 55, C16: 80
- Type of light source
- LED
- Luminous flux
- 3680lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 470
- Weight (kg) gross/net
- 4.845 / 4.433
- Packaging dimensions (mm)
- 490 x 485 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060072
- SAP 1200243994
- Code 82204935
Product Documentation
Document preview: DISC 480 White 36W/830 DALI (606007) — Specification sheet
More from SG Armaturen
SG Armaturen
Fevik Graphite 1000-2000 3000K with Twilight
623255
SG Armaturen

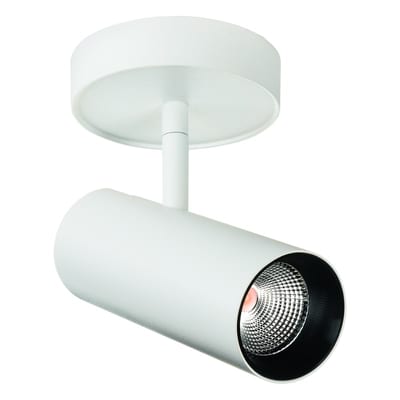

TUBE MINI S White 17W/927 40°
320690
SG Armaturen

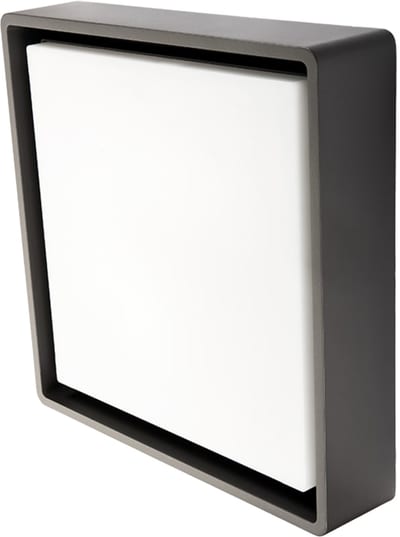

Frame SQ MAXI Graphite 21W/830
605361
SG Armaturen

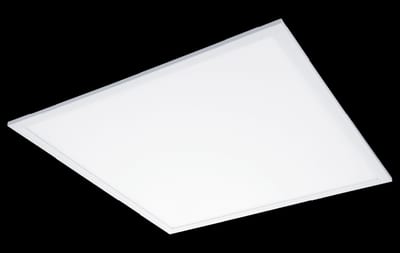

Sense ECO 600X600 Opal prismatic 27W/840
212223
SG Armaturen

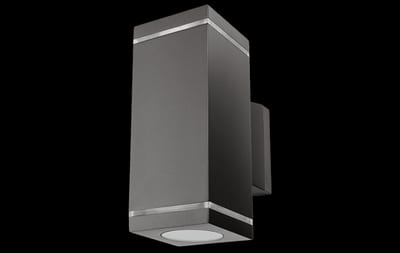

ECHO DECO Graphite GU10 2X4,5W/827 IP54
