SG Armaturen

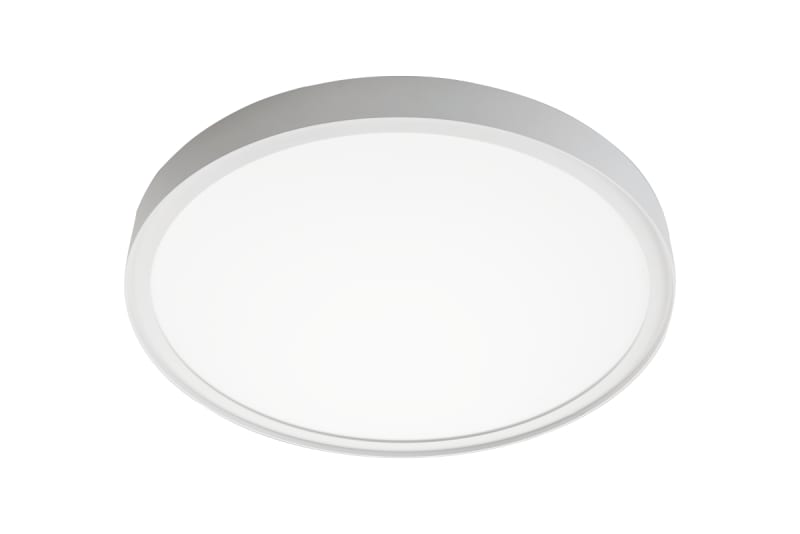

DISC 480 White 36W/840
Part number606002EAN / GTIN7021986060027HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606002 DISC 480 WHITE 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 606002
- EAN / GTIN
- 7021986060027
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 36 W
- Efficacy
- 122 lm/W
- Lumen
- 3790lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 31W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 3790lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Module
- 480
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 470
- Weight (kg) gross/net
- 4.845 / 4.433
- Packaging dimensions (mm)
- 490 x 485 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060027
- SAP 1200243993
- Code 82204923
Product Documentation
Document preview: DISC 480 White 36W/840 (606002) — Specification sheet
More from SG Armaturen
SG Armaturen
Hovden MIDI Graphite 4W/840 15°
630006
SG Armaturen
Langfoss MINI Pole-TOP Ø60/76
641917
SG Armaturen
DISC 290 Black 19W TW 2000-4000K
606119
SG Armaturen
TUBE Micro R Black 15W/927 36° DALI
320753

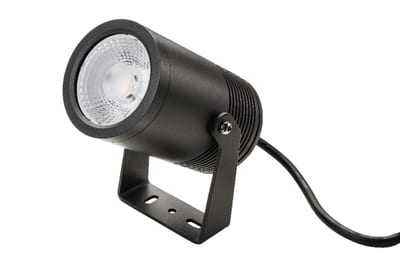

SG Armaturen
Hovden MAXI Graphite 4W/840 15°
630010

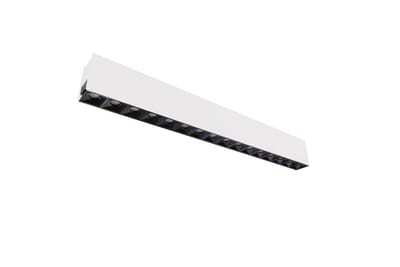

SG Armaturen
Lineal Cubic 840 White 27W/830 DALI
8246095745

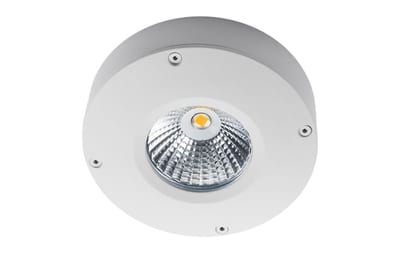

SG Armaturen
Callisto White 4W/830 IP65
912010

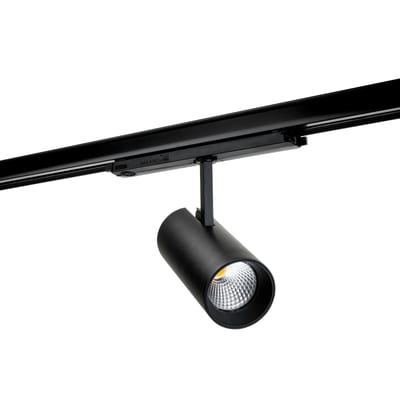

SG Armaturen
