SG Armaturen

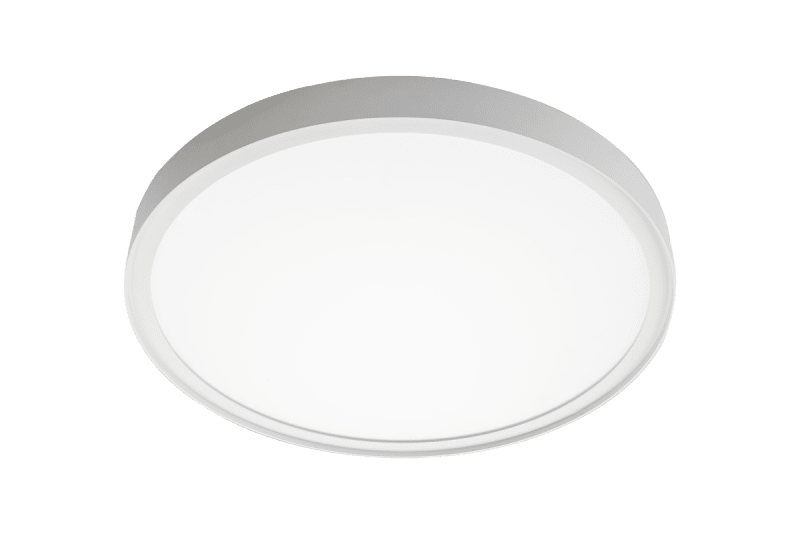

DISC 480 White 36W/830
Part number606001EAN / GTIN7021986060010HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606001 DISC 480 WHITE 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 606001
- EAN / GTIN
- 7021986060010
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 36 W
- Efficacy
- 119 lm/W
- Lumen
- 3680lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 31W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 3680lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Module
- 480
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 470
- Weight (kg) gross/net
- 4.845 / 4.433
- Packaging dimensions (mm)
- 490 x 485 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060010
- SAP 1200244003
- Code 82204938
Product Documentation
Document preview: DISC 480 White 36W/830 (606001) — Specification sheet
More from SG Armaturen
SG Armaturen
Socket IF Double Rehab without EARTH White
77062
SG Armaturen
Remote Control Stripline RF RGBW
391457
SG Armaturen
Stripline 5M 15W/827 2X5M Cable
391415
SG Armaturen
Sense PRO Connect 600X600 33W/830
212684
SG Armaturen
WALL-Mounted Cover 1X 23mm White
78530
SG Armaturen

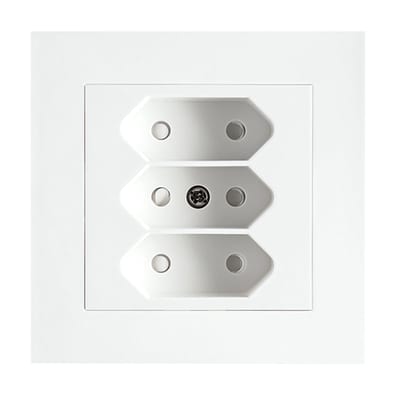

SG Armaturen IF Euro 3-Way Recessed Socket Outlet White
77030
SG Armaturen

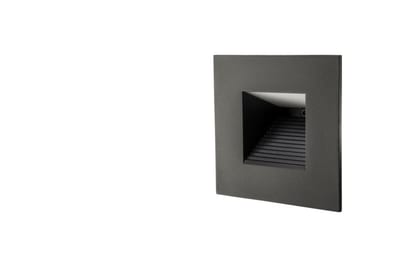

Capella Isosafe Black 2W/827
912033
SG Armaturen

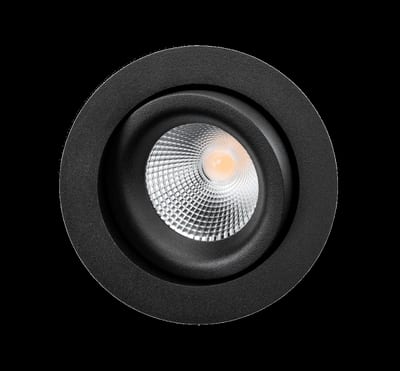

Junistar LUX Black 7W/927
902506
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 606001?
- 606001 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 606001.
- What is the HS code for 606001?
- The customs tariff (HS) code for 606001 is 9405.11.
- Who manufactures 606001?
- 606001 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 606001?
- Yes — the 606001 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 606001?
- The minimum order quantity is 1.
- Is 606001 available?
- Yes — 606001 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
