SG Armaturen

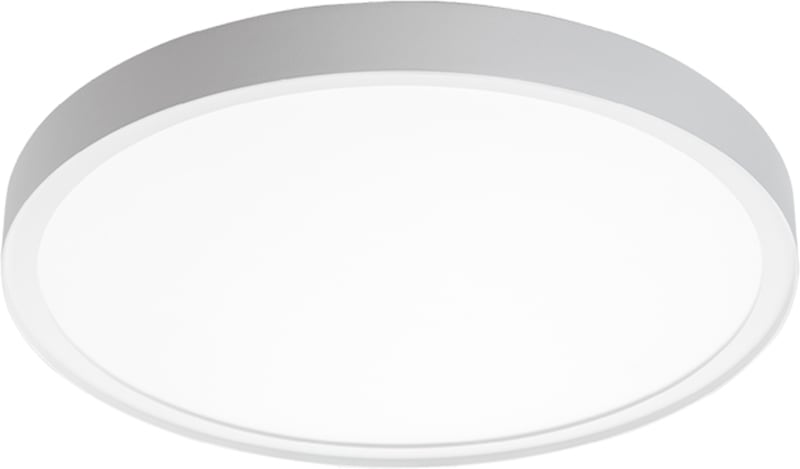

DISC 480 White 36W/827
Part number606000EAN / GTIN7021986060003HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606000 DISC 480 WHITE 2700K.
Technical Specifications
- Manufacturer part number (MPN)
- 606000
- EAN / GTIN
- 7021986060003
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 36 W
- Efficacy
- 110 lm/W
- Lumen
- 3410lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 31W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 3410lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Module
- 480
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 470
- Weight (kg) gross/net
- 4.845 / 4.433
- Packaging dimensions (mm)
- 490 x 485 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060003
- SAP 1200243992
- Code 82204936
Product Documentation
Document preview: DISC 480 White 36W/827 (606000) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense Basic Surface 300X1200 32W
212703
SG Armaturen
Sense Driver 900MA/4000LM Phase-cut
820492
SG Armaturen
Junistar ECO IN/OUT White 590LM 6W/930
905237
SG Armaturen
TUBE WALL White USB 8W/927 DIM
320800
SG Armaturen
ZIP 1T Aneto MINI White 6,5W/927
320793
SG Armaturen

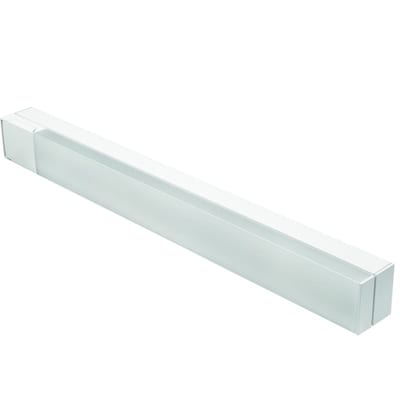

Prelude SQ White 16W/930 IP44 with Socket
111373
SG Armaturen

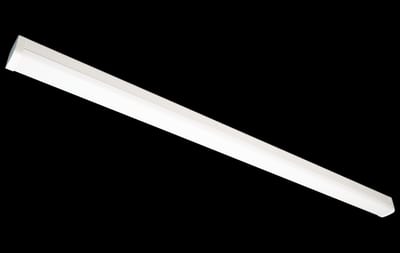

Hurdal 1500 31W/840 (113105)
SG Armaturen

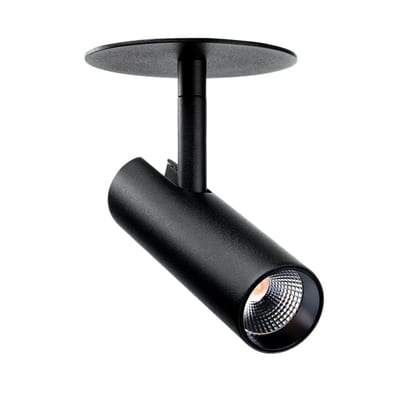

TUBE Micro R Black 15W/927 36°
