SG Armaturen

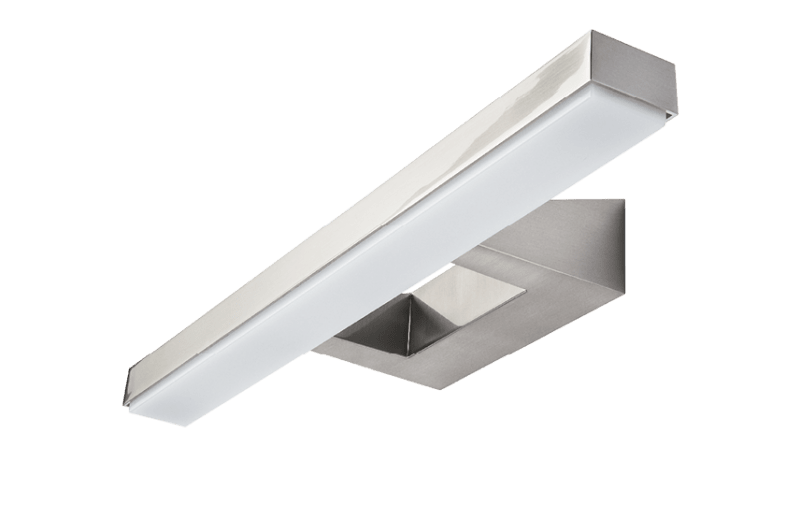

VIEW 460 Brushed Steel 16W/927 IP44
Part number197420EAN / GTIN7021981974206HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 197420 View brushed steel 2700K IP44 230V.
Technical Specifications
- Manufacturer part number (MPN)
- 197420
- EAN / GTIN
- 7021981974206
- Sales unit
- pcs
- Package quantity
- 10 pcs
- IP rating
- IP44
- Power
- 16 W
- Efficacy
- 72 lm/W
- Lumen
- 790lm
- IP Class
- IP44 (mounted horizontally) / IP20 (mounted vertically)
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 11W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 23, B16: 37, C10: 29, C16: 46
- Type of light source
- LED
- Luminous flux
- 790lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- UGR
- UGR<28
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Brushed steel
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 460
- Width (mm) W
- 135
- Height (mm) H
- 60
- Depth (D)
- 135
- Weight (kg) gross/net
- 1.1 / 0.917
- Packaging dimensions (mm)
- 470 x 142 x 68
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981974206
- SAP 1200056098
- Code 81904689
Product Documentation
Document preview: VIEW 460 Brushed Steel 16W/927 IP44 (197420) — Specification sheet
More from SG Armaturen
SG Armaturen
Ecoline Connect 1200 32W/830
212096
SG Armaturen
Ecoline 1200 D/In White 32W/830 DALI
212804
SG Armaturen
Junistar TUBE Square White 3X 2700K
902736
SG Armaturen

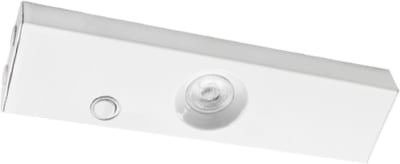

CHEF White 1X5W/927 (391051)
SG Armaturen

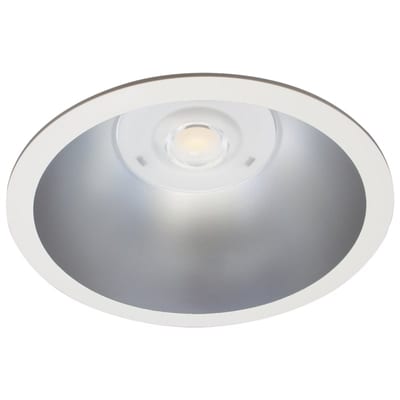

RAX SOFT 200 Satin 2200 18W/830
212518
SG Armaturen

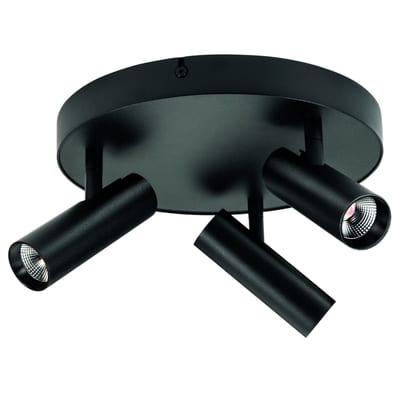

TUBE Micro TRIO Black 18W DTW 36°
320695
SG Armaturen

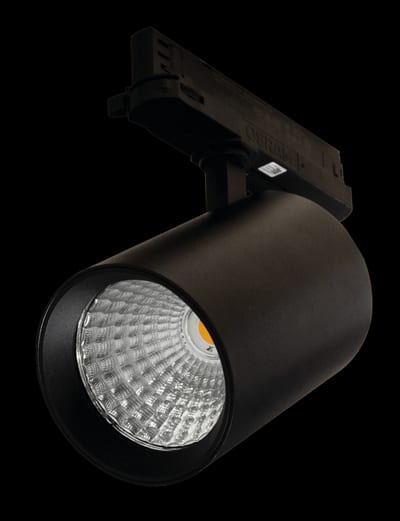

TUBE Compact 3T 30W/930 Black 36°
320705
SG Armaturen

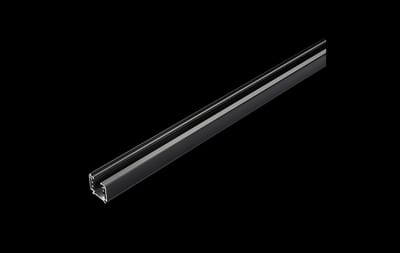

Shopline 3T 3M RAIL Black
