SG Armaturen

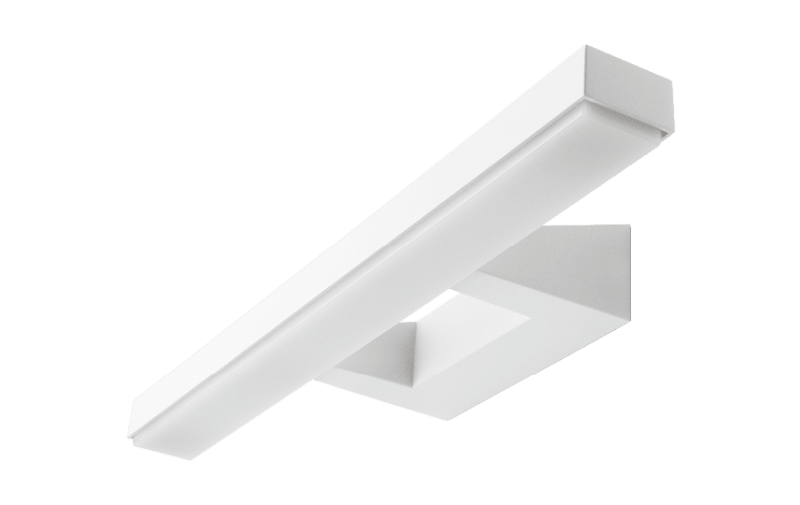

VIEW 460 White 16W/930 IP44
Part number111421EAN / GTIN7021981114213HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 111421 View matte white 3000K IP44 230V.
Technical Specifications
- Manufacturer part number (MPN)
- 111421
- EAN / GTIN
- 7021981114213
- Sales unit
- pcs
- Package quantity
- 10 pcs
- IP rating
- IP44
- Power
- 16 W
- Efficacy
- 84 lm/W
- Lumen
- 920lm
- IP Class
- IP44 (mounted horizontally) / IP20 (mounted vertically)
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 11W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 23, B16: 37, C10: 29, C16: 46
- Type of light source
- LED
- Luminous flux
- 920lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- UGR
- UGR<28
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 460
- Width (mm) W
- 135
- Height (mm) H
- 60
- Depth (D)
- 135
- Weight (kg) gross/net
- 0.976 / 0.802
- Packaging dimensions (mm)
- 470 x 142 x 70
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981114213
- SAP 1200056094
- Code 81904666
Product Documentation
Document preview: VIEW 460 White 16W/930 IP44 (111421) — Specification sheet
More from SG Armaturen
SG Armaturen
TRIO White 10W IP65 (611524)
SG Armaturen
Fagernes Bollard Anchor Bracket
630066
SG Armaturen

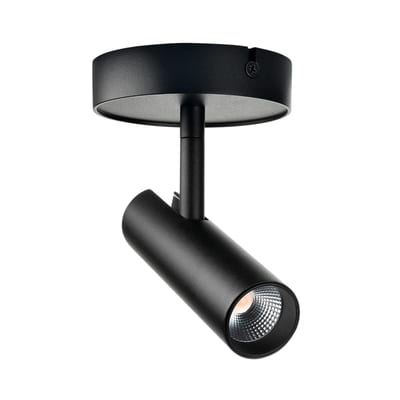

TUBE Micro S Black 7W/D2W 36° DIM
320811
SG Armaturen

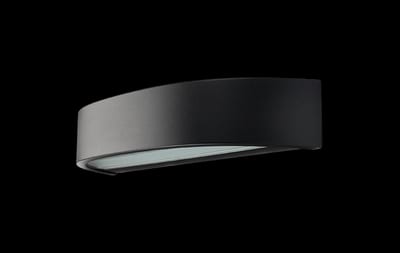

Curve Direct Black 7W/827
611396
SG Armaturen

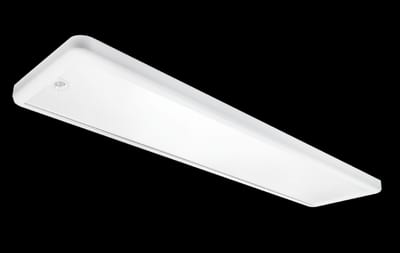

Sense Surface 300X1200 29W/840 PIR
212347
SG Armaturen

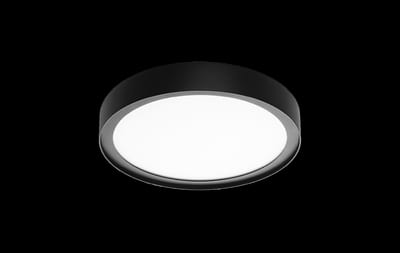

DISC 290 Black 17W/830 Sensor DIM
606047
SG Armaturen

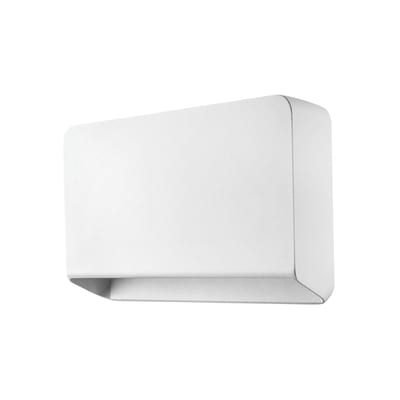

Arlon SQ White 10W/830
653607
SG Armaturen

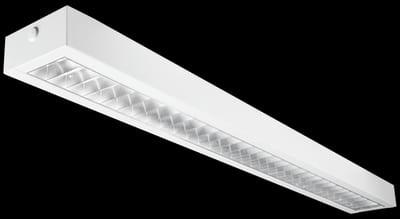

Ecoline Office 1200 23W/830
