SG Armaturen

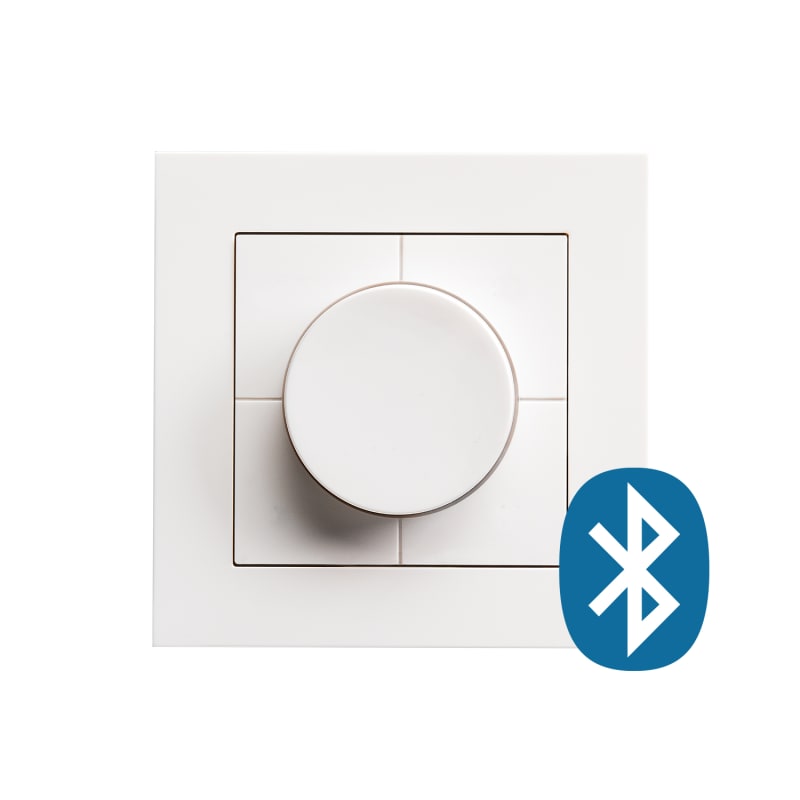

TW Jointim Smart 3.0
Part number820832EAN / GTIN7021988208328HS code8536.50
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820832 TW LEDDIM 3.0.
Technical Specifications
- Manufacturer part number (MPN)
- 820832
- EAN / GTIN
- 7021988208328
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Wattage
- 400VA
- IP Class
- IP20
- Mounting
- Recessed, Indoor
- Function
- Integrated time control and astronomical clock
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Type
- SG Smart/ TW LEDDim
- Luminaire class
- Class II
- Housing
- Polycarbonat (PC)
- Colour
- White (RAL 9003)
- Connection
- Screw terminal 0.5 - 2.5 mm²
- Length (mm) L
- 84
- Width (mm) W
- 84
- Height (mm) H
- 48
- Weight (kg) gross/net
- 0.153 / 0.1
- Packaging dimensions (mm)
- 90 x 90 x 65
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Method of operation
- Turn/push button
- Halogen free
- Yes
- Number of units
- 1
- Surface protection
- Untreated
- Power consumption
- 0.5 W
- Material quality
- Thermoplastic
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 9003
- Serial dimmer
- Yes
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal voltage
- 220–240 V
- Control voltage
- 220–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–4 mm²
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 48 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 29 mm
- App control via Bluetooth
- Yes
- Nominal power capacitive load
- 400 VA
- Compatible with Apple HomeKit
- Yes
- Compatible with Google Assistant
- Yes
- Compatible with Amazon Alexa
- Yes
- Max. switching power LED
- 320 W
- Min. brightness controllable
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988208328
- SAP 1201008604
- Code 84361952
Product Documentation
Document preview: TW Jointim Smart 3.0 (820832) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense ECO 300X1200 Opal prismatic 27W/840
212225
SG Armaturen
FLOM MINI 10W/830 IP65 Sensor
630019
SG Armaturen

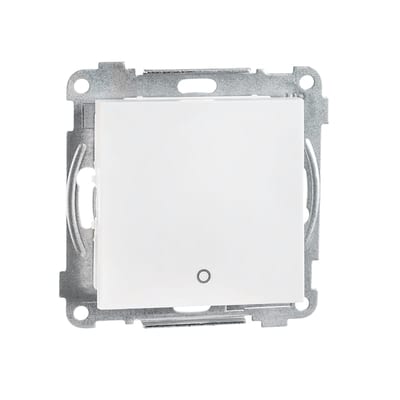

Switch IF 2-Pole S White
76012
SG Armaturen

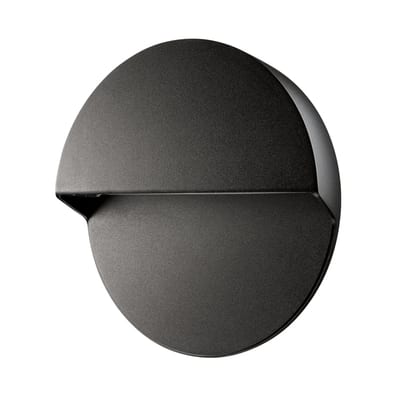

Arlon Round Black 10W/830
653601
SG Armaturen

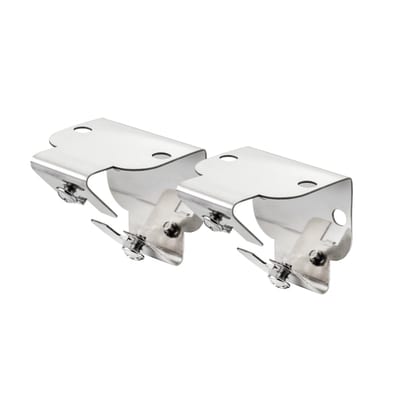

TYSNES66 Mounting bracket 45°
120063
SG Armaturen

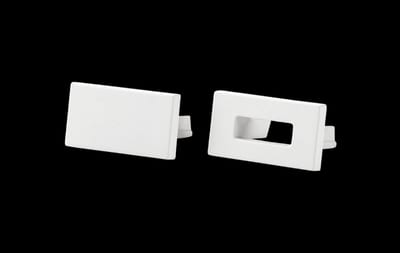

Stripline END CAP KIT SLIM White
391473
SG Armaturen

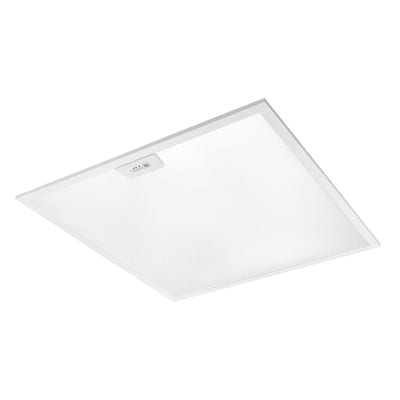

Sense Basic Connect 600X600 33W/840
212707
SG Armaturen

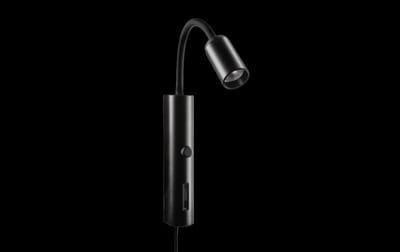

TUBE WALL Black USB 8W/930 DIM
