SG Armaturen

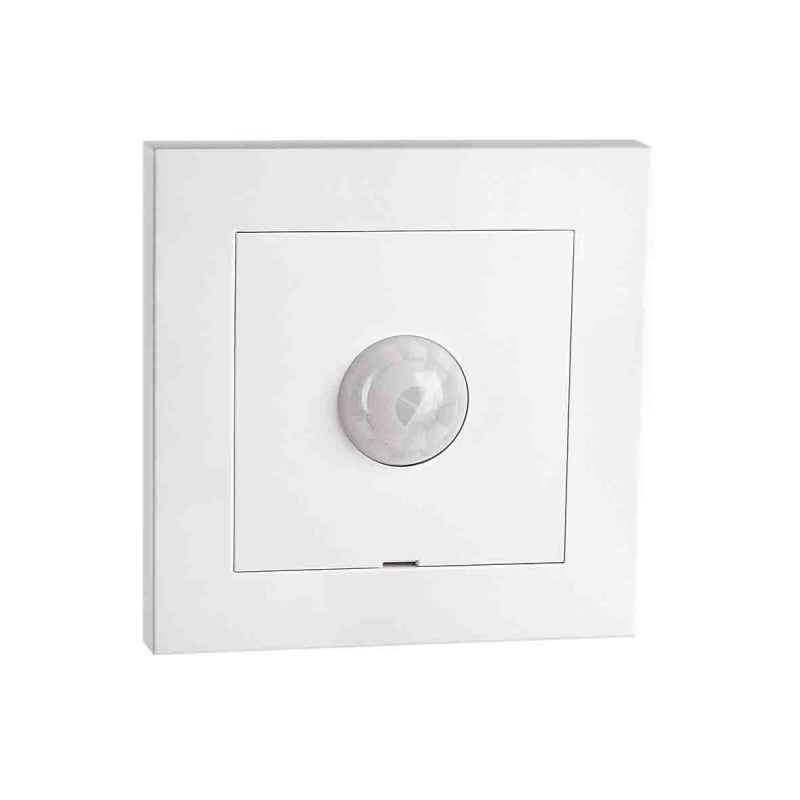

PIR WALL White (820471)
Part number820471EAN / GTIN7021988204719HS code8536.50
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820471 PIR Wall white.
Technical Specifications
- Manufacturer part number (MPN)
- 820471
- EAN / GTIN
- 7021988204719
- Sales unit
- pcs
- Wattage
- 200VA
- IP Class
- IP20
- Mounting
- Recessed, Indoor
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Type
- PIR Sensor
- Housing
- Polycarbonat (PC)
- Colour
- White (RAL 9003)
- Length (mm) L
- 84
- Width (mm) W
- 84
- Height (mm) H
- 42
- Weight (kg) gross/net
- 0.074 / 0.07
- Packaging dimensions (mm)
- 90 x 50 x 90
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Width
- 84 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 84 mm
- Depth
- 42 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Built-in depth
- 23.5 mm
- With remote control
- No
- Diameter
- 58 mm
- Suitable for wall mounting
- Yes
- Built-in width
- 50 mm
- Built-in diameter
- 58 mm
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 6 m
- Max. reach sideways
- 4 m
- Max. switching power
- 160 W
- Temperature
- -20–35 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 20–200 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 3 m
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- Yes
- Substation input
- No
- RAL-number (similar)
- 9003
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 360 °
- Built-in length
- 50 mm
- Impact strength
- IK00
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 0–110 °
- Min. switch-on time
- 30 s
- Max. duty cycle
- 30 min
- Response value luminosity adjustable
- No
- Optimum mounting height
- 1.2 m
- Pivoting range sensor, horizontal
- 0–110 °
- Pivoting range sensor, vertical
- 0–110 °
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 24 mm
- Max. presence range
- 50 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 160 W
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- No
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988204719
- SAP 1200597292
- Code 82979343
Product Documentation
Document preview: PIR WALL White (820471) — Specification sheet
More from SG Armaturen
SG Armaturen
Stripline Driver 24V 75W Phase-cut
820441
SG Armaturen
Wallb Single 9-24mm 8-Run
1202565
SG Armaturen

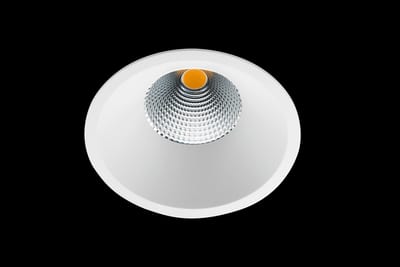

SOFT SLIM White 9W/927
903214
SG Armaturen

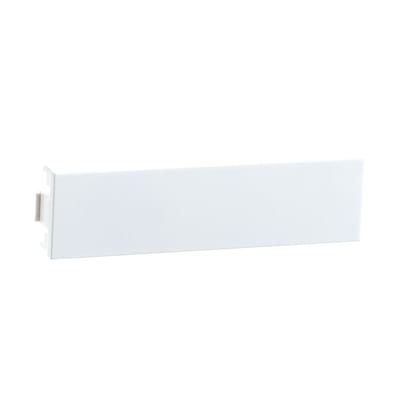

SIDE Cover White (1401037)
SG Armaturen

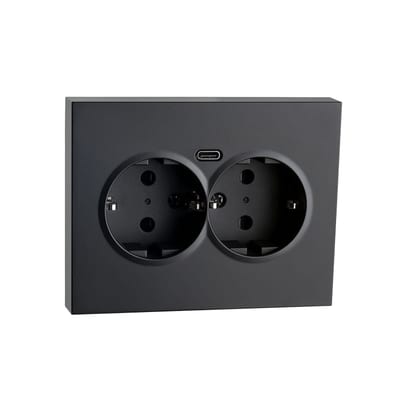

Socket IF Double M USB-C 1,5 BOX Black
6603306
SG Armaturen

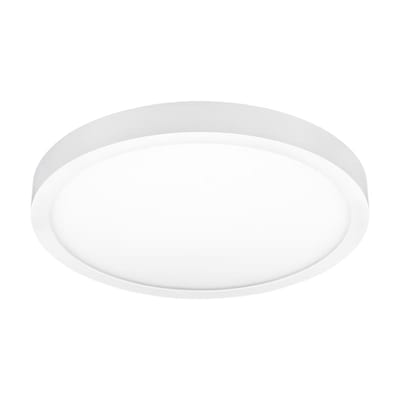

Farsund SLIM 300 White 1700LM 14W/830
