SG Armaturen

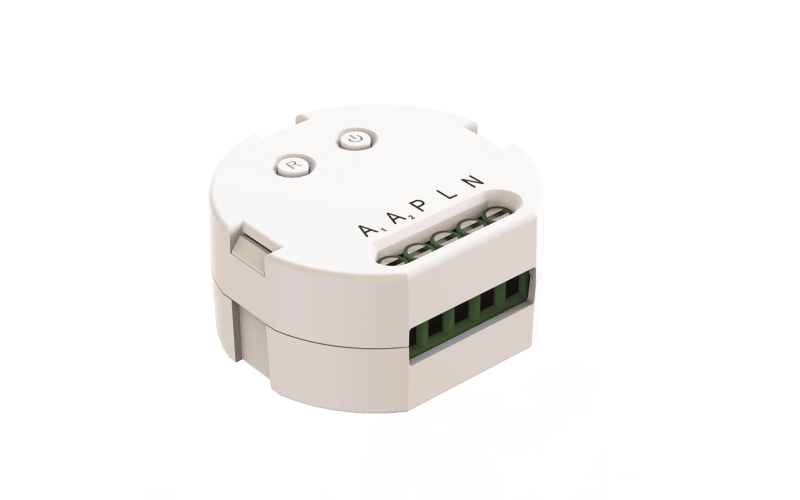

Smart PILL White ON-OFF
Part number820387EAN / GTIN7021988203873HS code8536.50
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820387 PILL ON-OFF.
Technical Specifications
- Manufacturer part number (MPN)
- 820387
- EAN / GTIN
- 7021988203873
- Sales unit
- pcs
- Package quantity
- 160 pcs
- Product segment
- Smart home
- Mounting method
- Built-in
- Assembly arrangement
- Basic element
- Colour
- White
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 1 W
- Frequency
- 50–60 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal
- Material
- Plastic
- Light value memory
- No
- Substation input
- No
- RAL-number (similar)
- 9003
- Serial dimmer
- No
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- Yes
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal power
- 0–3000 VA
- Nominal voltage
- 220–240 V
- Control voltage
- 220–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–4 mm²
- Device width
- 48 mm
- Device height
- 46 mm
- Device depth
- 24 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 24 mm
- App control via Bluetooth
- Yes
- Nominal power resistive load
- 3000 W
- Nominal power capacitive load
- 3000 VA
- Compatible with Apple HomeKit
- Yes
- Compatible with Google Assistant
- Yes
- Compatible with Amazon Alexa
- Yes
- Max. switching power LED
- 3000 W
- Min. brightness controllable
- No
- Device emplacement
- Indoor positioning
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988203873
- SAP 1200381350
- Code 82392613
Product Documentation
Document preview: Smart PILL White ON-OFF (820387) — Specification sheet
