SG Armaturen

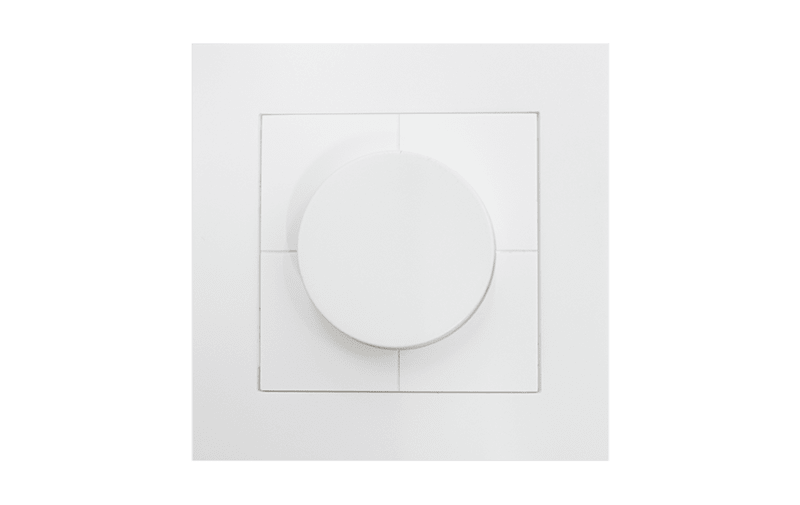

Jointim White DALI TW
Part number820415EAN / GTIN7021988204153HS code8536.50
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820415 LEDDIM DALI WHITE.
Technical Specifications
- Manufacturer part number (MPN)
- 820415
- EAN / GTIN
- 7021988204153
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Replaces
- 820338
- IP Class
- IP20
- Mounting
- Recessed, Indoor
- Standby power
- 0.30W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Type
- DALI-2
- Housing
- Polycarbonat (PC)
- Colour
- White (RAL 9003)
- Length (mm) L
- 83
- Width (mm) W
- 83
- Height (mm) H
- 38
- Ceiling void depth (mm)
- 29
- Weight (kg) gross/net
- 0.1 / 0.08
- Packaging dimensions (mm)
- 83 x 83 x 41
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Method of operation
- Turn/push button
- Halogen free
- Yes
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 9003
- Serial dimmer
- No
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- Yes
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal power
- 3–400 VA
- Nominal voltage
- 200–240 V
- Control voltage
- 220–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–4 mm²
- Device width
- 83.5 mm
- Device height
- 83.5 mm
- Device depth
- 28.35 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 28.35 mm
- App control via Bluetooth
- Yes
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988204153
- SAP 1200457282
- Code 82528446
Product Documentation
Document preview: Jointim White DALI TW (820415) — Specification sheet
