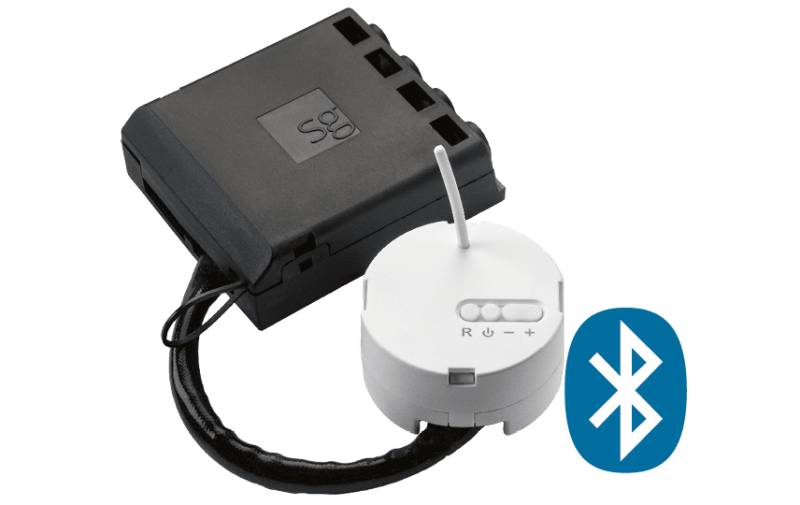

Jointim Smart White PILL 200VA
Part number820336EAN / GTIN7021988203361HS code8536.50
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820336 LEDDIM PILL 200VA.
Technical Specifications
- Manufacturer part number (MPN)
- 820336
- EAN / GTIN
- 7021988203361
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Product segment
- Smart home
- Mounting method
- Built-in
- Assembly arrangement
- Basic element
- Colour
- White
- Halogen free
- Yes
- Number of units
- 1
- Surface protection
- Untreated
- Power consumption
- 1 W
- Frequency
- 50–60 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 9003
- Serial dimmer
- Yes
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- No
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal power
- 3–400 VA
- Nominal voltage
- 220–240 V
- Control voltage
- 220–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–2.5 mm²
- Device width
- 48 mm
- Device height
- 48 mm
- Device depth
- 26 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 29 mm
- App control via Bluetooth
- Yes
- Nominal power resistive load
- 200 W
- Nominal power capacitive load
- 200 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 160 W
- Min. brightness controllable
- Yes
- Device emplacement
- Indoor positioning
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988203361
- SAP 1200133111
- Code 81986438
Product Documentation
Document preview: Jointim Smart White PILL 200VA (820336) — Specification sheet
More from SG Armaturen
SG Armaturen
FLOM MIDI 23W/830 IP65 Sensor
630021
SG Armaturen
Jupiter TEK White 6W/927
912170
SG Armaturen
Soft SLIM Gold 9W/927
903234
SG Armaturen
CUBE LUX White 2X7W/927
902548
SG Armaturen

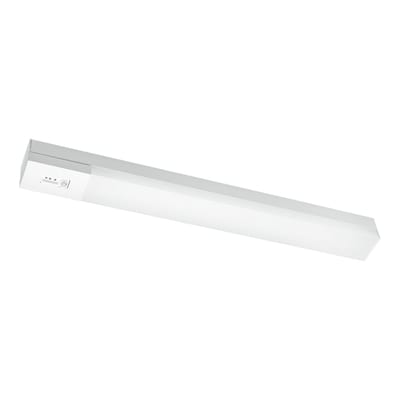

Prelude Square Connect White 3000K
111440
SG Armaturen

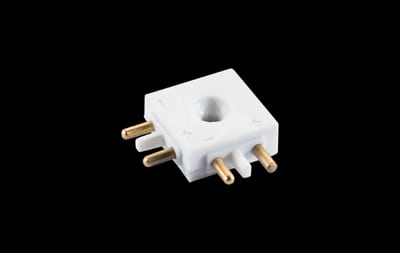

Slimline L-Joint White
391210
SG Armaturen

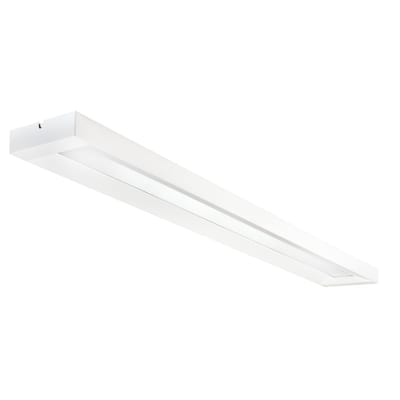

Ecoline 1200 White 32W/830 DALI
212093
SG Armaturen

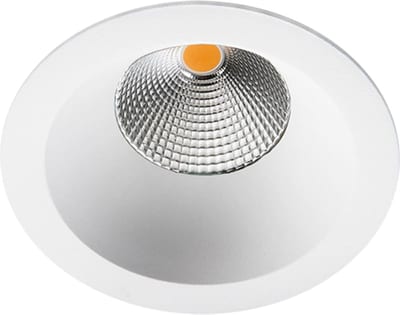

Junistar SOFT White 9W/930 DALI
