Product Description

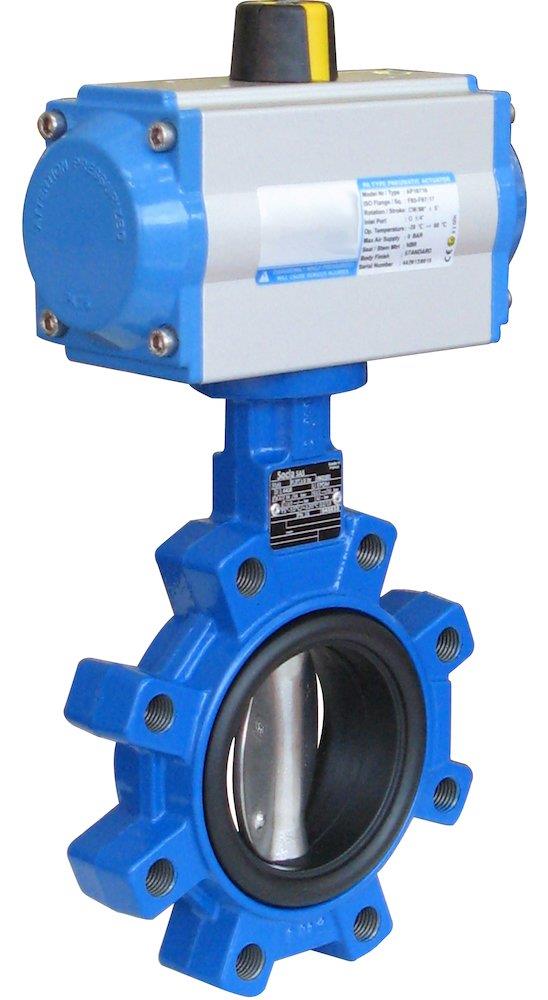

Sferaco 1133 Butterfly valve GG25/316/EPDM LUG double-acting. Butterfly valves with actuator (Technique / Industrial valves / Butterfly valves). Principal data: dn dimension 50, pressure pn 16 bar. Supplied under manufacturer part number 10402617, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Butterfly valves with actuator Product group: Industrial valves DN dimension: 50 Pressure PN: 16 bar Temperature max: 110 °C Temperature min: -15 °C Length built-in dimension: 43 mm House: Cast iron GG25 Disc / dampers: acid-resistant CF8M (AISI 316) Liner / packing: EPDM Actuator: PA40DA 20 nm Top flange: F05 -9 mm ISO top flange: 5211 Breakaway torque: 12 nm Country of origin: Denmark Customs tariff code (EU CN): 84818085 HS code: 8481.80 Manufacturer part number: 10402617
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 10402617
