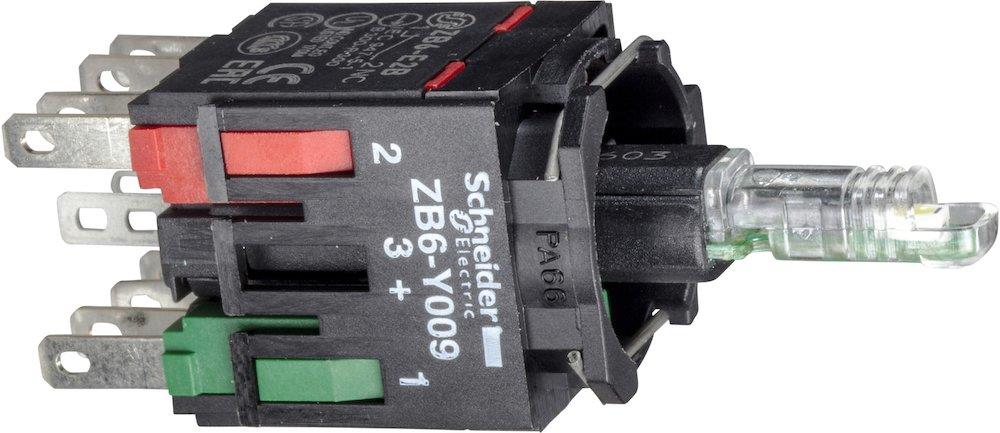

Schneider ZB6 Lamp Actuator Body with LED - Harmony XB6, red, 12 - 24V, 1NO - 1NC

Schneider ZB6 Lamp Actuator Body with LED. Push buttons (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XB6, color Red, voltage 12 to 24 V, contact type 1NO -1NC. Supplied under manufacturer part number ZB6ZB45B, EAN 3389110784466, HS code 8536.50, country of origin France.

Product type

Push buttons

Product group

Push buttons and signal units

Series

Harmony XB6

Color

Red

Voltage

12 to 24 V

Contact type

1NO -1NC

REACH SVHC substance above 0.1%

Lead, Lead-monoxide

Carbon footprint (EPD)

0.0630 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

ZB6ZB45B

Range of product

Harmony XB6

Product or component type

Complete body for illuminated push-button

Device short name

ZB6

Fixing collar material

Plastic

Sale per indivisible quantity

1

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Faston connector, connection size: 2.8 x 0.5 mm

Light source

LED

Bulb base

Integral LED

Light source colour

Red

[Us] rated supply voltage

12...24 V AC/DC

CAD overall width

24 mm

CAD overall height

18 mm

CAD overall depth

51 mm

Terminals description ISO n°1

(11-12)NC

Product weight

0.009 kg

Contacts usage

Standard

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1 mm (NC changing electrical state); 2 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

1.6 N NO changing electrical state; 2.5 N NC changing electrical state

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300; 1.5 A at 240 V, AC-15, B300; 0.1 A at 250 V, DC-13, R300; 0.22 A at 125 V, DC-13, R300

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Signalling type

Steady

Supply voltage limits

6…30 V AC/DC

Current consumption

15 mA

Surge withstand

1 kV direct contact conforming to IEC 61000-4-5; 2 kV in free air conforming to IEC 61000-4-5

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

Standards

CSA C22.2 No 14; JIS C 852; IEC 60947-1; UL 508; IEC 60947-5-5; IEC 60947-5-1; JIS C 4520

Product certifications

GOST; CCC; UL; CSA

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-2-6; 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6

Electromagnetic emission

Class B conforming to IEC 55011

Number of Units in Package 1

1

Number of Units in Package 2

80

Warranty (in months)

18

EAN

3389110784466

HS Code

8536.50

• EAN 3389110784466
• MPN ZB6ZB45B
