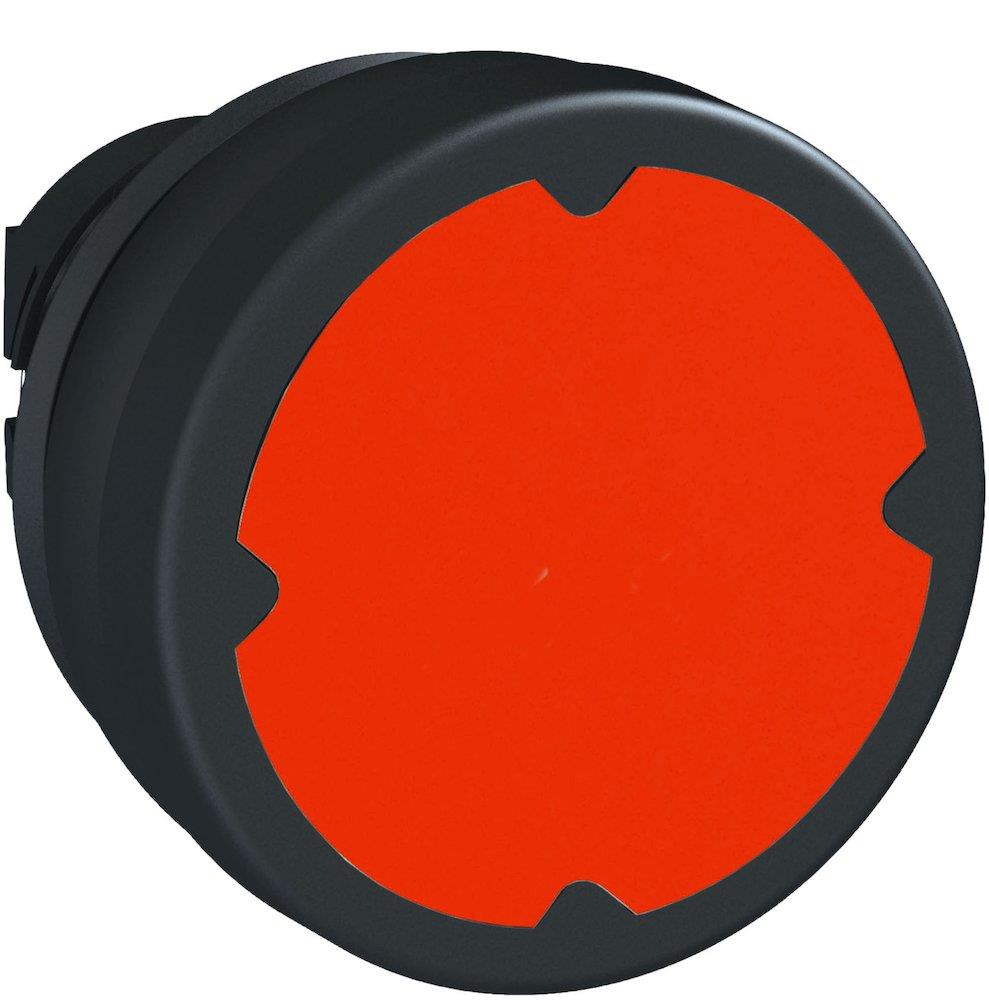

Schneider ZB5 Push Button Head with 37mm head - Harmony XB5, red

Schneider ZB5 Push Button Head with 37mm head. Push buttons (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XB5, color Red. Supplied under manufacturer part number ZB5AC480, EAN 3606480444821, HS code 8536.50, country of origin France.

Product type

Push buttons

Product group

Push buttons and signal units

Series

Harmony XB5

Color

Red

Diameter

22 mm

Carbon footprint (EPD)

0.1484 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

ZB5AC480

Range of product

Harmony XB5

Product or component type

Head for push-button

Device short name

ZB5

Bezel material

Black plastic

Head type

Standard

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator additional information

Vertical mounting; Horizontal mounting

CAD overall width

37 mm

CAD overall height

18.5 mm

CAD overall depth

37 mm

Product weight

0.024 kg

Resistance to high pressure washer

90 Pa at 82.5 °C

Operator profile

Red flush, unmarked

Mechanical durability

10000000 cycles

Electrical composition code

C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting

Device presentation

Basic element

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP66 conforming to IEC 60529; IP69K; IP67

Enclosure Type

UL type 4/13

IK degree of protection

IK03 conforming to IEC 62262

Standards

IEC 60947-5-1; UL 508; IEC 60947-1; CSA C22.2

Product certifications

CE; UL; CSA

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

100

Warranty (in months)

18

EAN

3606480444821

HS Code

8536.50

• EAN 3606480444821
• MPN ZB5AC480
