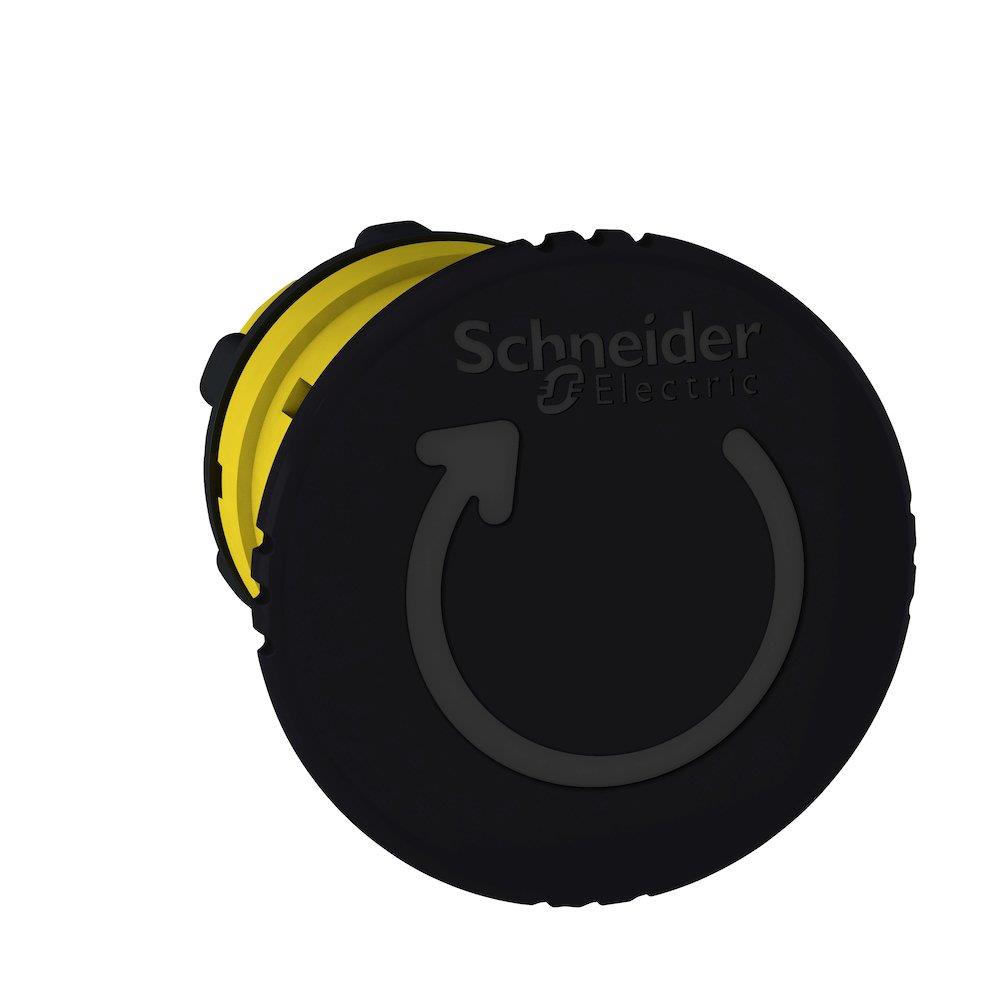

Schneider ZB5 Paddle Actuator Head - Harmony XB5, 40mm, black-yellow, Push - Drej

Schneider ZB5 Paddle Actuator Head. Pedal pressure and emergency stop button (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB5, diameter 40 mm, color Black-Yellow, operation Pressure - Drej. Supplied under manufacturer part number ZB5AS842Y, EAN 3606480611018, HS code 8536.50, country of origin Czechia.

Product type

Pedal pressure and emergency stop button Product group: Push buttons and signal units Series: Harmony XB5 Diameter: 40 mm Color: Black-yellow Operation: Pressure - Drej Carbon footprint (EPD): 0.2536 kg CO2e per pcs Country of origin: Czechia Customs tariff code (EU CN): 85365080 HS code: 8536.50 Manufacturer part number: ZB5AS842Y Range of product: Harmony XB5 Product or component type: Head Product destination: General safe stop push button Device short name: ZB5 Bezel material: Dark grey plastic Head type: Standard Mounting diameter: 22 mm Sale per indivisible quantity: 1 Shape of signaling unit head: Round Type of operator: trigger action and mechanical latching Reset: Turn to release Operator profile: Black mushroom Ø 30 mm, unmarked CAD overall width: 30 mm CAD overall height: 30 mm CAD overall depth: 56 mm Product weight: 0.05 kg Mechanical durability: 300000 cycles Station name: XALD 1...5 cut-outs; XALK 1...5 cut-outs Electrical composition code: C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting; C10 for <4 contacts using single and double blocks in front mounting Compatibility code: ZB5 Protective treatment: TH Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -40…70 °C Overvoltage category: Class II conforming to IEC 60536 IP degree of protection: IP66 conforming to IEC 60529; IP67; IP69; IP69K Enclosure Type: UL type 4X/13 Resistance to high pressure washer: 7000000 Pa at 55 °C, distance : 0.1 m IK degree of protection: IK03 conforming to IEC 50102 Standards: UL 508; IEC 60364-5-53; JIS C8201-5-1; CSA C22.2 No 14; GB 14048.5; JIS C8201-1 Product certifications: LROS (Lloyds register of shipping); UL listed; BV; CSA Vibration resistance: 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 Shock resistance: 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27 Number of Units in Package 1: 1 Number of Units in Package 2: 100 Warranty (in months): 18 EAN: 3606480611018

HS Code

8536.50

• EAN 3606480611018
• MPN ZB5AS842Y
