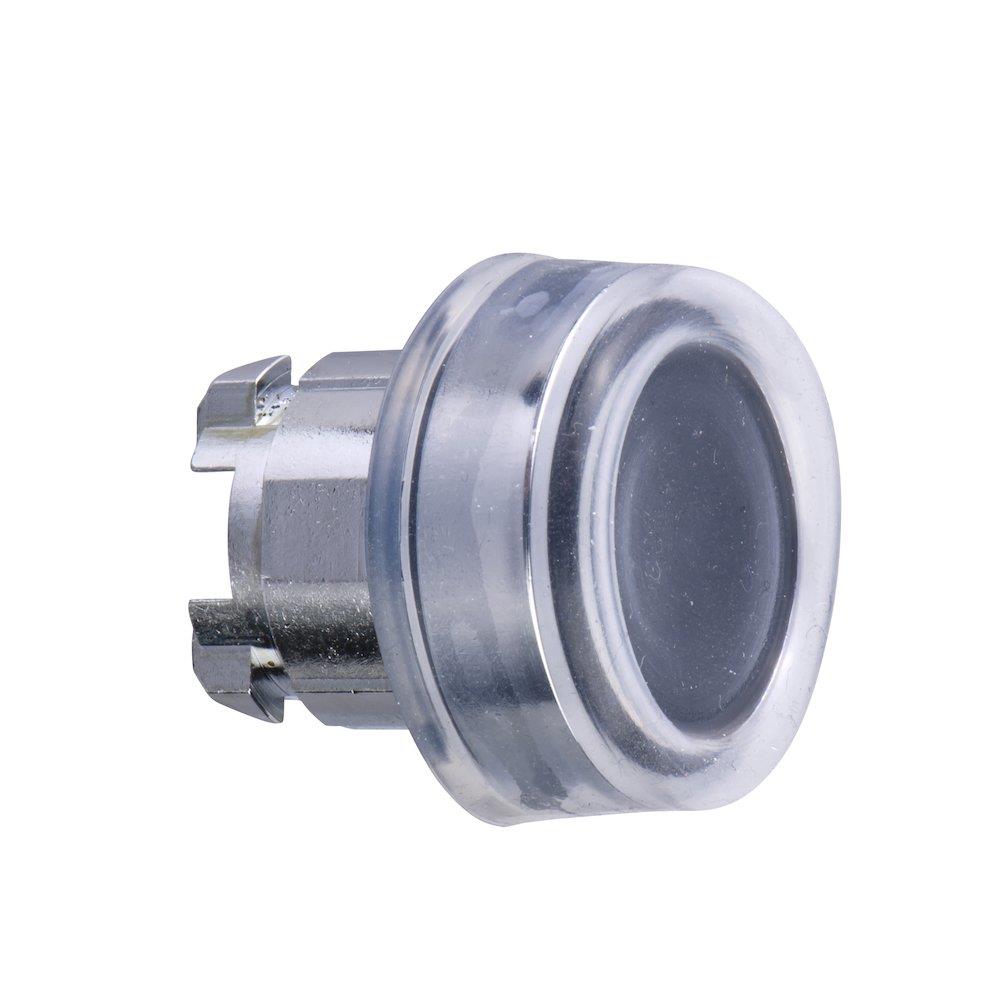

Schneider ZB4 Push Button Head with clear silicone cap and spring return - Harmony XB4, black
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider ZB4 Push Button Head with clear silicone cap and spring return. Push buttons (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XB4, color Black. Supplied under manufacturer part number ZB4BPA2, EAN 3389110966527, HS code 8538.90, country of origin France.
Technical Specifications
- Product type
- Push buttons
- Product group
- Push buttons and signal units
- Series
- Harmony XB4
- Color
- Black
- REACH SVHC substance above 0.1%
- Octamethylcyclotetrasiloxane
- Carbon footprint (EPD)
- 0.1408 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85389099
- HS code
- 8538.90
- Manufacturer part number
- ZB4BPA2
- Range of product
- Harmony XB4
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB4
- Product compatibility
- not compatible with legend holder
- Bezel material
- Chromium plated metal
- Mounting diameter
- 22.5 mm
- Sale per indivisible quantity
- 1
- Head type
- Standard
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Black flush, unmarked
- Operator additional information
- Clear boot
- Cap/operator or lens colour
- Black
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 37 mm
- Mechanical durability
- 10000000 cycles
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67
- Enclosure Type
- UL type 4X/13
- IK degree of protection
- IK06 conforming to IEC 50102
- Standards
- IEC 60947-5-1; IEC 60947-1; IEC 60947-5-4; UL 508; JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-5-5; JIS C8201-1
- Product certifications
- BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Warranty (in months)
- 18
- EAN
- 3389110966527
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110966527
- MPN ZB4BPA2
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider LC1D Contactor - TeSys D, 150A, 3P, 48 ACV
LC1D150E7
Schneider Electric
Schneider Door - PanelSet SF, 300 x 800mm, PanelSet SF, steel
NSYMPD6M8
Schneider Electric

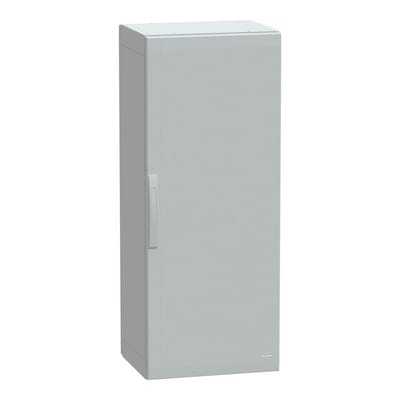

Schneider Thalassa PLA Floor Cabinet - 1250 x 500mm, 420mm 3606480774614
NSYPLA1254G
Schneider Electric

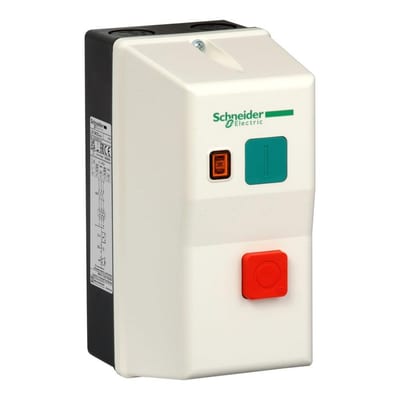

Schneider LE1M Motor Starter - 220V, 1.1kW, 65
LE1M35P708
Schneider Electric

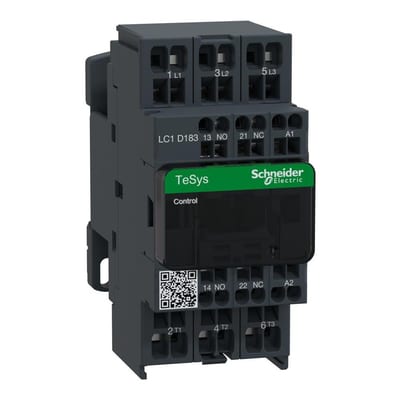

Schneider LC1D Contactor - TeSys D, 18A, 3P, 110 ACV
LC1D183F7
Schneider Electric

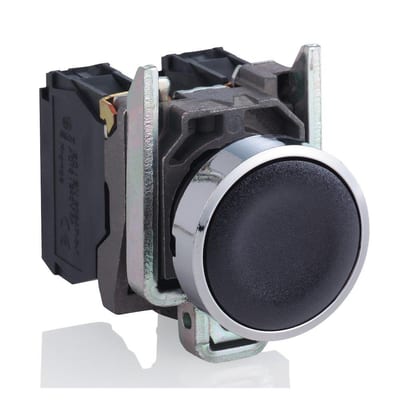

Schneider XB4 Push Button - Harmony XB4, black, 1NO - 1NC
XB4BA25
Schneider Electric

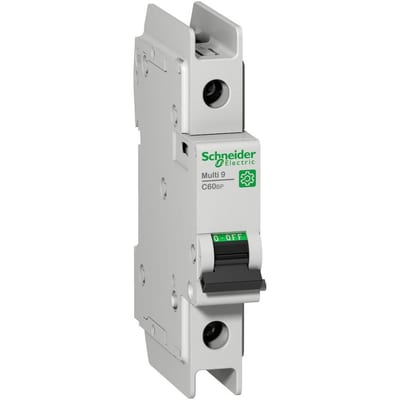

Schneider MULTI9 C60BP Circuit breaker - MULTI9 C60, 10A, 1P, C
M9F42110
Schneider Electric

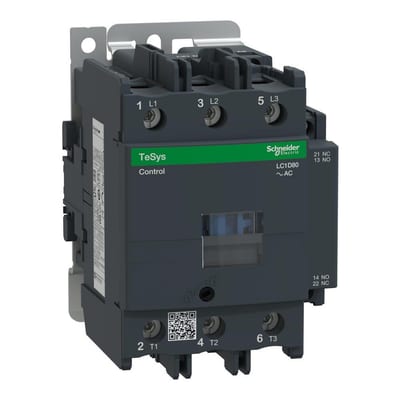

Schneider LC1D Contactor - TeSys D, 80A, 3P, 42 ACV
