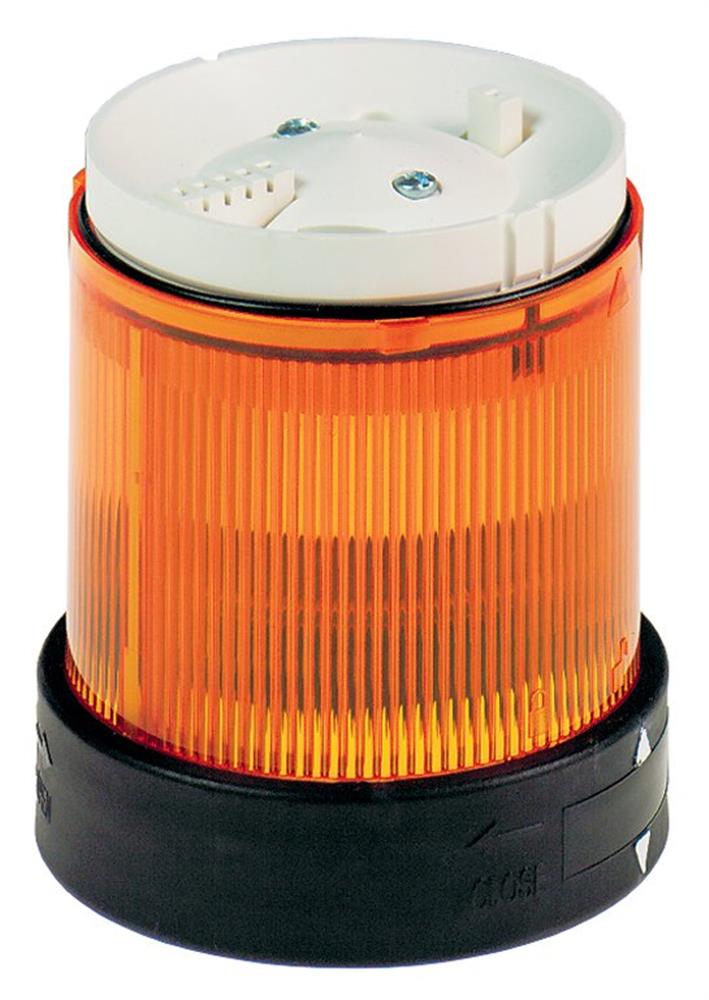

Schneider XVBC Light unit - Harmony XVB Universal, 12 - 230 AC/DCV, Orange, Fast, 70mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider XVBC Light unit. Signal units (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XVB Universal, voltage 12 -230 V AC/DC, color Orange, type Fixed. Supplied under manufacturer part number XVBC35, EAN 3389110845082, HS code 8531.90, country of origin France.
Technical Specifications
- Product type
- Signal units
- Product group
- Push buttons and signal units
- Series
- Harmony XVB Universal
- Voltage
- 12 -230 V AC/DC
- Color
- Orange
- Type
- Fixed
- Diameter
- 70 mm
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Lead, Diboron-trioxide, Lead-monoxide, Diarylmethane
- Sales unit
- Carton
- Carbon footprint (EPD)
- 2.6770 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85319000
- HS code
- 8531.90
- Manufacturer part number
- XVBC35
- Range of product
- Harmony XVB Universal
- Product or component type
- Indicator bank
- Beacon or indicator bank unit type
- Illuminated unit
- Signalling type
- Steady
- Mounting diameter
- 70 mm
- Component name
- XVBC
- Material
- Polycarbonate
- Light source
- Bulb not included, orange
- Bulb type
- Incandescent with BA 15d base; Protected LED
- [Us] rated supply voltage
- <= 250 V
- Assembly style
- Customer assembly, up to 5 units
- Maximum power dissipation in W
- 7 W
- Connections - terminals
- Screw clamp terminals, <= 1 x 1.5 mm² with cable end
- [Ui] rated insulation voltage
- 250 V conforming to IEC 60947-1
- Nominal voltage limit
- 0.85...1.1 Un conforming to IEC 60947-5-1
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to IEC 60947-1
- CAD overall width
- 70 mm
- CAD overall height
- 63 mm
- CAD overall depth
- 70 mm
- Pollution degree
- 2
- Product certifications
- CCC; EAC; CSA C22-2 No 14; UL 508
- Standards
- IEC 60947-5-1
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…50 °C: LED; -25…70 °C: incandescent
- Electrical shock protection class
- Class I on support tube conforming to IEC 61140; Class II on base unit conforming to IEC 61140
- IP degree of protection
- IP65 on fixing base XVBZ0. conforming to IEC 60529; IP66 on base unit conforming to IEC 60529
- NEMA degree of protection
- UL type 4X conforming to UL (indoor)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 36
- Number of Units in Package 3
- 288
- Warranty (in months)
- 18
- EAN
- 3389110845082
