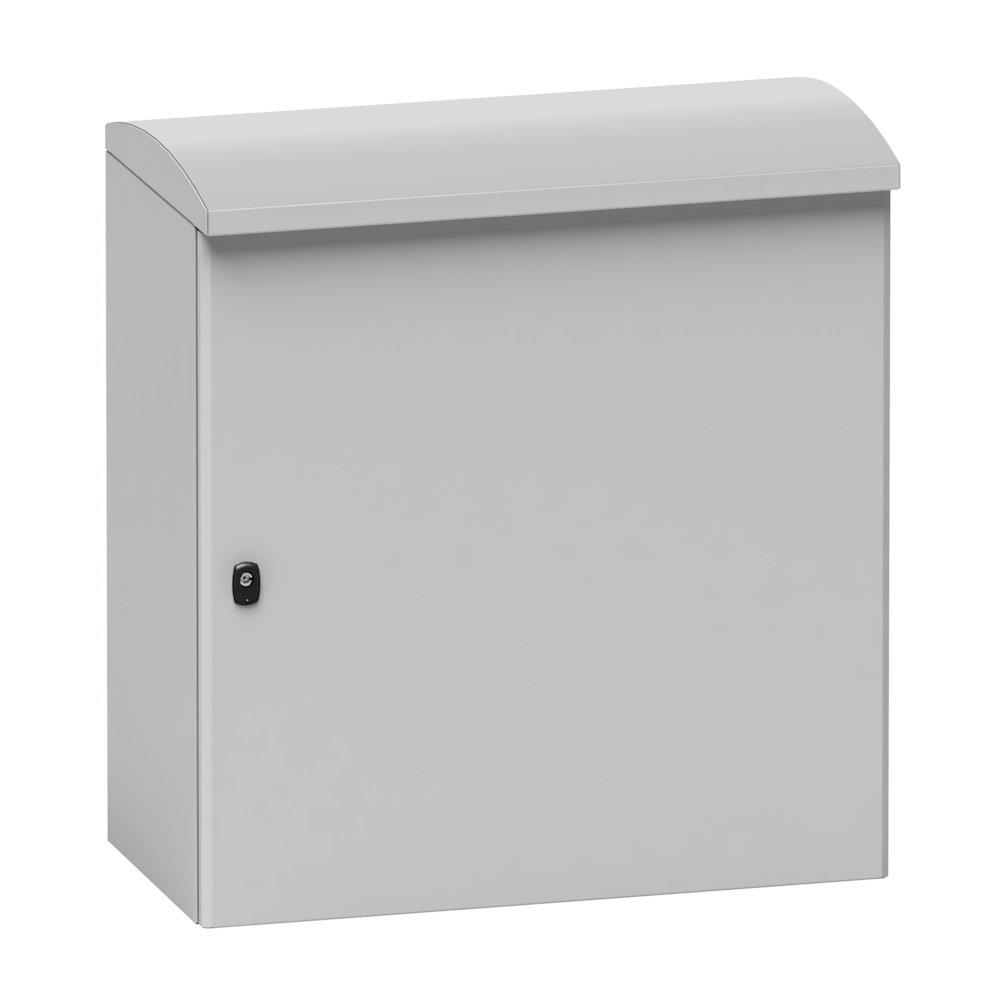

Schneider PanelSet S3D Wall cabinet - PanelSet S3D, 800X600MM, 300mm, steel, 66
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider PanelSet S3D Wall cabinet. Wall cabinets (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: series PanelSet S3D, size 800x600 mm, depth 300 mm, material Steel. Supplied under manufacturer part number NSYS3HD8630, EAN 3606480672149, HS code 9403.20, country of origin France.
Technical Specifications
- Product type
- Wall cabinets
- Product group
- Tables, cabinets, and boxes
- Series
- PanelSet S3D
- Size
- 800x600 mm
- Depth
- 300 mm
- Material
- Steel
- Protection class (IP)
- 66
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 92.9415 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 94032080
- HS code
- 9403.20
- Manufacturer part number
- NSYS3HD8630
- Range
- Spacial
- Product name
- Spacial S3HD
- Installation type
- Multi-purpose
- Specific application
- Outdoor heavy duty
- Category
- Compact enclosure
- Enclosure nominal height with canopy
- 858 mm
- Canopy nominal height
- 58 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth with canopy
- 330 mm
- Enclosure nominal depth
- 300 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Cable gland plate type
- Plain aluminium
- Installation accessory type
- Wall-mounting; Floor-standing with plinth
- Device composition
- 1 body; 1 door; 1 lock; 1 door retainer; 1 canopy; 1 cable gland plate; 1 document pocket
- Certification
- UL conforming to UL 508 A 2007; Bureau Veritas conforming to IEC 61969-3 2011; Bureau Veritas conforming to IEC 61439-5 2010; DEKRA conforming to IEC 62208 2011; Bureau Veritas conforming to ISO 12944 2007
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Canopy by screws
- Maximum lifting load
- 200 kg
- Surface finish
- Enclosure: polyester powder
- Colour
- Grey (RAL 7035)
- Product weight
- 26.6 kg
- Standards
- IEC 61969-3; IEC 61439-5; IEC 62208; UL 508 A
- IP degree of protection
- IP66 enclosure protection conforming to IEC 60529 class 2
- IK degree of protection
- IK10 conforming to IEC 62262
- Climatic withstand
- C4H conforming to ISO 12944 720 h salt mist
- Ambient air temperature for operation
- -45…80 °C conforming to IEC 61969-3 class 1
- Corrosion withstand
- 90…100 % 40 °C conforming to ISO 12944 C4H
- Environmental withstand
- Solar radiation: class 1 up to 1120 W/m² conforming to IEC 61969-3:2011; Surrounding air withstand: class 1 up to 180 km/h conforming to IEC 61969-3:2011; Ultraviolet degradation test: class 1 conforming to ISO 4892-2:2013; Formation of ice and frost: class 1 conforming to IEC 61969-3:2011; Fauna and flora withstand: class 1 conforming to IEC 61969-3:2011; : class 1 conforming to IEC 61969-3:2011
- Thermal management options
- Fan: 1500 W for a maximum noise level of 60 dB
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Warranty (in months)
- 18
- EAN
- 3606480672149
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480672149
- MPN NSYS3HD8630
