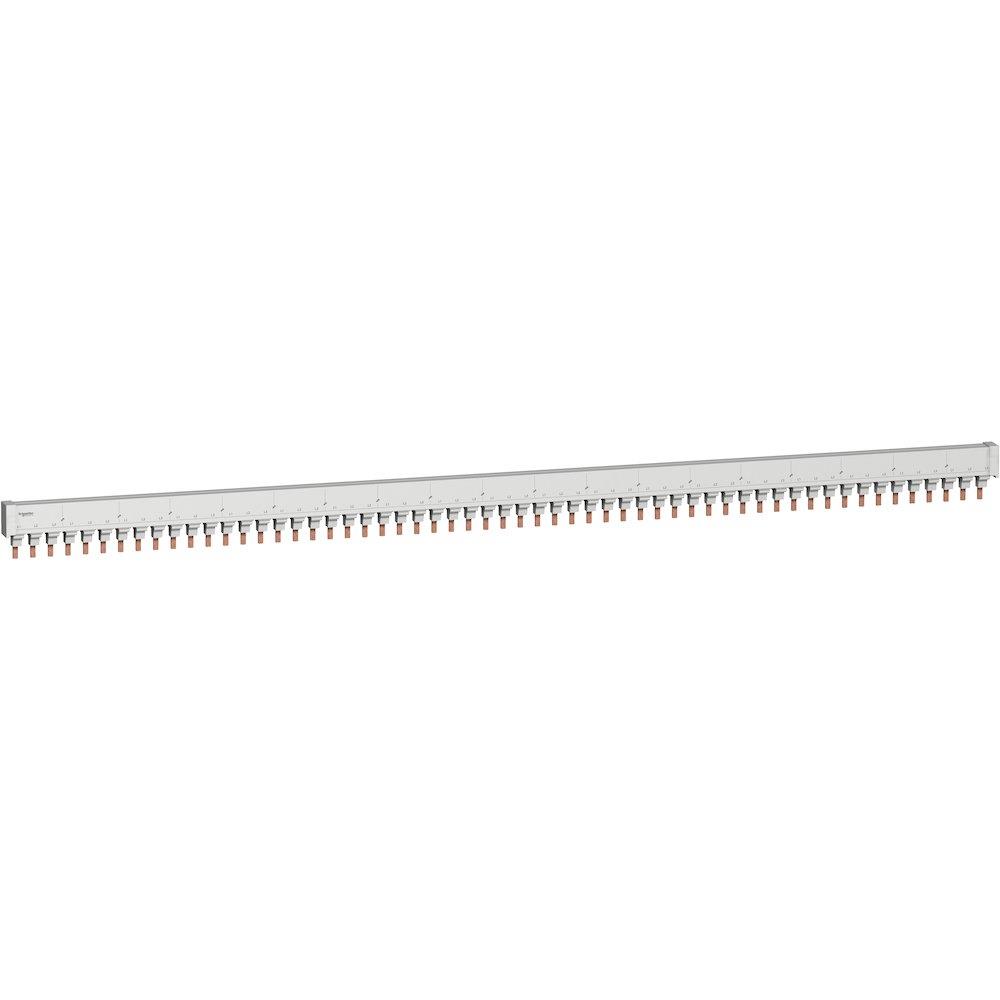

Schneider MULTI9 C60 OEM Loop Rail - 3606481192882
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Multi9 C60 OEM Loop Rail. Accessories for fuses (Electrical Engineering / Components for panels and boxes / Fuses and accessories). Supplied under manufacturer part number M9XCP256, EAN 3606481192882, HS code 8536.90, country of origin Germany.
Technical Specifications
- Product type
- Accessories for fuses
- Product group
- Components for panels and boxes
- Carbon footprint (EPD)
- 8.2771 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 85369010
- HS code
- 8536.90
- Manufacturer part number
- M9XCP256
- Range
- Multi9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 2L
- Length in 18 mm modules
- 56
- Standards
- UL 489; UL 508; CSA C22.2 No 5; CSA C22.2 No 14-13; EN/IEC 61439-1
- Product certifications
- CULus
- Number of ways
- 28 ways 2 L
- Distribution type
- L1 L2
- Poles configuration for 1 way
- 1 x 2P
- Connection pitch
- 18 mm
- Connector type
- Tooth
- Distance between way
- 36 mm
- Insulation
- Insulated
- Device presentation
- Cuttable
- [Ie] rated operational current
- 80 A at 40 °C
- [Ue] rated operational voltage
- 480 V AC 50/60 Hz Ph/Ph; 277 V AC 50/60 Hz Ph/N
- [Ui] rated insulation voltage
- 1000 V AC 50/60 Hz conforming to UL 508
- Mounting location
- Top on tunnel type terminals
- 9 mm pitches
- 112
- Width
- 1008 mm
- Colour
- Light grey (RAL 7035)
- Range compatibility
- Multi9 C60BP
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3
- IP degree of protection
- IP20 with end-pieces and tooth covers
- Warranty (in months)
- 18
- EAN
- 3606481192882
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481192882
- MPN M9XCP256
