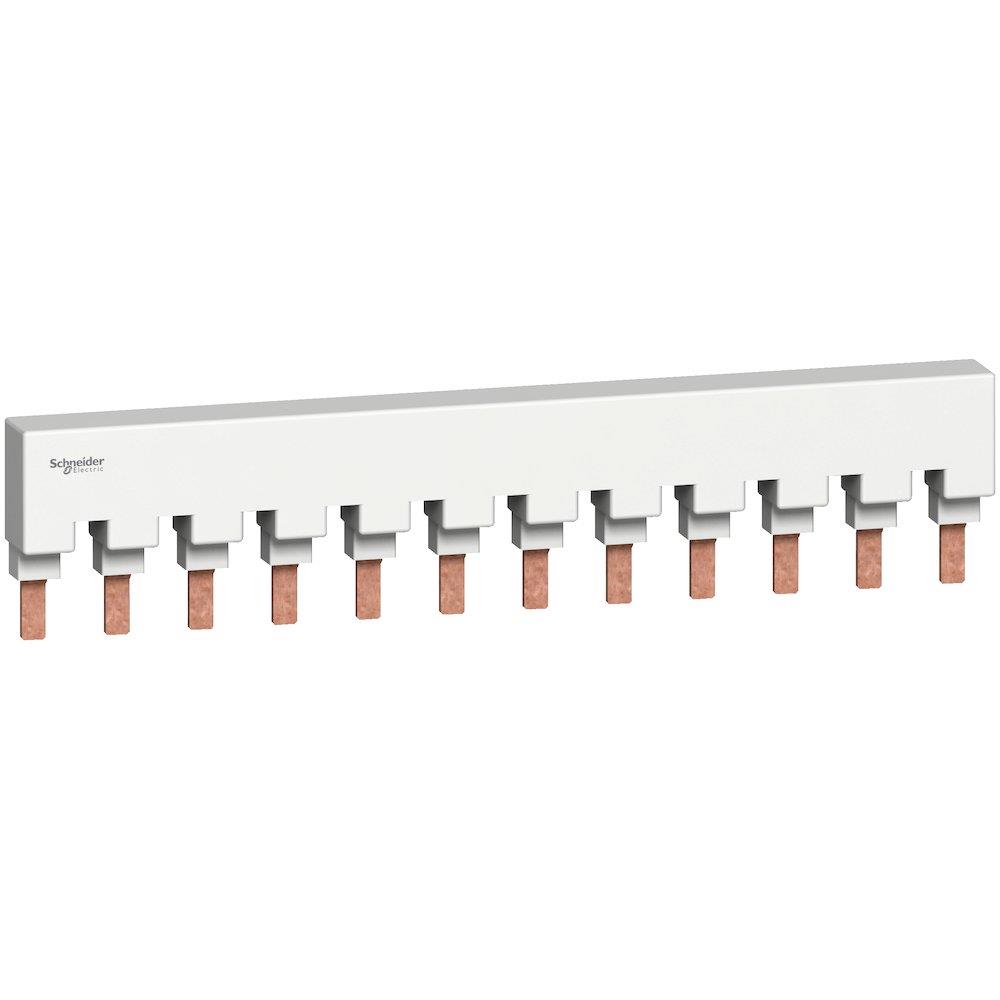

Schneider MULTI9 C60 OEM Loop Rail - 3606481192820
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Multi9 C60 OEM Loop Rail. Various machine installations (Electrical Engineering / Branching material). Supplied under manufacturer part number M9XUP212, EAN 3606481192820, HS code 8536.90, country of origin MK.
Technical Specifications
- Product type
- Various machine installations
- Product group
- Branching material
- Carbon footprint (EPD)
- 1.2167 kg CO2e per pcs
- Country of origin
- MK
- Customs tariff code (EU CN)
- 85369010
- HS code
- 8536.90
- Manufacturer part number
- M9XUP212
- Range
- Multi9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 2L
- Length in 18 mm modules
- 12
- Standards
- UL 489; UL 508; CSA C22.2 No 5; CSA C22.2 No 14-13; EN/IEC 61439-1
- Product certifications
- CULus
- Number of ways
- 6 ways 2 L
- Distribution type
- L1 L2
- Poles configuration for 1 way
- 1 x 2P
- Connection pitch
- 18 mm
- Connector type
- Tooth
- Distance between way
- 36 mm
- Insulation
- Insulated
- Device presentation
- Uncuttable
- [Ie] rated operational current
- 115 A at 40 °C
- [Ue] rated operational voltage
- 480 V AC 50/60 Hz Ph/Ph; 277 V AC 50/60 Hz Ph/N
- [Ui] rated insulation voltage
- 1000 V AC 50/60 Hz conforming to UL 508
- Mounting location
- Top on tunnel type terminals
- 9 mm pitches
- 24
- Width
- 216 mm
- Colour
- Light grey (RAL 7035)
- Range compatibility
- Multi9 C60BP
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3
- IP degree of protection
- IP20 with end-pieces and tooth covers
- Warranty (in months)
- 18
- EAN
- 3606481192820
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481192820
- MPN M9XUP212
