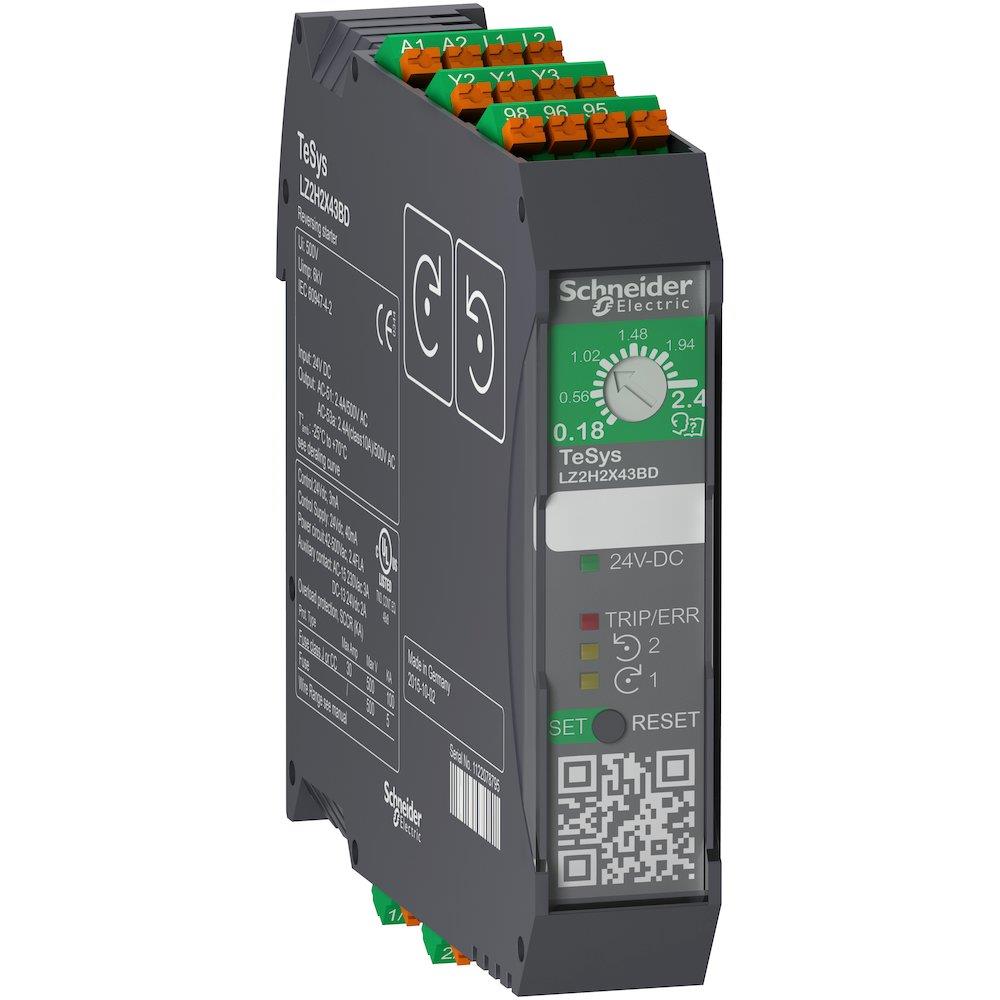

Schneider LZ2H Motor Starter reversing - 400V, 3kW

Schneider LZ2H Motor Starter reversing. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 400 V, power 3 kW. Supplied under manufacturer part number LZ2H6X53BD, EAN 3606485421223, HS code 8537.10, country of origin Germany.

Product type

Motor starters

Product group

Components for panels and boxes

Voltage

400 V

Power

3 kW

Carbon footprint (EPD)

2.5904 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

85371098

HS code

8537.10

Manufacturer part number

LZ2H6X53BD

Range

TeSys

Product name

TeSys Hybrid

Device short name

LZ2H

Product or component type

Reversing ultra-compact starter

Motor starter type

Direct on line

Poles description

3P

[Ue] rated operational voltage

500 V AC

[Ie] rated operational current

6.5 A at 500 V AC-53A; 9 A at 500 V AC-51; 5 A at 500 V AC-53A mounting side by side; 7 A at 500 V AC-51 mounting side by side

Thermal protection adjustment range

1.5…9 A

Motor power kW

1.5 kW at 220 V AC 0.65; 1.5 kW at 230 V AC 0.65; 2.2 kW at 380 V AC 0.65; 3 kW at 400 V AC 0.65; 3 kW at 415 V AC 0.65; 3 kW at 440 V AC 0.65; 3 kW at 500 V AC 0.65

Motor power hp

1 hp at 200 V AC; 1.5 hp at 230 V AC; 3 hp at 460 V AC

[Uc] control circuit voltage

24 V DC

Thermal overload class

Class 10A conforming to IEC 60947-4-2

Auxiliary contact composition

1 C/O fault signalling

Control circuit voltage limits

19.2...30 V DC

Current consumption

<= 40 mA at 24 V DC

Reset

Manual; Automatic reset; Electrical reset

Electrical durability

30 Mcycles

Maximum operating rate

120 cyc/mn AC-51 50 % ON; 6 cyc/mn AC-53A 50 % ON

mounting mode

By clips

Mounting support

DIN rail

Connections - terminals

Spring clamp terminals 1 cable(s) 0.2…2.5 mm² - rigid; Spring clamp terminals 1 cable(s) 0.25…2.5 mm² - flexible - with cable end; Spring clamp terminals 1 cable(s) 0.2…2.5 mm² - flexible - without cable end

Certifications

CULus; CE

Standards

UL 60947-4-1; IEC 60947-4-2

[Ui] rated insulation voltage

500 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

Pollution degree

2

Width

22.5 mm

Height

99 mm

Depth

114.5 mm

Product weight

212 g

IP degree of protection

IP20

Protective treatment

TC

Ambient air temperature for operation

-25…30 °C without derating; 30…70 °C with derating

Ambient air temperature for storage

-40…80 °C

Warranty (in months)

18

EAN

3606485421223

HS Code

8537.10
