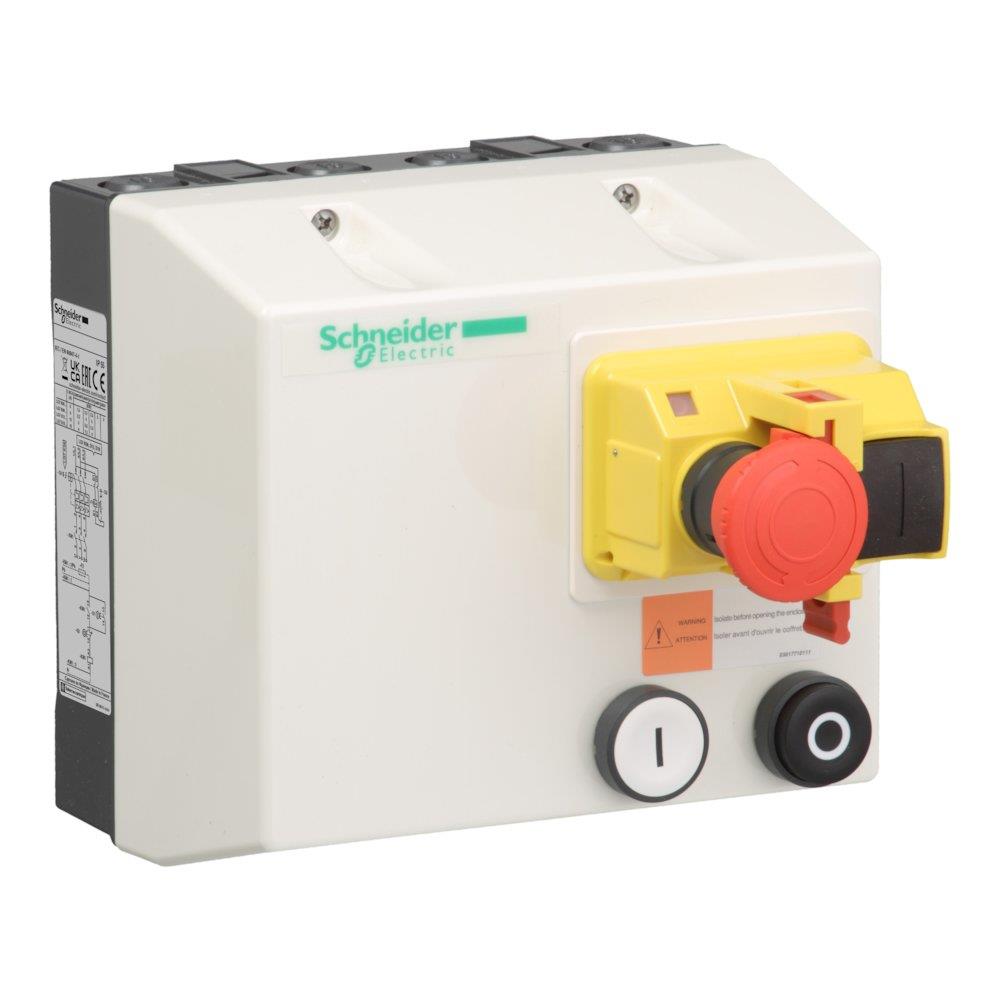

Schneider LG7K Motor Starter - 230V, 0.75kW, 55

Schneider LG7K Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 230 V, power 0.75 kW, protection class (ip) 55. Supplied under manufacturer part number LG7K06M707, EAN 3389110657784, HS code 8538.10, country of origin France.

Product type

Motor starters

Product group

Components for panels and boxes

Voltage

230 V

Power

0.75 kW

Protection class (IP)

55

REACH SVHC substance above 0.1%

Lead, Octamethylcyclotetrasiloxane, Octrizole

Carbon footprint (EPD)

16.2404 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85381000

HS code

8538.10

Manufacturer part number

LG7K06M707

Range

TeSys

Product name

TeSys LG

Device short name

LG7K

Product or component type

Enclosed DOL starter

Device application

Safety

Utilisation category

AC-3

Device composition

Contactor; Circuit-breaker

Motor power kW

0.37 kW at 220/230 V AC 50/60 Hz; 0.75 kW at 400/415 V AC 50/60 Hz; 1.1 kW at 440 V AC 50/60 Hz

Thermal protection adjustment range

1.6…2.5 A

[Uc] control circuit voltage

220/230 V AC 50/60 Hz

Control type

Push-button start white I; Push-button stop black O; Mushroom head push-button emergency stop red

Standards

IEC 60947-4-1; IEC 60204-1

Product certifications

CE; UKCA

Cable entry number

4 2 Pg 13 + 2 Pg 16 top; 4 2 Pg 13 + 2 Pg 16 bottom

Height

165 mm

Depth

177 mm

Product weight

1.3 kg

Width

175 mm

Material

Polycarbonate

IK degree of protection

IK07 conforming to IEC 60529

IP degree of protection

IP55 conforming to IEC 60529

Environmental characteristic

Standard environment

Number of Units in Package 1

1

Number of Units in Package 2

12

Warranty (in months)

18

EAN

3389110657784

HS Code

8538.10

• EAN 3389110657784
• MPN LG7K06M707
