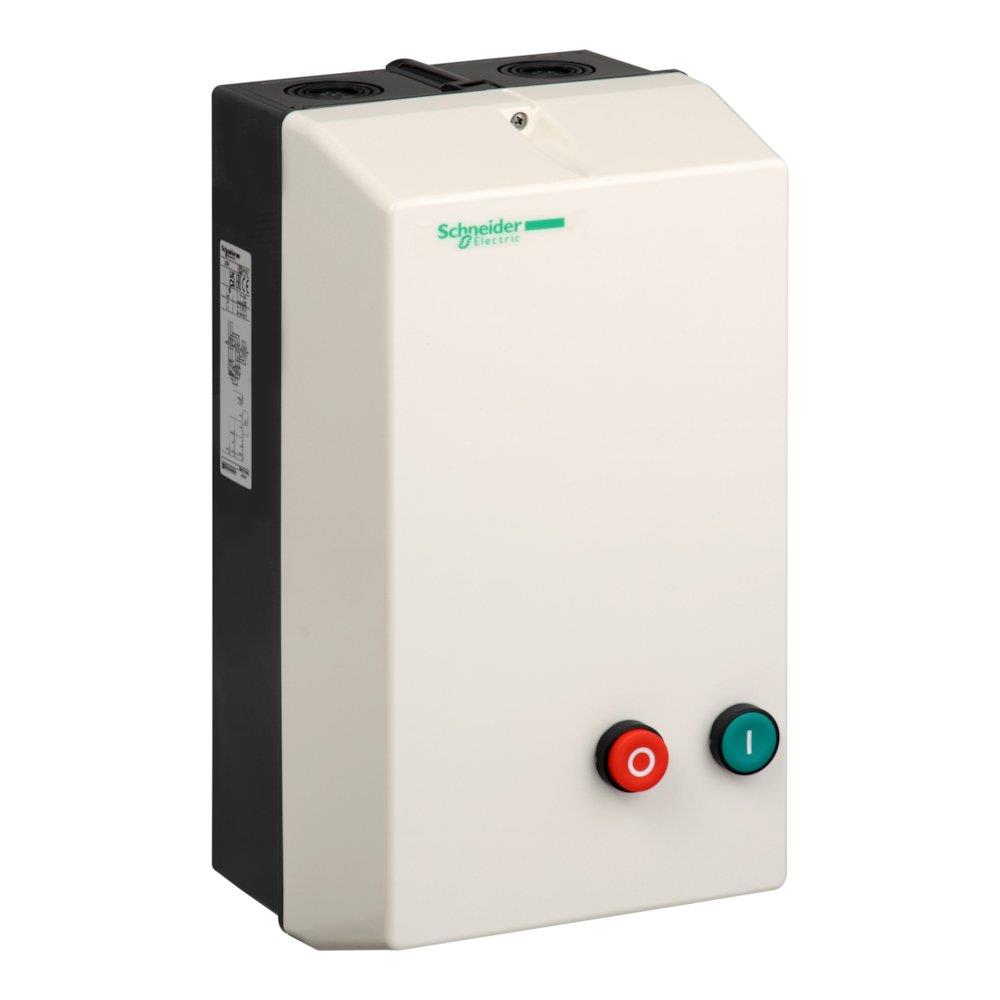

Schneider LE3D Y/D Starter - 400V, 7.5kW, 65

Schneider LE3D Y/D Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 400 V, power 7.5 kW, protection class (ip) 65. Supplied under manufacturer part number LE3D09V7, EAN 3389110625769, HS code 8537.10, country of origin France.

Product type

Motor starters

Product group

Components for panels and boxes

Voltage

400 V

Power

7.5 kW

Protection class (IP)

65

REACH SVHC substance above 0.1%

Octamethylcyclotetrasiloxane

Carbon footprint (EPD)

22.7341 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85371098

HS code

8537.10

Manufacturer part number

LE3D09V7

GTIN (EAN)

3389110625769

Range

TeSys

Product name

TeSys LE

Device short name

LE3D

Product or component type

Enclosed star-delta starter

Device application

Standard

Material

Polycarbonate

Utilisation category

AC-3

Device composition

Thermal overload relay ordered separately; Star-delta contactors; Mechanical interlock

[Ie] rated operational current

9 A AC-3

Motor power kW

4 kW at 220 V; 7.5 kW at 415 V; 7.5 kW at 440 V; 7.5 kW at 380/400 V

[Uc] control circuit voltage

400 V AC 50/60 Hz

Control type

Push-button start green I; Push-button stop/reset red O

Connections - terminals

Power circuit: screw clamp terminals; Control circuit: screw clamp terminals

Cable entry number

2 ISO20 top; 2 ISO25 top; 2 ISO32 top; 2 ISO40 top; 2 ISO20 bottom; 2 ISO25 bottom; 2 ISO32 bottom; 2 ISO40 bottom

Width

186 mm

Height

348 mm

Depth

175.5 mm

Product weight

3.65 kg

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 60529

Standards

IEC 60947-4-1

Ambient air temperature for operation

-5…40 °C

Environmental characteristic

Standard environment

Product certifications

UKCA

Warranty (in months)

18

HS Code

8537.10

• EAN 3389110625769
• MPN LE3D09V7
