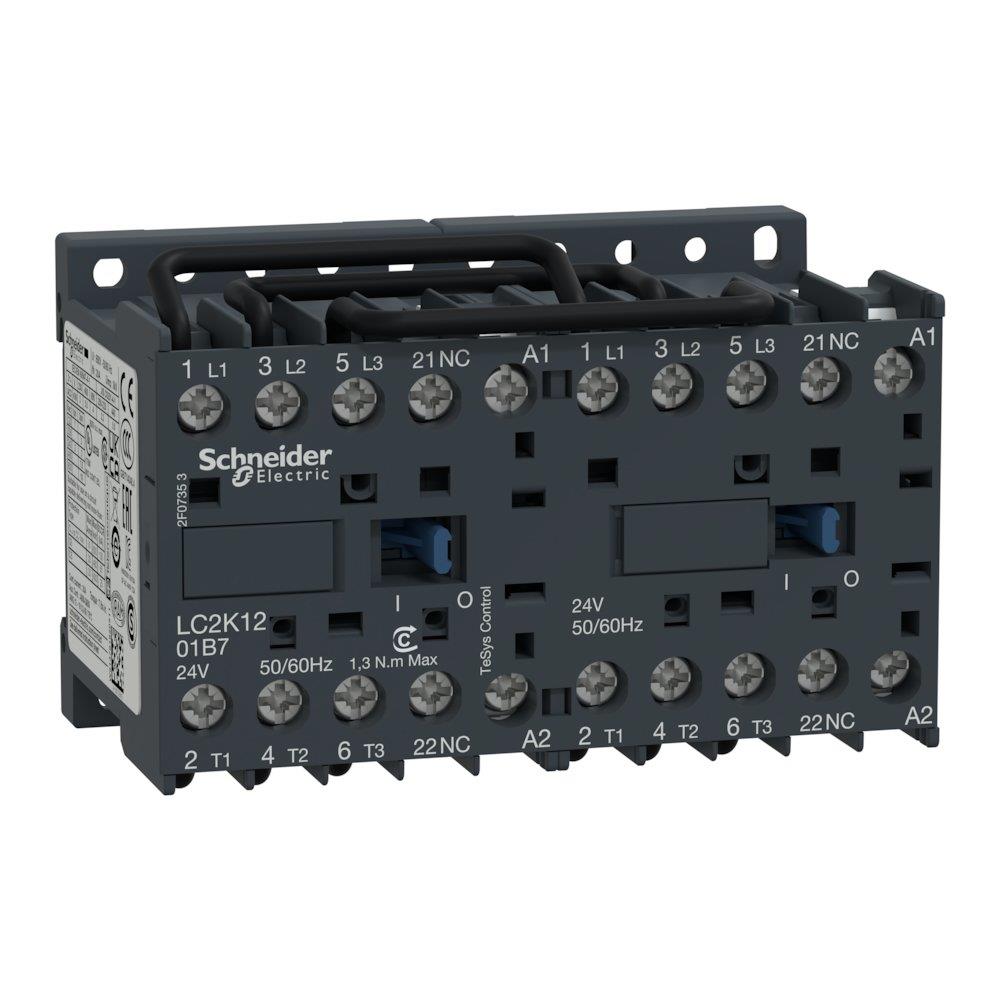

Schneider LC2K Contactor reversing - TeSys K, 12A, 3P, 3NO - 1NC, 24V

Schneider LC2K Contactor reversing. Contactors and thermal relays motor control (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys K, current 12 A, number of poles 3P, contact type 3NO -1NC. Supplied under manufacturer part number LC2K1201B7, EAN 3389110789850, HS code 8538.10, country of origin France.

Product type

Contactors and thermal relays motor control Product group: Components for panels and boxes Series: TeSys K Current: 12 A Number of poles: 3P Contact type: 3NO -1NC Voltage: 24 V Carbon footprint (EPD): 1.9328 kg CO2e per pcs Country of origin: France Customs tariff code (EU CN): 85381000 HS code: 8538.10 Manufacturer part number: LC2K1201B7 Range: TeSys Product name: TeSys K Product or component type: Reversing contactor Device short name: LC2K Device application: Control Contactor application: Resistive load; Motor control Utilisation category: AC-3; AC-3e; AC-4; AC-1 Device presentation: Preassembled with reversing power busbar Poles description: 3P power pole contact composition: 3 NO [Ue] rated operational voltage: Power circuit: 690 V AC 50/60 Hz; Signalling circuit: <= 690 V AC 50/60 Hz [Ie] rated operational current: 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit; 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit Motor power kW: 3 kW at 220...230 V AC 50/60 Hz; 5.5 kW at 380...415 V AC 50/60 Hz; 5.5 kW at 440 V AC 50/60 Hz; 4 kW at 690 V AC 50/60 Hz Control circuit type: AC at 50/60 Hz [Uc] control circuit voltage: 24 V AC 50/60 Hz Auxiliary contact composition: 1 NC [Uimp] rated impulse withstand voltage: 8 kV Overvoltage category: III [Ith] conventional free air thermal current: 20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit Irms rated making capacity: 144 A AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947 Rated breaking capacity: 110 A at 440 V conforming to IEC 60947; 80 A at 500 V conforming to IEC 60947; 70 A at 660...690 V conforming to IEC 60947 [Icw] rated short-time withstand current: 115 A 50 °C - 1 s for power circuit; 105 A 50 °C - 5 s for power circuit; 100 A 50 °C - 10 s for power circuit; 75 A 50 °C - 30 s for power circuit; 55 A 50 °C - 1 min for power circuit; 50 A 50 °C - 3 min for power circuit; 25 A 50 °C - >= 15 min for power circuit; 80 A - 1 s for signalling circuit; 90 A - 500 ms for signalling circuit; 110 A - 100 ms for signalling circuit Associated fuse rating: 25 A gG at <= 440 V for power circuit; 25 A aM for power circuit; 10 A gG for signalling circuit conforming to IEC 60947; 10 A gG for signalling circuit conforming to VDE 0660 Average impedance: 3 mOhm - Ith 20 A 50 Hz for power circuit [Ui] rated insulation voltage: Power circuit: 600 V conforming to UL 508; Power circuit: 690 V conforming to IEC 60947-4-1; Signalling circuit: 690 V conforming to IEC 60947-4-1; Signalling circuit: 690 V conforming to IEC 60947-5-1; Signalling circuit: 600 V conforming to UL 508; Power circuit: 600 V conforming to CSA C22.2 No 14; Signalling circuit: 600 V conforming to CSA C22.2 No 14 Electrical durability: 1.3 Mcycles 12 A AC-3 at Ue <= 440 V; 1.3 Mcycles 12 A AC-3e at Ue <= 440 V; 0.3 Mcycles 20 A AC-1 at Ue <= 690 V; 0.02 Mcycles 72 A AC-4 at Ue <= 440 V Interlocking type: Mechanical Mounting support: Plate; Rail Standards: EN/IEC 60947-4-1; GB/T 14048.4; UL 60947-4-1; CSA C22.2 No 60947-4-1; JIS C8201-4-1 Product certifications: CB Scheme; CCC; UL; CSA; EAC; CE; UKCA Connections - terminals: Screw clamp terminals 1 cable(s) 1.5…4 mm²solid; Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 1.5…4 mm²solid; Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end Tightening torque: 0.8…1.3 N.m - on screw clamp terminals Philips No 2; 0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm Operating time: 10...20 ms coil energisation and NO closing; 10...20 ms coil de-energisation and NO opening Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 5 Mcycles Maximum operating rate: 3600 cyc/h Control circuit voltage limits: Operational: 0.8...1.15 Uc (at <50 °C); Drop-out: 0.2...0.75 Uc (at <50 °C) Inrush power in VA: 30 VA (at 20 °C) Hold-in power consumption in VA: 4.5 VA (at 20 °C) Heat dissipation: 1.3 W Auxiliary contacts type: type instantaneous 1 NC Signalling circuit frequency: <= 400 Hz minimum switching current: 5 mA for signalling circuit minimum switching voltage: 17 V for signalling circuit Non overlap distance: 0.5 mm Insulation resistance: > 10 MOhm for signalling circuit IP degree of protection: IP20 conforming to VDE 0106 Protective treatment: TC conforming to IEC 60068; TC conforming to DIN 50016 Ambient air temperature for operation: -25…50 °C Ambient air temperature for storage: -50…80 °C Operating altitude: 2000 m without derating Flame retardance: V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102 Mechanical robustness: Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27; Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27; Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27; Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27; Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27; Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27; Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6; Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Height: 58 mm Width: 90 mm Depth: 57 mm Product weight: 0.39 kg Number of Units in Package 1: 1 Number of Units in Package 2: 25 Warranty (in months): 18 EAN: 3389110789850

HS Code

8538.10

• EAN 3389110789850
• MPN LC2K1201B7
