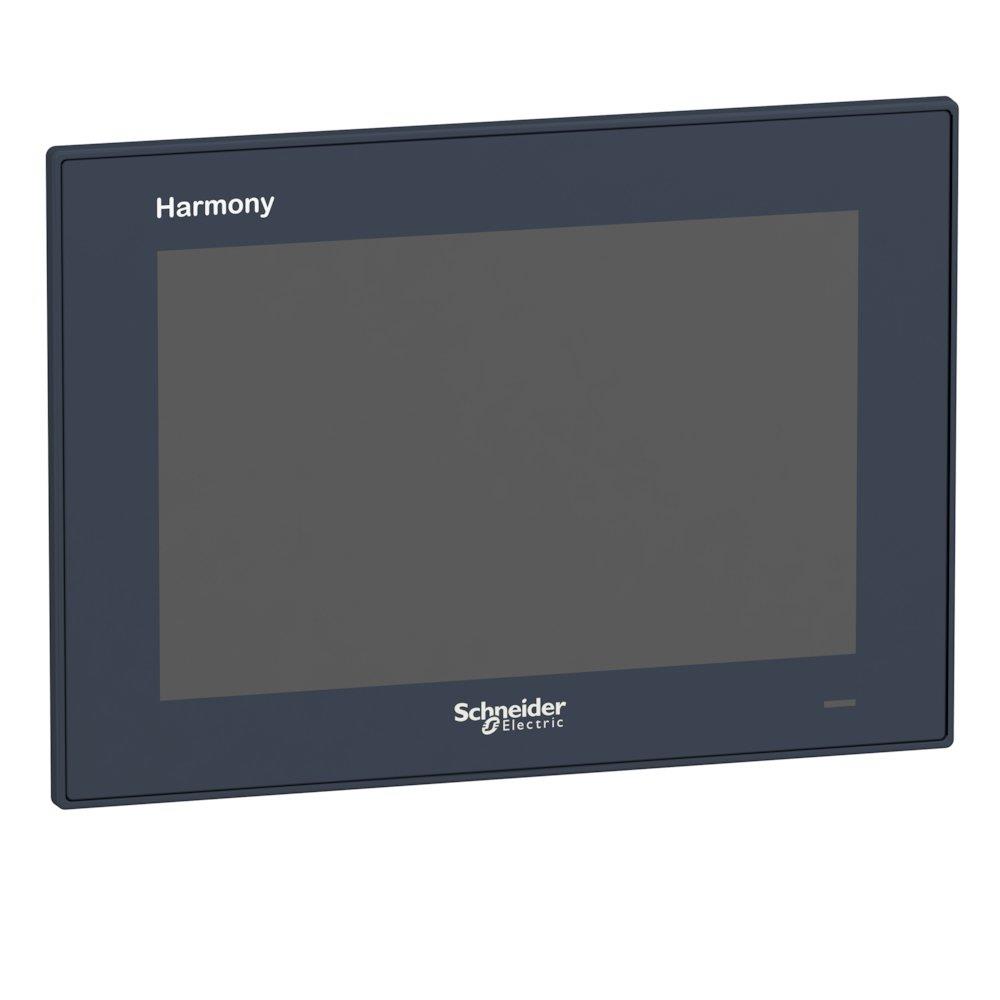

Schneider iPC S-Panel - Windows 10 3606480853364
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider iPC S-Panel. Industrial PC (Electrical Engineering / Industry and automation). Principal data: control system Windows 10. Supplied under manufacturer part number HMIPSOS552D1801, EAN 3606480853364, HS code 8471.41, country of origin Taiwan.
Technical Specifications
- Product type
- Industrial PC
- Product group
- Industry and automation
- Control system
- Windows 10
- REACH SVHC substance above 0.1%
- Lead, DME
- Carbon footprint (EPD)
- 39.2545 kg CO2e per pcs
- Country of origin
- Taiwan
- Customs tariff code (EU CN)
- 84714100
- HS code
- 8471.41
- Manufacturer part number
- HMIPSOS552D1801
- Range of product
- Harmony iPC
- Product or component type
- Multi-touch screen
- Processor name
- Intel Atom E3827 dual core at 1.75 GHz
- Chipset type
- Intel Atom SoC
- Free slots
- 1 Internal SATA HDD/SSD; 1 CFast
- Display size
- 10.1 inch
- Display colour
- 267000 colours
- Luminance
- 300 cd/m²
- Pixel resolution
- 4096 x 4096
- Video controller type
- Intel HD Graphics
- Operating system
- Windows 10 IoT Enterprise 64 bitmulti-language
- Software package
- EcoStruxture secure connect advisor annual subscription cyber security license not included; EcoStruxure Operator Terminal Expert run time HMI license not included; EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only; EcoStruxure augmented operator advisor server augmented operator license not included
- Number of points
- 5
- Terminal type
- Touchscreen display
- Memory type
- 4 GB RAM DDR3 internal
- Data storage equipment
- 128 GB extension back side SSD 1500000 h mtbf
- Aspect ratio
- 16:9
- Display type
- Colour TFT LCD; LED
- Display resolution
- 1280 x 800 pixels WSVGA
- Backlight lifespan
- 50000 hours
- View angle horizontal x vertical
- 160 x 160°
- Touch panel
- Projected capacitive technology (PCT)
- Type of cooling
- Fanless; Passive
- Watchdog timer
- 1…255 ms
- Number of slots
- 1 mini PCI Express full-size
- [Us] rated supply voltage
- 24 V DC +/- 20 %; 100...240 V AC with additional adaptor HMIYPSOMAC1
- [In] rated current
- 1.9 A
- Mechanical robustness
- Hardness anti-scratch 7H
- Local signalling
- Buzzer; LED (green) for on; LED (orange) for stand-by
- Function available
- Operate with water on screen
- Width
- 283.1 mm
- Height
- 202.3 mm
- Depth
- 85.5 mm
- Cut-out dimensions
- 274.6 (+/- 0.7) x 193.8 (+/- 0.4)
- Product weight
- 2.5 kg
- Main type
- Optimised
- IP degree of protection
- IP66 front panel:
- Product certifications
- AS/NZS; C-Tick; CCC; CE; RCM; EAC
- Standards
- UL 60950; CSA C22.2 No 60950; FCC part 15 class A; CISPR 11; IEC 61000-6-4; IEC 61000-6-2; IEC 60950
- Directives
- 2004/108/EC - electromagnetic compatibility; 2006/95/EC - low voltage directive
- Pollution degree
- 2
- Ambient air temperature for operation
- 0…55 °C SSD; 0…55 °C Cfast card; 0…45 °C HDD; 0…45 °C Mini PCIe
- Ambient air temperature for storage
- -20…60 °C
- Relative humidity
- 10…95 % non-condensing
- Operating altitude
- 2000
- Vibration resistance
- 1 gn (f = 5…500 Hz)HDD; 2 gn (f = 5…500 Hz)SSD; 2 gn (f = 5…500 Hz)Cfast card
- Warranty (in months)
- 18
- EAN
- 3606480853364
