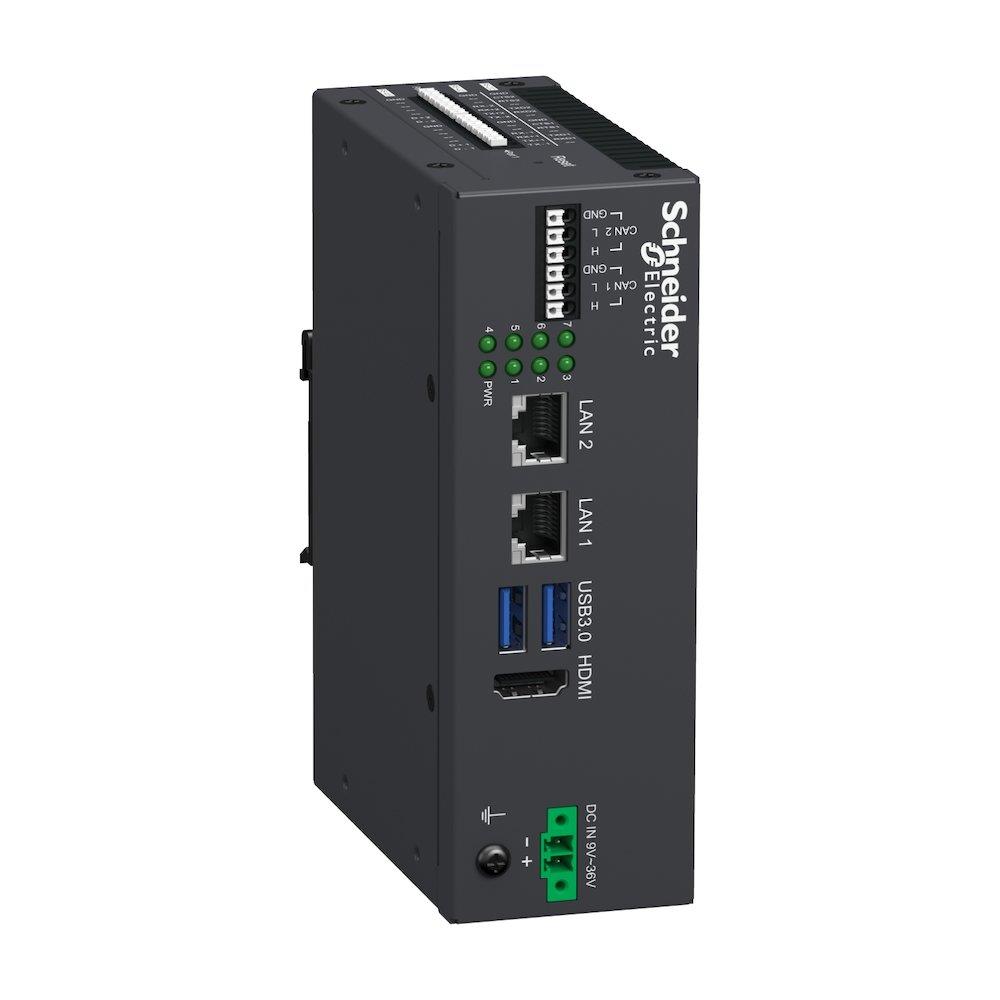

Schneider Harmony iPC Edge Box - HMIBX1A0NDA, Linux Debian 11
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Harmony iPC Edge Box. Industrial PC (Electrical Engineering / Industry and automation). Principal data: type HMIBX1A0NDA, control system Linux Debian 11. Supplied under manufacturer part number HMIBX1A0NDA, EAN 3606486926840, HS code 8471.50, country of origin Taiwan.
Technical Specifications
- Product type
- Industrial PC
- Product group
- Industry and automation
- Type
- HMIBX1A0NDA
- Control system
- Linux Debian 11
- Carbon footprint (EPD)
- 10.4848 kg CO2e per pcs
- Country of origin
- Taiwan
- Customs tariff code (EU CN)
- 84715000
- HS code
- 8471.50
- Manufacturer part number
- HMIBX1A0NDA
- Range of product
- Harmony iPC
- Device short name
- essential edge controller
- Product or component type
- Essential edge controller
- Software package
- EAE V 24.1 default
- Data storage equipment
- 32 GB eMMC (soldered)
- Range compatibility
- EcoStruxure Automation Expert
- Display resolution
- 1920 x 1080 pixels at 60 Hz
- Integrated connection type
- HDMI with 1 on front; Ethernet with 2 1 RJ45, SMSC LAN7500 on front; USB 3.0 type A with 2 on front; TPM connector Ver 2.0, TPM module by default on motherboard
- Audio/video interface
- HDMI 1.4
- Number of slots
- 2 slot(s) for mini PCI Express
- [Us] rated supply voltage
- 24 V DC
- Type of cooling
- Fanless
- Power consumption in W
- 9.36 W
- Inrush current
- 6 A
- Fixing mode
- 7.5 mm symmetrical DIN rail: on rail
- Width
- 98.2 mm
- Depth
- 48 mm
- Height
- 140.76 mm
- Product weight
- 950 g
- Pollution degree
- <= 2 conforming to UL 61010
- Product certifications
- CE; UKCA; RCM; CULus
- IP degree of protection
- IP20 DIN rail:
- Ambient air temperature for operation
- -20…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Vibration resistance
- 9.8 m/s²
- Shock resistance
- 147 m/s²
- Electromagnetic compatibility
- EN/IEC 61131-2
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Warranty (in months)
- 18
- EAN
- 3606486926840
Standards & Compliance
- HS Code
- 8471.50
Cross References
- EAN 3606486926840
- MPN HMIBX1A0NDA
