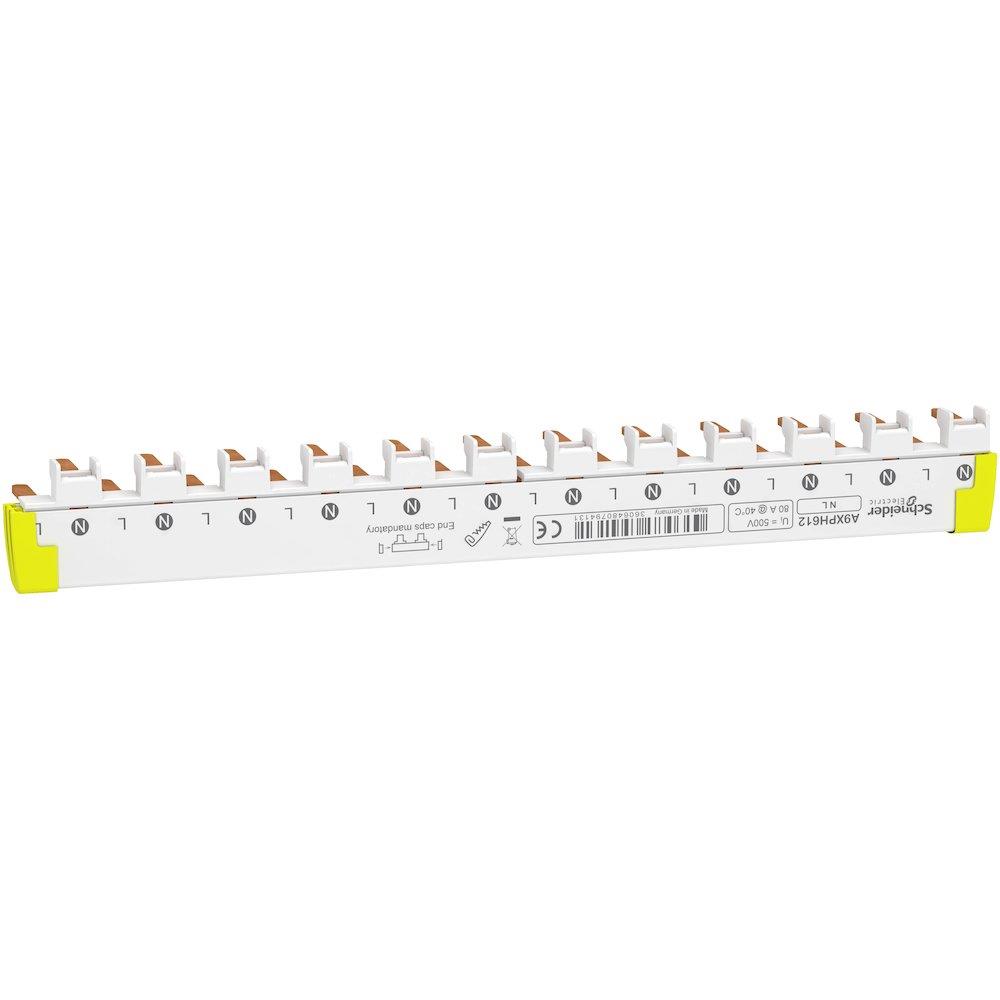

Schneider ACTI9 Loop Rail - 3606480794131
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Acti9 Loop Rail. Various machine installations (Electrical Engineering / Branching material). Supplied under manufacturer part number A9XPH612, EAN 3606480794131, HS code 8536.90, country of origin Germany.
Technical Specifications
- Product type
- Various machine installations
- Product group
- Branching material
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.9003 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 85369095
- HS code
- 8536.90
- Manufacturer part number
- A9XPH612
- Range
- Acti9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 1L + N
- Length in 18 mm modules
- 12
- Standards
- EN/IEC 61439-1
- Number of ways
- 12 ways N + 1 L
- Distribution type
- N L
- Poles configuration for 1 way
- 1 x 1P + N
- Connection pitch
- 9 mm
- Connector type
- Tooth
- Distance between way
- 18 mm
- Marking
- N L
- Insulation
- Insulated
- Device presentation
- Cuttable
- [Ie] rated operational current
- 80 A at 40 °C
- [Ue] rated operational voltage
- 230 V AC Ph/N
- [Ui] rated insulation voltage
- 500 V AC conforming to IEC 61439-1
- [Uimp] rated impulse withstand voltage
- 6 kV
- Mounting location
- Bottom on tunnel type terminals
- 9 mm pitches
- 24
- Height
- 25 mm
- Width
- 220 mm
- Depth
- 20 mm
- Colour
- White (RAL 9003)
- Range compatibility
- Acti9 Acti9 iDPN; Acti9 Acti9 iDPN Vigi
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3 conforming to IEC 60947-7-1
- IP degree of protection
- IP20 with end-pieces and tooth covers
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 80
- Warranty (in months)
- 18
- EAN
- 3606480794131
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480794131
- MPN A9XPH612
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider MULTI9 C60N Circuit breaker - MULTI9 C60, 20A, 3P, C
M9F11320
Schneider Electric
Schneider LRD Thermal Relay - TeSys D, 30 - 38A
3389110346862
Schneider Electric

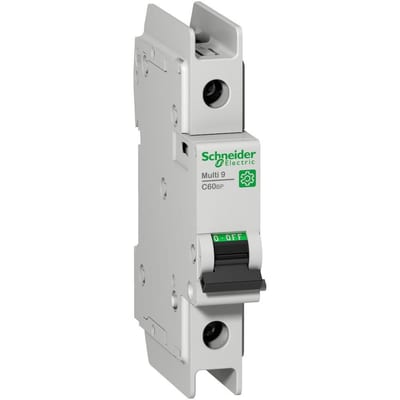

Schneider MULTI9 C60BP Circuit breaker - MULTI9 C60, 50A, 1P, C
M9F42150
Schneider Electric

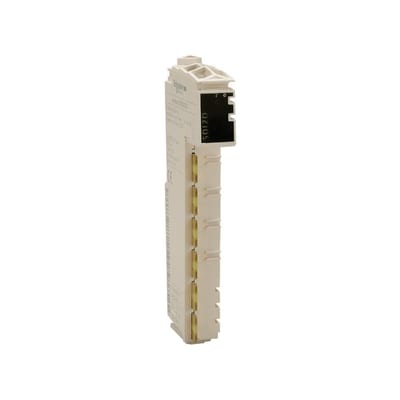

Schneider Modicon TM5 Expansion Module - 24V, 8
TM5SDM12DT
Schneider Electric

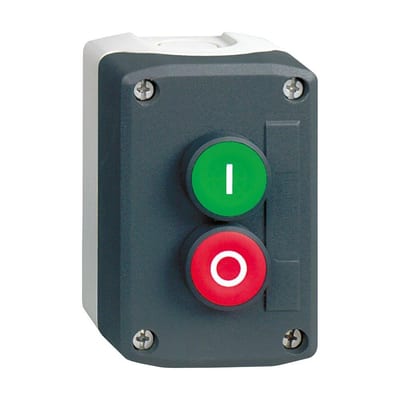

Schneider XALK Push button box - Harmony XALK 3389110114089
XALD214
Schneider Electric

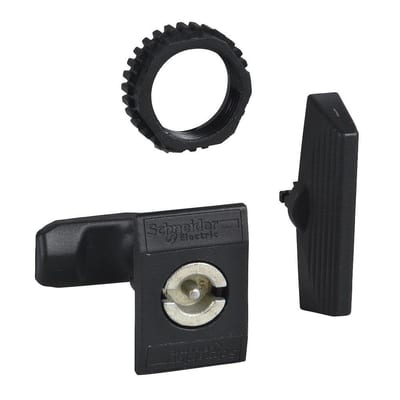

Schneider Spacial CRN Lock
NSYCDB3
Schneider Electric

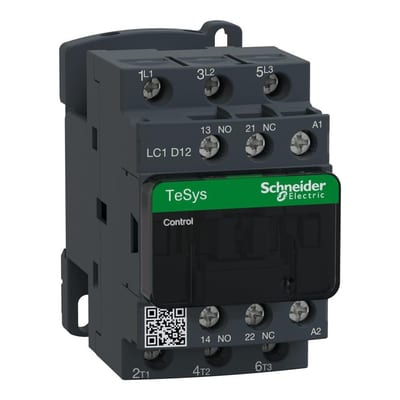

Schneider LC1D Contactor - TeSys D, 12A, 3P, 24 ACV
