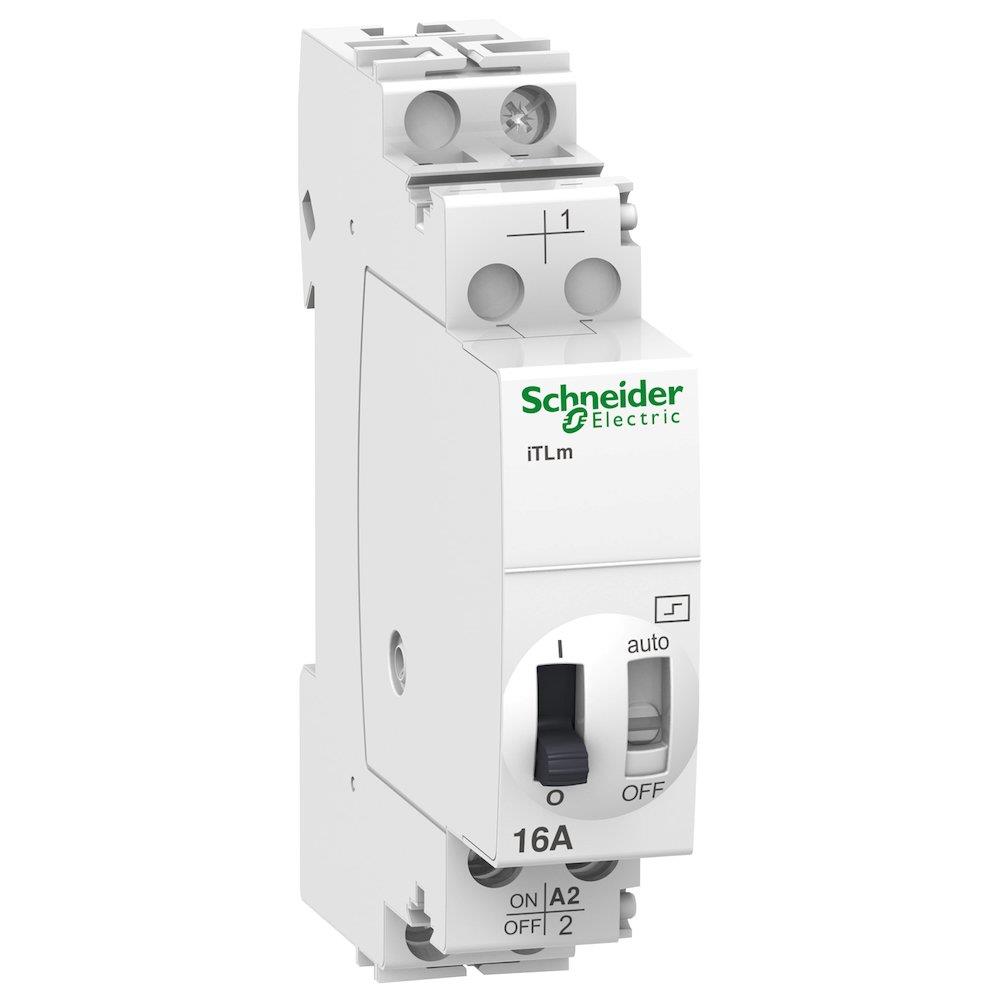

Schneider ACTI9 iTLM Flip relay - ACTI9 iTL, 230V, 16A, 1NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Acti9 iTLM Flip relay. Switches, relays, and selectors (DIN rail) (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iTL, voltage 230 V, current rating 16 A, contact type 1NO. Supplied under manufacturer part number A9C34811, EAN 3606480092107, HS code 8536.49, country of origin Belgium.
Technical Specifications
- Product type
- Switches, relays, and selectors (DIN rail)
- Product group
- Components for panels and boxes
- Series
- Acti9 iTL
- Voltage
- 230 V
- Current rating
- 16 A
- Contact type
- 1NO
- Module size
- 18 mm
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 0.8330 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- Belgium
- Customs tariff code (EU CN)
- 85364900
- HS code
- 8536.49
- Manufacturer part number
- A9C34811
- GTIN (EAN)
- 3606480092107
- range of product
- Acti9
- Product name
- Acti9 iTL
- Product or component type
- Impulse relay
- Device short name
- iTLm
- Device application
- Latched control
- Poles
- 1P
- Pole contact composition
- 1 NO
- [In] rated current
- 16 A
- Network type
- AC
- [Uc] control circuit voltage
- 230...240 V AC 50/60 Hz
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 250 V AC 50/60 Hz
- Control type
- Coil disconnection; Remote and manual control
- Control signal type
- Maintained
- Switching frequency
- 5 switching operations/minute; 100 switching operations/day
- Impulse duration
- 50 ms...1 s
- Remote control type
- 2 entries for switch
- Local signalling
- ON/OFF indication
- mounting mode
- Fixed
- Mounting support
- DIN rail
- 9 mm pitches
- 2
- Height
- 84 mm
- Width
- 18 mm
- Depth
- 60 mm
- Electrical durability
- AC-21: 200000 cycles; AC-22: 100000 cycles
- Connections - terminals
- Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid; Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule
- Wire stripping length
- 11 mm
- Tightening torque
- 1 N.m
- Range compatibility
- Acti9 iATLs; Acti9 iETL iTL 16
- Standards
- EN 669-1; EN 669-2-2
- Product certifications
- CCC; GOST
- Quality labels
- KEMA; VDE; CEBEC; NF; IMQ
- Noise level
- 60 dB
- IP degree of protection
- IP20 conforming to IEC 60529 (on opening); IP40 conforming to IEC 60529 (in enclosure)
- Pollution degree
- 3
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -20…50 °C
- Ambient air temperature for storage
- -40…70 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3606480092107
- MPN A9C34811
