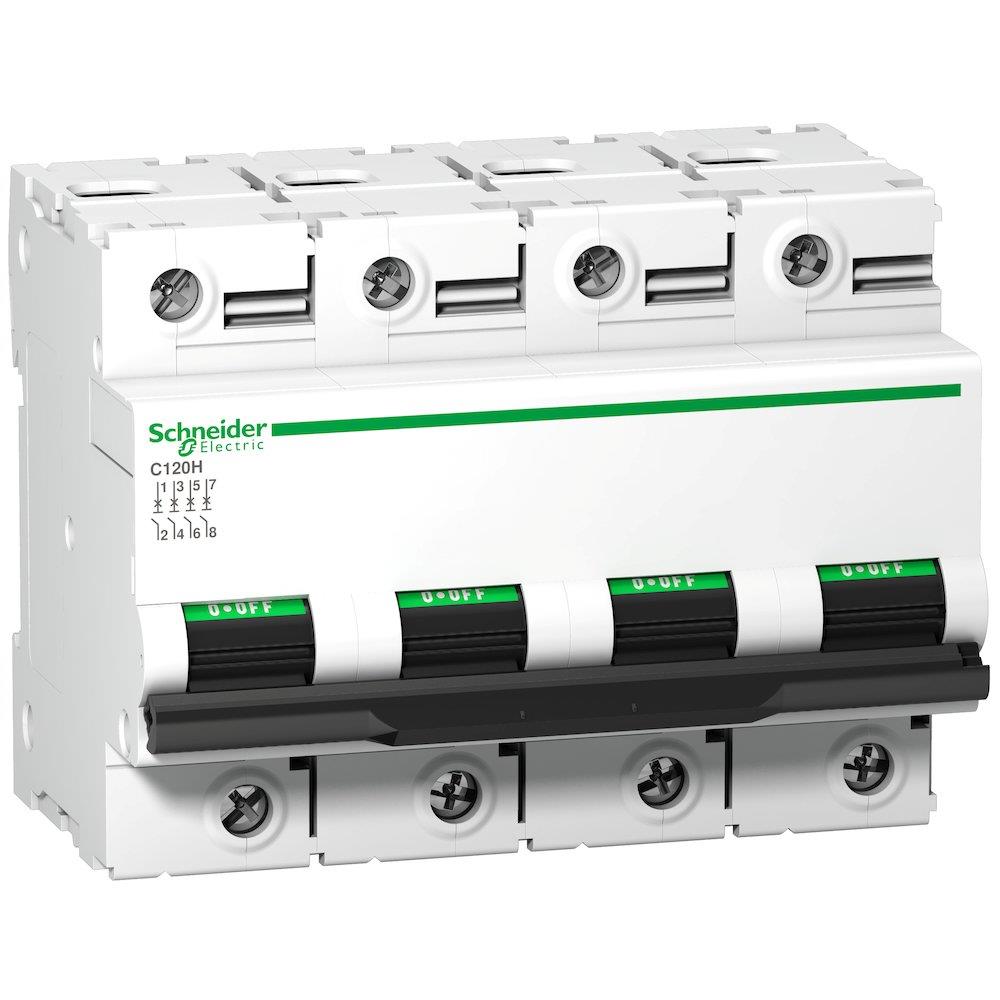

Schneider ACTI9 C120H Circuit breaker - ACTI9 C120, 100A, 4P, B

Schneider Acti9 C120H Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 C120, current rating 100 A, number of poles 4P, tripping characteristic B. Supplied under manufacturer part number A9N18436, EAN 3606480380075, HS code 8536.20, country of origin France.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Acti9 C120

Current rating

100 A

Number of poles

4P

Tripping characteristic

B

Width

108 mm

REACH SVHC substance above 0.1%

Boric acid, Triphenyl phosphate

Carbon footprint (EPD)

4.5100 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

France

Customs tariff code (EU CN)

85362090

HS code

8536.20

Manufacturer part number

A9N18436

GTIN (EAN)

3606480380075

Range

Acti9

Product name

Acti9 C120

Product or component type

Miniature circuit-breaker

Device short name

C120H

Device application

Distribution

Poles description

4P

Number of protected poles

4

[In] rated current

100 A at 30 °C

Network type

AC

Trip unit technology

Thermal-magnetic

Curve code

B

Breaking capacity

15000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2; 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA Icu at <= 500 V DC conforming to EN/IEC 60947-2

Suitability for isolation

Yes conforming to IEC 60947-2

Standards

EN/IEC 60898-1; EN/IEC 60947-2

Product certifications

EAC

Network frequency

50/60 Hz

[Ue] rated operational voltage

380...415 V AC 50/60 Hz; <= 500 V DC; 220...240 V AC 50/60 Hz; 440 V AC 50/60 Hz; 230...400 V AC 50/60 Hz

Magnetic tripping limit

3...5 x In

[Ics] rated service breaking capacity

7500 A 50 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz; 5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz; 15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz; 7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz; 15 kA 100 % conforming to EN/IEC 60947-2 - <= 500 V DC

Limitation class

3 conforming to EN/IEC 60947-2

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Clip-on

Mounting support

35 mm symmetrical DIN rail

Comb busbar and distribution block compatibility

NO

9 mm pitches

12

Height

81 mm

Depth

73 mm

Product weight

0.82 kg

Colour

White

Mechanical durability

20000 cycles

Electrical durability

5000 cycles conforming to IEC 60947-2

Locking options description

Handle sealable with cable diameter 0.7mm in OFF or ON position

Connections - terminals

Tunnel type terminals1…50 mm² rigid; Tunnel type terminals1.5…35 mm² flexible

Wire stripping length

15 mm

Tightening torque

3.5 N.m

Earth-leakage protection

Separate block

IP degree of protection

IP20 conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-30…60 °C

Ambient air temperature for storage

-40…70 °C

Warranty (in months)

18

HS Code

8536.20
