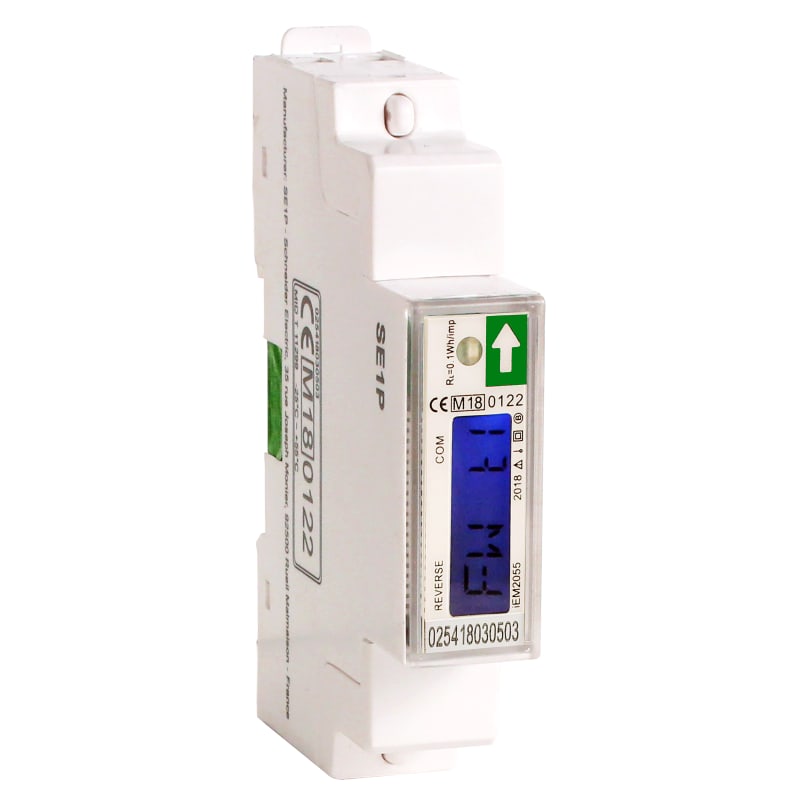

Schneider Electric modular single phase power meter IEM2055 - 230V - 45A with comm Modbus - MID A9MEM2055

Schneider Electric A9MEM2055 Modular 1-phase energy meter iEM2055 - 230V - 45A with comm.-Modbus - MID.

Manufacturer part number (MPN)

A9MEM2055

EAN / GTIN

3606489566548

Sales unit

pcs

Package quantity

60 pcs

Range

Acti9

family

Acti9 iEM2000

Product or component type

Energy meter

Device short name

iEM2055

Poles description

1P + N

Type of measurement

Active energy; Active and reactive power; Power factor; Current; Voltage; Frequency; Apparent power

Metering type

Active energy (signed, two quadrant)

Device application

Sub billing; Multi-tariff

Accuracy class

Class 1 active energy conforming to IEC 62053-21; Class B active energy conforming to EN 50470-1; Class B active energy conforming to EN 50470-3

Analogue input type

Direct input

Maximum current [Imax]

45 A

[Ib] basic current

5 A

Rated current

45 A

Rated voltage

230 V

Network frequency

50 Hz; 60 Hz

Frequency measurement range

45…66 Hz

Technology type

Electronic

Display type

LCD display

Sampling rate

32 samples/cycle

Measurement current

0.25…45 A

Display digits

6

Maximum value measured

9999.99 kWh; 99999.9 kWh

Information displayed

Tariff (2)

Communication port protocol

Modbus RTU at 1200...9600 bit/s even/odd or none

Communication port support

Screw terminals: RS485

Local signalling

Red LED: metering and activity 10000, 2000, 1000, 100, 10, 1, 0.1 or 0.01 imp/kWh

Number of outputs

1 pulse energy monitoring:

Impulse duration

11.2...32 ms

[Us] rated supply voltage

195...253 V AC

Maximum power consumption in VA

10 VA at 240 V AC

Maximum power consumption in W

2 W per phase

[Uimp] rated impulse withstand voltage

6 kV 1.2/50 µs

mounting mode

Clip-on

Mounting support

DIN rail

Connections - terminals

Power circuit: tunnel type terminals (bottom) 8…10 mm² cable(s) ; Power circuit: tunnel type terminals (top) 8…10 mm² cable(s) ; Pulse output: screw clamp terminals (top) 2.5 mm² cable(s) ; Communication: screw clamp terminals (bottom) 2.5 mm² cable(s)

Tightening torque

Power circuit: 0.35 N.m flat screwdriver 2.2 mm; Pulse output: 0.1 N.m flat screwdriver 1.3 mm; Communication: 0.1 N.m flat screwdriver 1.3 mm

Wire stripping length

Power circuit: 7.5 mm; Pulse output: 7 mm; Communication: 7 mm

Standards

IEC 62053-21; IEC 62053-23; EN 50470-3

Product certifications

MID conforming to EN 50470-3; CE conforming to EN 50470-3; CE

IP degree of protection

IP51 front panel: conforming to IEC 60529; IP20 casing:

Ambient air temperature for operation

-40…70 °C

Ambient air temperature for storage

-40…80 °C

Operating altitude

< 2000 m

Relative humidity

0…75 % operation; 0…95 % storage

Colour

White

9 mm pitches

2

Width

17.5 mm

Height

90 mm

Depth

63 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.600 cm

Package 1 Width

2.000 cm

Package 1 Length

10.000 cm

Package 1 Weight

88.900 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

7.800 cm

Package 2 Width

10.800 cm

Package 2 Length

22.000 cm

Package 2 Weight

951.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

60

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

5.800 kg

Country of origin

CN

Warranty (in months)

18

Mounting method

DRA (DIN-rail adaptor)

Model

Direct measurement

Suitable for

Purchase

Type of indication

Digital

Max. current (Imax)

45 A

Width in number of modular spacings

1

Number of positions total (counter)

6

Type of meter

Electronic

Degree of protection (IP)

IP51

Type of interface

Modbus

Energy type

Effective power and reactive power

Tariff type

Two-tariff

Tariff control

External

Escapement mechanism

No

Calibrated

Yes

Approval

Measuring Instruments Directive

Pulse output

Electrical

Pulse type

S0

Pole type

Single phase

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal current (In)

45 A

HS Code

9030.33
