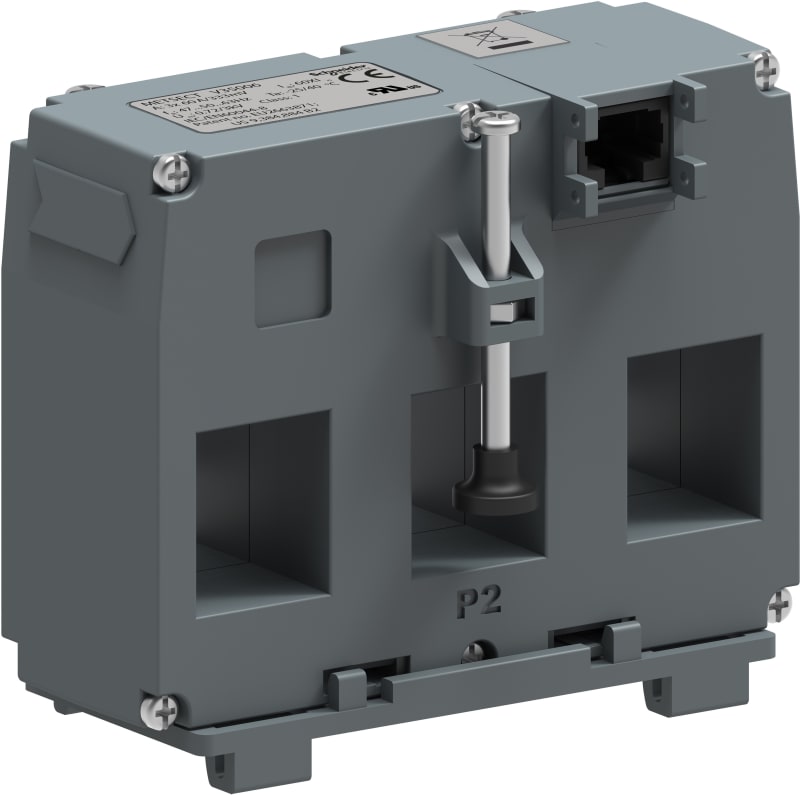

Schneider Electric LVCT - 3-IN-1 solid core CT RJ45 - 35mm entraxe - 160A : 0.333V output METSECTV35016
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric METSECTV35016 LVCT current transformer 35mmCtr 160A:1/3V for PM5310R and PM5320R.
Technical Specifications
- Manufacturer part number (MPN)
- METSECTV35016
- EAN / GTIN
- 3606481279170
- Sales unit
- pcs
- Package quantity
- 27 pcs
- Rated current
- 160 A
- Range
- PowerLogic
- Product or component type
- Current transformer
- Accessory / separate part category
- Measurement accessory
- Range compatibility
- EasyLogic EasyLogic PM2200 PM2210R; EasyLogic EasyLogic PM2200 PM2220R; PowerLogic PowerLogic PM5000 PM5310R; PowerLogic PowerLogic PM5000 PM5320R
- Current transformer type
- Triple solid core
- output voltage
- 0.333 V
- [In] rated current
- 160 A
- Network frequency
- 50 Hz; 60 Hz
- Measurement accuracy
- +/- 0.5 %
- Width
- 105 mm
- Height
- 80 mm
- Depth
- Body : 38 mm; Total : 54 mm
- Distance between centers
- 35 mm
- Opening of bars
- 25 x 21
- Product weight
- 550 g
- Standards
- EN 60044-8; EN 61869-2; UL 61010; IEC 61010
- Product certifications
- CE; UL
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 27
- Country of origin
- GB
- Warranty (in months)
- 18
- Model
- 3-phase current converter set
- Rated primary current
- 160 A
- Calibrated
- No
- With contact protection
- No
- Height opening
- 21 mm
- Width opening
- 25 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 3
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3606481279170
- SAP 1200498921
- Code 82622282
Product Documentation
