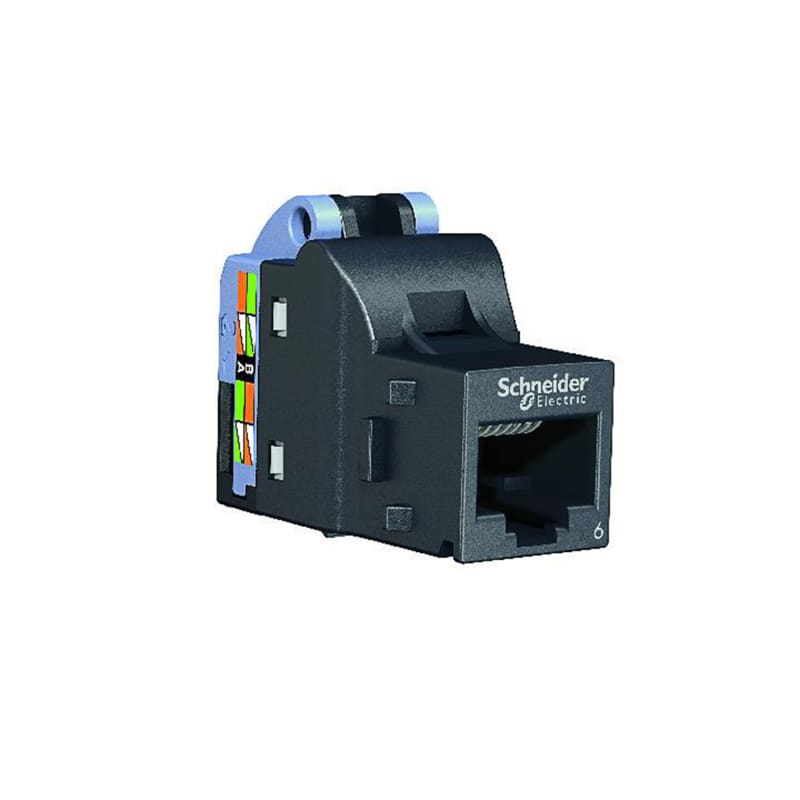

Schneider Electric RJ45 network socket, Actassi, Unshielded, Cat 6, DPM box x 12, dark grey VDIB17716U12

Schneider Electric VDIB17716U12 Actassi S-One unshielded connector DPM category 6 for link class E.

Manufacturer part number (MPN)

VDIB17716U12

EAN / GTIN

3606480384721

Sales unit

pcs

Package quantity

12 pcs

Range

Actassi

product type

RJ45 network socket

Device presentation

Integrated one piece design

Colour tint

Wire organizer: blue (ABS + PC); Connector: dark grey (ABS + PC)

Wiring Colour configuration

568 A/B

Type of packing

Carton

Quantity per set

Set of 12

[In] rated current

1.5 A at 25 °C

voltage proof

1000 V AC/DC peak, between contacts

Contact resistance

20 mOhm

Insulation resistance

Initial insulation resistance: >= 500 MOhm at 100 V DC

AWG gauge

24 AWG...23 AWG

durability

750 cycles

Coupling attenuation

>= 35 dB at 30…100 MHz; >= 75 - 20 x log(f) dB at 100…1000 MHz

contact pins

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Pulling force

50 N during 60 s

Transverse conversion loss

>= 50 dB; >= 68 - 20 x log(f) dB at 1…250000 kHz

Tool type

Without tool

Cable outer diameter

0.9…1.4 mm

compatible LAN cable types

UTP

Communication network category

6

supported applications

1000BASE-T

protocols

VoIP (Voice IP); PoE+ (Power over Ethernet); 4PPoE 100W (Power over Ethernet)

Product compatibility

RJ45 plug

Transmission frequency

0…250 MHz

Type of footprint

S-One DPM

Material

ABS + PC: wire organizer; ABS + PC: connector

Height

28 mm

Length

33 mm

Width

18 mm

Targeted region

Europe

Main colour tint

Dark grey

operational temperature range

-40…70 °C

climatic category

40/070/21 (21 days)

Flame retardance

UL94-V0

Standards

ANSI/TIA-568-C.2; IEC 60603-7-4; ISO/IEC 11801:2011 Ed.2.2; UL 1863; IEC 60512-99-002

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

1008

Warranty (in months)

18

Colour

Grey

Model

Bus (jack)

Screened

No

Category

6

Suitable for round cable

Yes

Suitable for flat cable

No

Suitable for litz wire conductor

No

Suitable for solid conductors

Yes

Type of connector

RJ45 8(8)

Transparent

No

Special tool necessary

No

Min. AWG-size

24

Country of origin

Denmark

HS Code

8536.69
