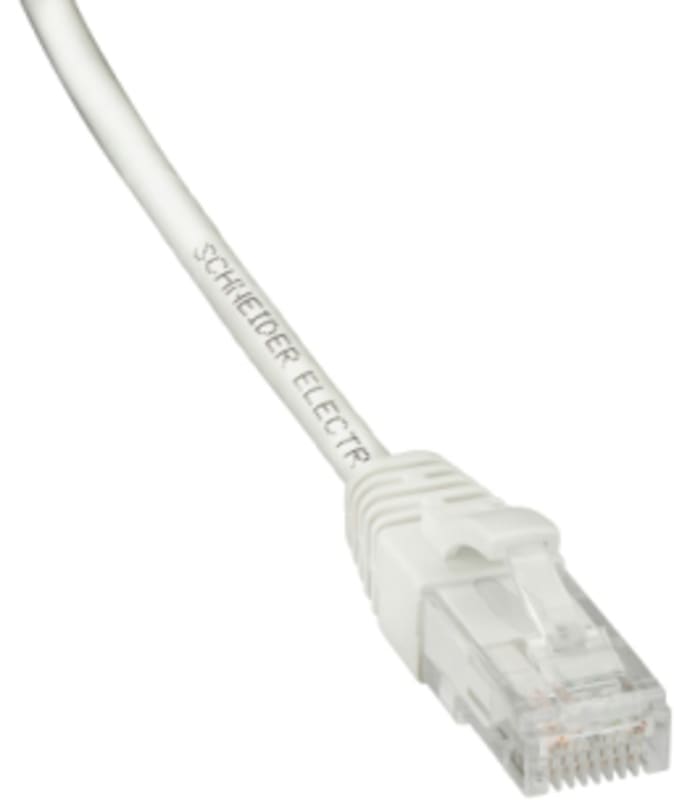

Schneider Electric Patch cord, Actassi, Category 6, U/UTP, LSZH, 5 m, white ACTPC6UULS50WE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPC6UULS50WE Actassi patch cord Cat 6 U/UTP AWG28 halogen-free LSZH, 5 meter, white.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPC6UULS50WE EAN / GTIN: 3606481052209 HS code: 8544.42 Sales unit: pcs Package quantity: 40 pcs range: Actassi product: Patch cord Device application: Communication Colour: White Cable shielding type: U/UTP Type of cable: 4 pair cables length (customizable value in configurator): 5 m Communication network category: 6 Transmission frequency: 250 MHz Contacts material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel AWG gauge: 28 AWG Maximum number of cord per bundle: 24 in cabinet for 4PPoE Type 3 (up to 60 W); 12 in cabinet for 4PPoE Type 4 (up to 90 W) Maximum patch cord cumulated length: 10 m with 84 m 2-point permanent link at 20 °C; 7 m with 90 m 2-point permanent link at 20 °C minimum number of matings: 750 cycles Cable outer diameter: 3.8 mm +/- 0.2 mm material: Copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tin plated copper: braid shield; PE (polyethylene): sheath Flame retardance: LSZH Standards: ISO/IEC 11081-2017 performance; TIA/EIA-568-C.2 performance; EN 50173-2018 performance; IEC 61935-2 performance Number of Units in Package 1: 1 Number of Units in Package 2: 40 Warranty (in months): 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481052209
- SAP 1200537715
- Code 82699944
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric A9F08332 ACTI9 IC60H Miniature Circuit Breaker 3P 32 A, Curve D
Schneider Electric
Schneider Electric Thermal overload relay, TeSys Deca, 690VAC, 0.63 to 1A, 1NO+1NC, class 10A, screw clamp LRD05
Schneider Electric
Schneider Electric Stainless steel wall mounted industrial box, PanelSeT SBX, 150X150X80 mm, IP66 NSYSBX15158
Schneider Electric
Schneider Electric NSYS3D6425P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600X400X250MM, IP66, IK10
Schneider Electric
Schneider Electric XB4BG41 black selector switch Ø22 2-Position stay put 1NO 600V
Schneider Electric
Schneider Electric XB4BG33 Key switch selector, metal, black, Ø22, key n°455, 3 positions, stay put, 2 NO
Schneider Electric
Flat angle LS 100 PV
5576121
Schneider Electric
Schneider Electric ZB4BW333 Harmony XB4 Push-Button Head — Ø22 mm, Green, flush, spring return, illuminated (LED), metal bezel
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ACTPC6UULS50WE?
- ACTPC6UULS50WE can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ACTPC6UULS50WE.
- What is the HS code for ACTPC6UULS50WE?
- The customs tariff (HS) code for ACTPC6UULS50WE is 8544.42.
- Who manufactures ACTPC6UULS50WE?
- ACTPC6UULS50WE is a Schneider Electric product in the Cables & Wiring range.
- Is a datasheet available for ACTPC6UULS50WE?
- Yes — the ACTPC6UULS50WE datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ACTPC6UULS50WE?
- The minimum order quantity is 1.
- Is ACTPC6UULS50WE available?
- Yes — ACTPC6UULS50WE is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
