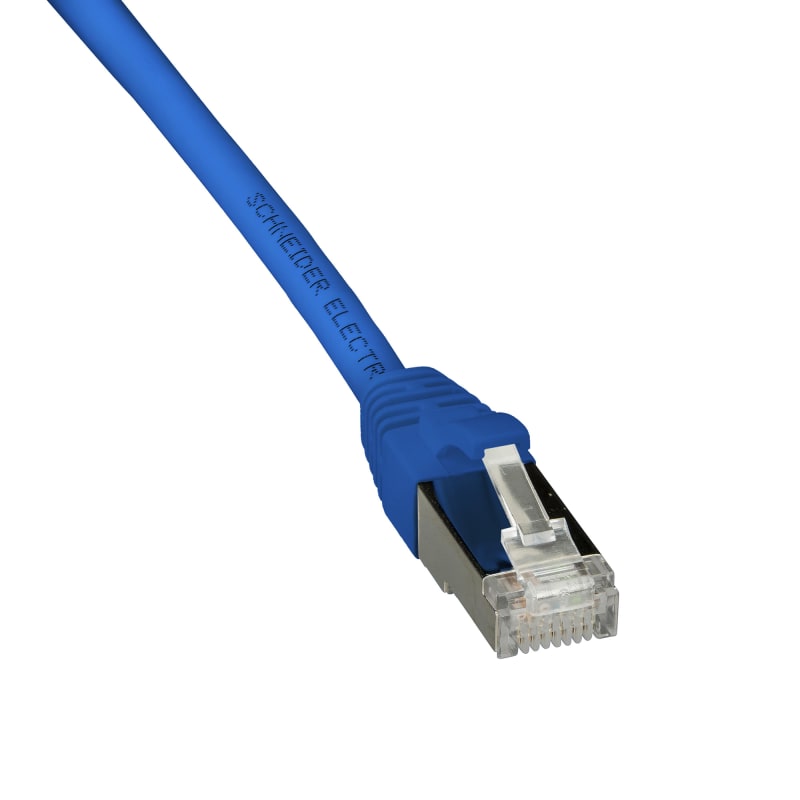

Schneider Electric Patch cord, Actassi, Category 6A, S/FTP, LSZH, 5 m, blue ACTPC6ASFLS50BU
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPC6ASFLS50BU Actassi patch cord Cat 6A S/FTP AWG28 halogen-free LSZH, 5 meter, blue.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPC6ASFLS50BU EAN / GTIN: 3606481051752 HS code: 8544.42 Sales unit: pcs Package quantity: 40 pcs Rated current: 6 A range: Actassi product: Patch cord Device application: Communication Colour: Blue Cable shielding type: S/FTP Type of cable: 4 pair cables length (customizable value in configurator): 5 m Communication network category: 6A Transmission frequency: 500 MHz Contacts material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel AWG gauge: 28 AWG Maximum number of cord per bundle: 48 in cabinet for 4PPoE Type 3 (up to 60 W); 24 in cabinet for 4PPoE Type 4 (up to 90 W) Maximum patch cord cumulated length: 10 m with 84 m 2-point permanent link at 20 °C; 7 m with 90 m 2-point permanent link at 20 °C minimum number of matings: 750 cycles Cable outer diameter: 5.5 mm +/- 0.2 mm material: Copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tin plated copper: braid shield; PE (polyethylene): sheath Flame retardance: LSZH Standards: ISO/IEC 11081-2017 performance; TIA/EIA-568-C.2 performance; EN 50173-2018 performance; IEC 61935-2 performance Warranty (in months): 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481051752
- SAP 1200537684
- Code 82699903
Product Documentation
More from Schneider Electric
Schneider Electric
Patch CORD STP CAT. 6A 0,5M Yellow
ACTPC6ASFLS05YL
Schneider Electric
2-hole combination frame anthracite
WDE003802
Schneider Electric
Schneider Electric standard Network Interface Module STB - Profibus DP - 9.6 kbit/s STBNDP2212
Schneider Electric
2-Way Switch 10A, 2 Modules, Aluminium
NU320330
Schneider Electric

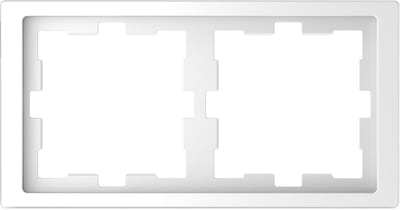

Schneider Electric Cover frame, Merten D-Life, 2 gangs, lotus white MTN4020-6535
Schneider Electric

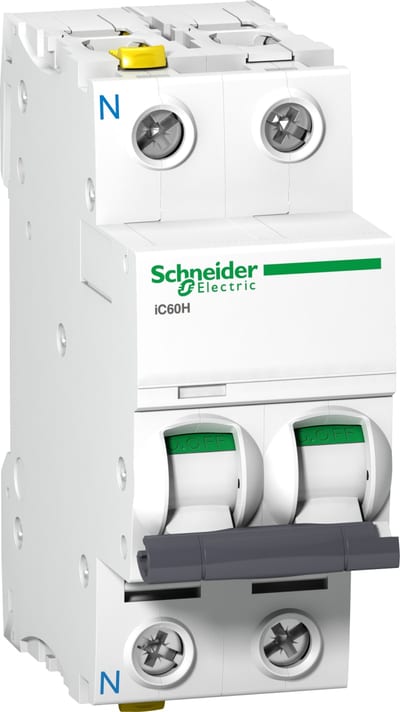

Schneider Electric A9F06613 ACTI9 IC60H Miniature Circuit Breaker 1P+N 13 A, Curve B
Schneider Electric

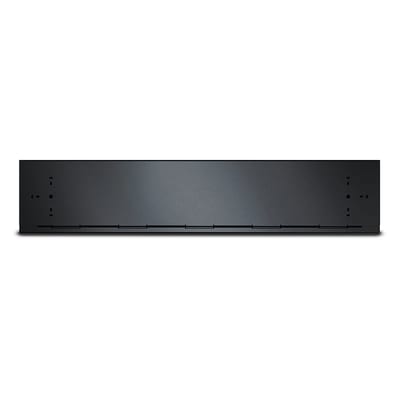

Schneider Electric APC Service Bypass PDU, 230V 16AMP Hardwire SBP3000RMHW
Schneider Electric

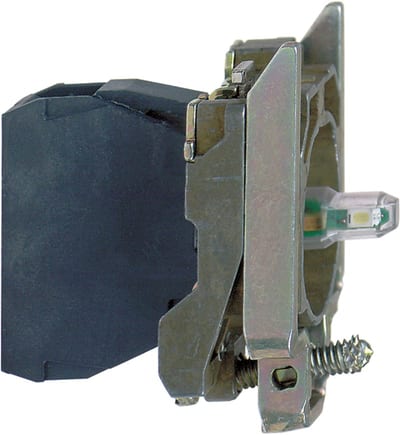

Schneider Electric Complete body/light block assembly, Harmony XB4, metal, universal LED, body/fixing collar, 24…120V AC DC ZB4BVBG1
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ACTPC6ASFLS50BU?
- ACTPC6ASFLS50BU can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ACTPC6ASFLS50BU.
- What is the HS code for ACTPC6ASFLS50BU?
- The customs tariff (HS) code for ACTPC6ASFLS50BU is 8544.42.
- Who manufactures ACTPC6ASFLS50BU?
- ACTPC6ASFLS50BU is a Schneider Electric product in the Cables & Wiring range.
- Is a datasheet available for ACTPC6ASFLS50BU?
- Yes — the ACTPC6ASFLS50BU datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ACTPC6ASFLS50BU?
- The minimum order quantity is 1.
- Is ACTPC6ASFLS50BU available?
- Yes — ACTPC6ASFLS50BU is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
