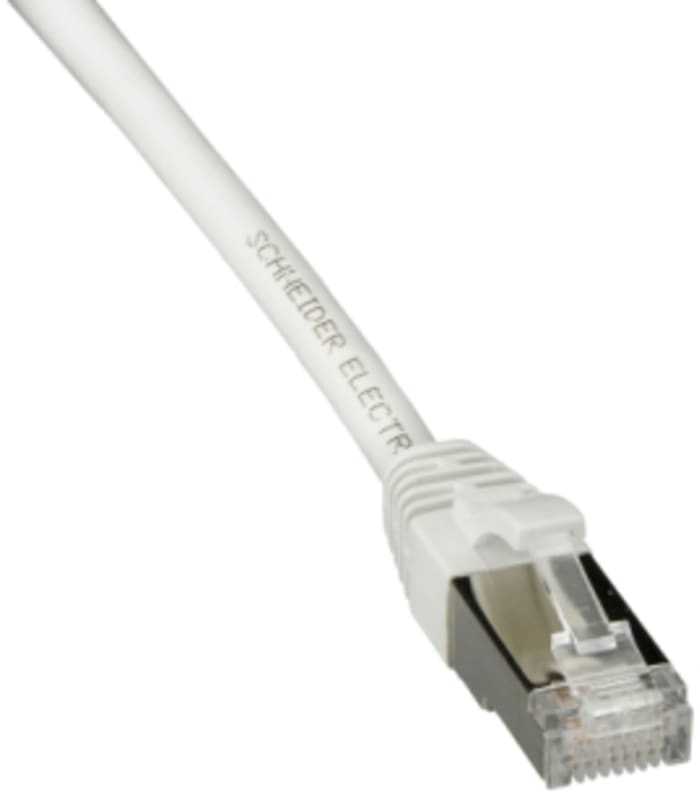

Schneider Electric Patch cord, Actassi, Category 6A, S/FTP, LSZH, 2 m, white ACTPC6ASFLS20WE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPC6ASFLS20WE Actassi patch cord Cat 6A S/FTP AWG28 halogen-free LSZH, 2 meter, white.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPC6ASFLS20WE EAN / GTIN: 3606481051684 HS code: 8544.42 Sales unit: pcs Package quantity: 44 pcs Rated current: 6 A range: Actassi product: Patch cord Device application: Communication Colour: White Cable shielding type: S/FTP Type of cable: 4 pair cables length (customizable value in configurator): 2 m Communication network category: 6A Transmission frequency: 500 MHz Contacts material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel AWG gauge: 28 AWG Maximum number of cord per bundle: 48 in cabinet for 4PPoE Type 3 (up to 60 W); 24 in cabinet for 4PPoE Type 4 (up to 90 W) Maximum patch cord cumulated length: 10 m with 84 m 2-point permanent link at 20 °C; 7 m with 90 m 2-point permanent link at 20 °C minimum number of matings: 750 cycles Cable outer diameter: 5.5 mm +/- 0.2 mm material: Copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tin plated copper: braid shield; PE (polyethylene): sheath Flame retardance: LSZH Standards: ISO/IEC 11081-2017 performance; TIA/EIA-568-C.2 performance; EN 50173-2018 performance; IEC 61935-2 performance Warranty (in months): 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481051684
- SAP 1200537722
- Code 82699919
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive, ATV320, 4 kW, 380…500 V, 3 phases, book ATV320U40N4B
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NS800N, 50KA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 800A C080N420FM
Schneider Electric
Schneider Electric TRV00870 RJ45 double connector, female-female, set of 5 parts
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250N, 50KA/415VAC, 3 poles, TMD trip unit 250A C25N3TM250
Schneider Electric
Schneider Electric XB4BG21 Key switch selector, metal, black, Ø22, key n°455, 2 positions, stay put, 1 NO
Schneider Electric
Schneider Electric ZB5AZ101 Single contact block with body/fixing collar, plastic, screw clamp terminal,1 NO
Schneider Electric
Ceiling cover TED-TT
IMT36312
Schneider Electric
Sealed Front plate 3MODULES PrismaSeT G/P
LVS03803
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ACTPC6ASFLS20WE?
- ACTPC6ASFLS20WE can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ACTPC6ASFLS20WE.
- What is the HS code for ACTPC6ASFLS20WE?
- The customs tariff (HS) code for ACTPC6ASFLS20WE is 8544.42.
- Who manufactures ACTPC6ASFLS20WE?
- ACTPC6ASFLS20WE is a Schneider Electric product in the Cables & Wiring range.
- Is a datasheet available for ACTPC6ASFLS20WE?
- Yes — the ACTPC6ASFLS20WE datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ACTPC6ASFLS20WE?
- The minimum order quantity is 1.
- Is ACTPC6ASFLS20WE available?
- Yes — ACTPC6ASFLS20WE is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
